2-power 2P-B133XTN01.6 HW1A - 33,8 cm (13,3") - WXGA

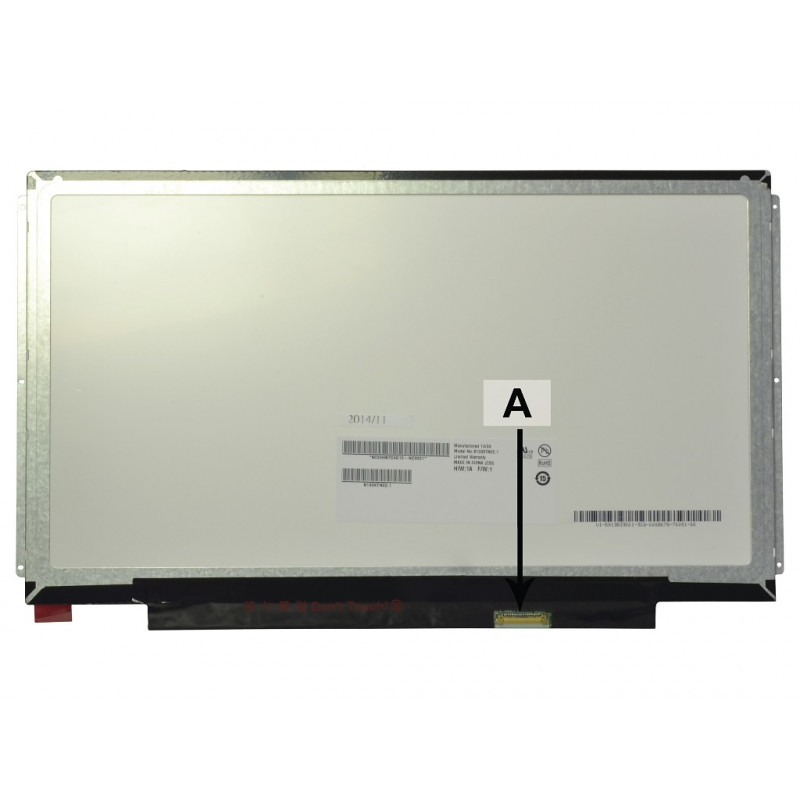

A cracked or dim laptop screen can cripple productivity, but replacing it doesn't have to be complicated. The 2-POWER 2P-B133XTN01.6 HW1A is a direct-fit 13.3-inch WXGA display panel that restores crisp visuals to compatible notebooks. Engineered as a reliable substitute for the AUO B133XTN01.6, this panel delivers the exact resolution, brightness, and connector layout your system expects—no firmware tweaks or driver headaches.

Who is it for

This panel is ideal for IT technicians, repair shops, and DIY upgraders who need a dependable replacement screen for laptops originally equipped with a 13.3-inch WXGA TN panel. It suits users who prioritize straightforward installation and consistent performance over high-end display features like wide viewing angles or high color accuracy.

Main features

• 13.3-inch diagonal (33.8 cm) with WXGA resolution (1366 x 768) for sharp text and clear images
• TN (Twisted Nematic) panel with WLED backlight for energy-efficient brightness
• Glossy surface finish enhances color vibrancy and contrast in controlled lighting
• 30-pin eDP connector ensures seamless integration with compatible motherboards
• Standard 60 Hz refresh rate and 8 ms response time handle everyday tasks smoothly
• Top and bottom mounting brackets allow secure installation in the original chassis

Specifications

• Screen Size: 13.3 inches (33.8 cm)
• Resolution: WXGA (1366 x 768)
• Aspect Ratio: 16:9
• Panel Type: TN
• Backlight Type: WLED
• Surface Finish: Glossy
• Data Connector: 30 Pin eDP
• Refresh Rate: 60 Hz
• Brightness (Typical): 200 cd/m²
• Contrast Ratio (Typical): 400:1
• Viewing Angles (L/R/U/D): 45°/45°/15°/35°
• Response Time (Typical): 8 ms
• Color Gamut (Typical): 45% NTSC
• Compatibility: AUO B133XTN01.6 and equivalent models
• Condition: New
• Mounting Type: Top and Bottom Brackets

Tips

Before ordering, confirm your original screen's model number and connector type. Handle the panel by its edges and avoid touching the surface to prevent fingerprints or damage. For best results, install in a dust-free environment and test the display before fully reassembling the laptop.
