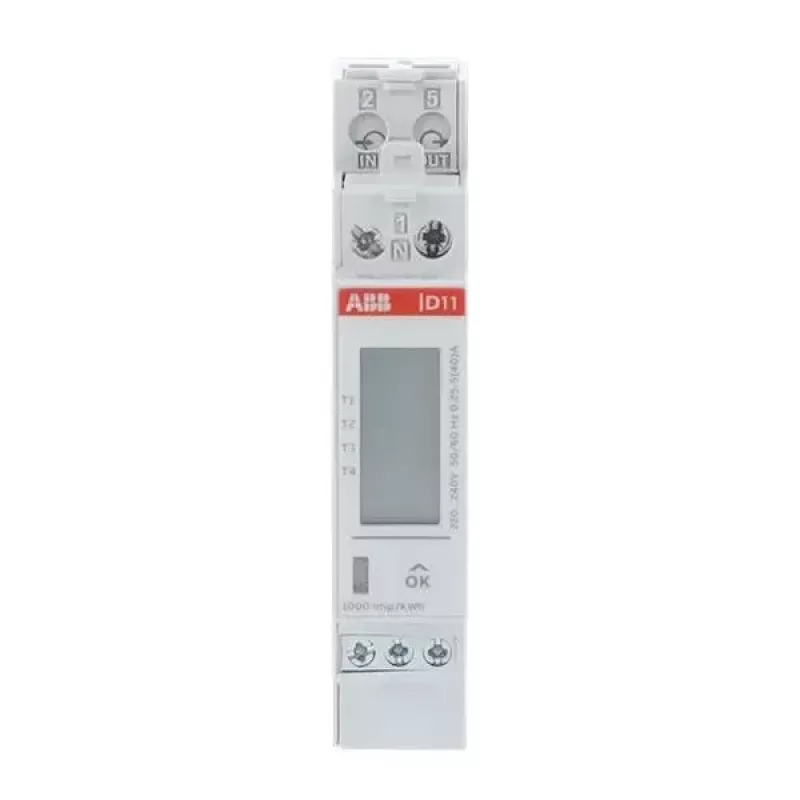

ABB D11 15-M 40 Contador de energía monofásico 40A MID 1DO+1DI 2CMA241645R1000

Single-phase direct-connected energy meter with a maximum current of 40 A, featuring one configurable digital output and one digital input for tariff control or pulse counting. Its MID certification ensures billing-grade accuracy for sub-metering applications.

Advantages

Class B accuracy (EN 50470-3) provides reliable measurement for energy management. The compact 1-module DIN rail design saves space in distribution boards. The backlit LCD offers clear reading even in low light.

Suitable for

• Residential and commercial sub-metering
• Energy monitoring in building management systems
• Tariff switching via digital input

Key specifications

• Nominal voltage: 230 V AC (L-N)
• Maximum current: 40 A
• Frequency: 50/60 Hz
• Accuracy class: B (active energy)
• Digital outputs: 1 (pulse or alarm)
• Digital inputs: 1
• Display: LCD with backlight
• Mounting: DIN rail (1 module)
• Protection degree: IP51 front, IP20 terminals
• Operating temperature: -40 to +70 °C

Recommendations

For accurate and reliable single-phase energy measurement in compact installations, this meter offers a cost-effective solution with MID compliance.
