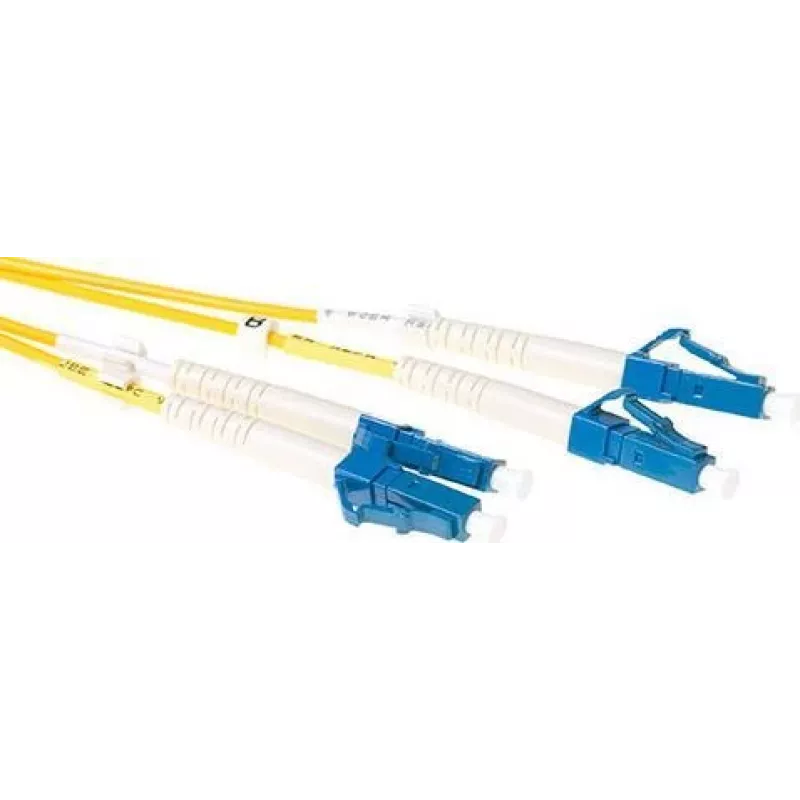

ACT 0,25m LSZH Singlemode OS2 Duplex LC Cable de fibra óptica LC RL9952

With a 0.25-meter length and 9/125 µm OS2 singlemode core, this duplex LC-to-LC patch cable delivers low insertion loss and high return loss for data center, LAN, telecommunications, and FTTH links.

Overview

The ACT RL9952 is a fiber optic patch cable with LC connectors on both ends, configured as duplex. It uses OS2 singlemode fiber with a 9/125 µm core/cladding diameter, optimized for 1310 nm and 1550 nm wavelengths. The LSZH jacket is yellow for easy identification and meets low-smoke zero-halogen requirements.

What stands out

• Duplex LC connectors for bidirectional transmission
• OS2 singlemode fiber supports long-distance links
• LSZH jacket reduces toxic smoke in case of fire
• Compact 0.25 m length for high-density patching

Technical details

• Cable length: 0.25 m
• Fiber type: 9/125 µm OS2 singlemode
• Connectors: LC to LC, duplex
• Jacket material: LSZH
• Jacket colour: Yellow
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Operating temperature: -20°C to 70°C

Our verdict

A reliable short-length singlemode patch cable for clean, high-density fiber connections.
