ACT 10 metros cable óptico activo DisplayPort conector DisplayPort - conector DisplayPort

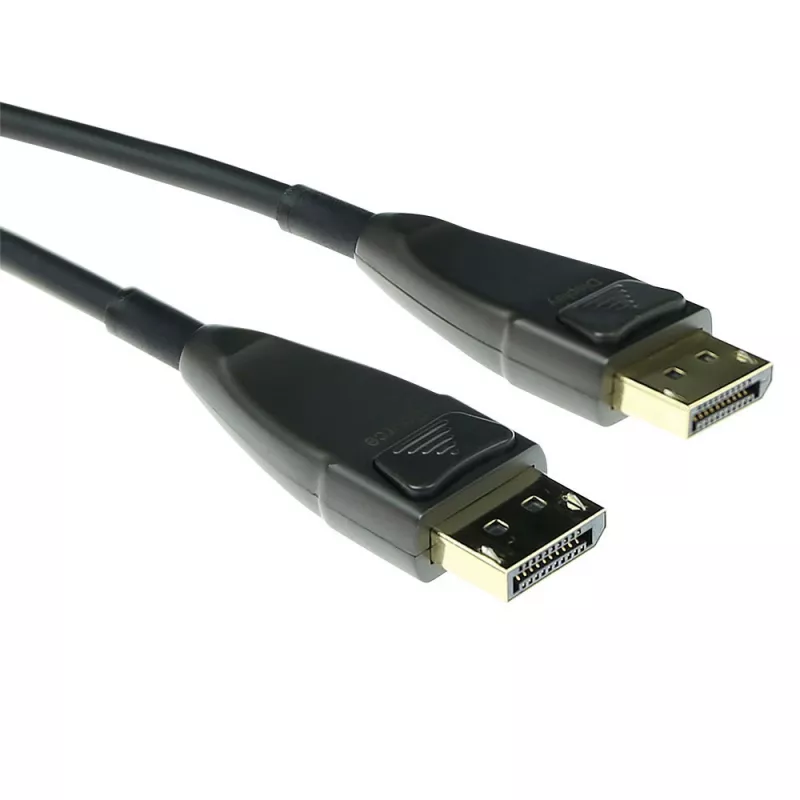

The ACT DisplayPort Active Optical Cable (AOC) AK4030 combines multimode optical fiber and copper conductors to transmit DisplayPort signals over long distances with minimal signal loss. This 10-meter cable features male DisplayPort connectors on both ends and supports DisplayPort 1.2a features, making it suitable for connecting monitors, projectors, graphics cards and other DisplayPort-equipped devices where a reliable long-reach connection is required.

Advantages

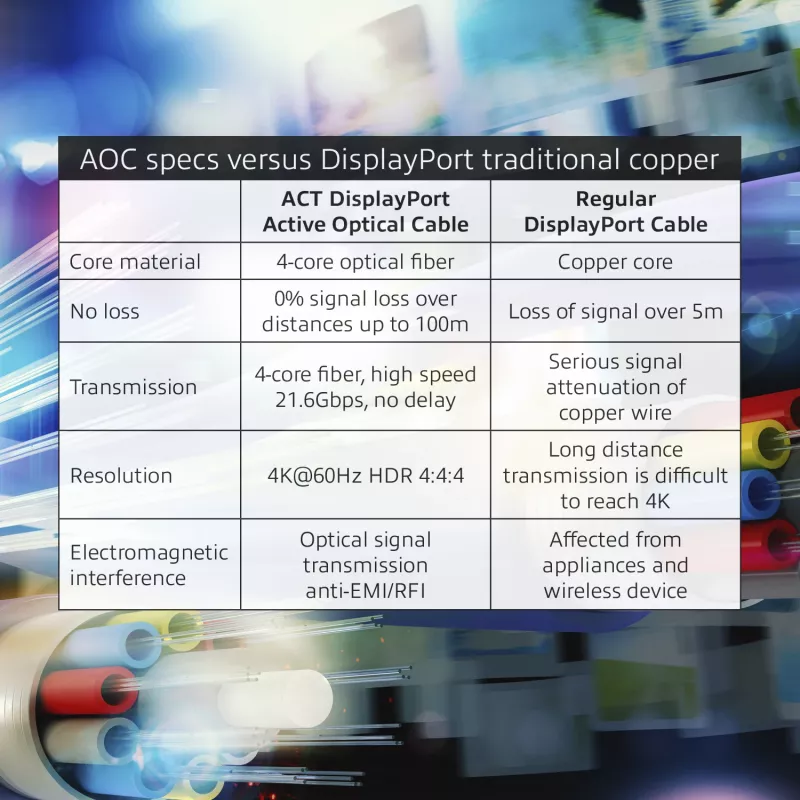

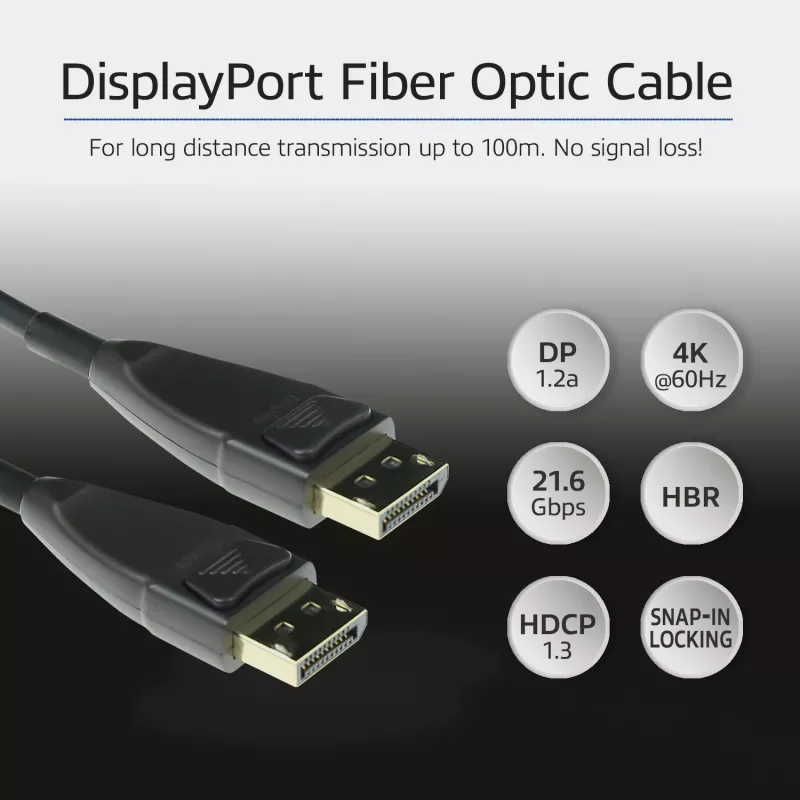

The hybrid cable design uses optical fiber for the main video/data path and copper for AUX and hot-plug channels, enabling transmission up to 100 m in the product family while maintaining high bandwidth. It supports 4K@60Hz 4:4:4, HDCP 1.1 and HDCP 1.3, HBR up to 5.4 Gbps per lane with a total bandwidth of 21.6 Gbps. The cable is supplied on a coil, is flexible, easy to route and is plug-and-play with no additional drivers required.

Suitable for

Key specifications

How to use

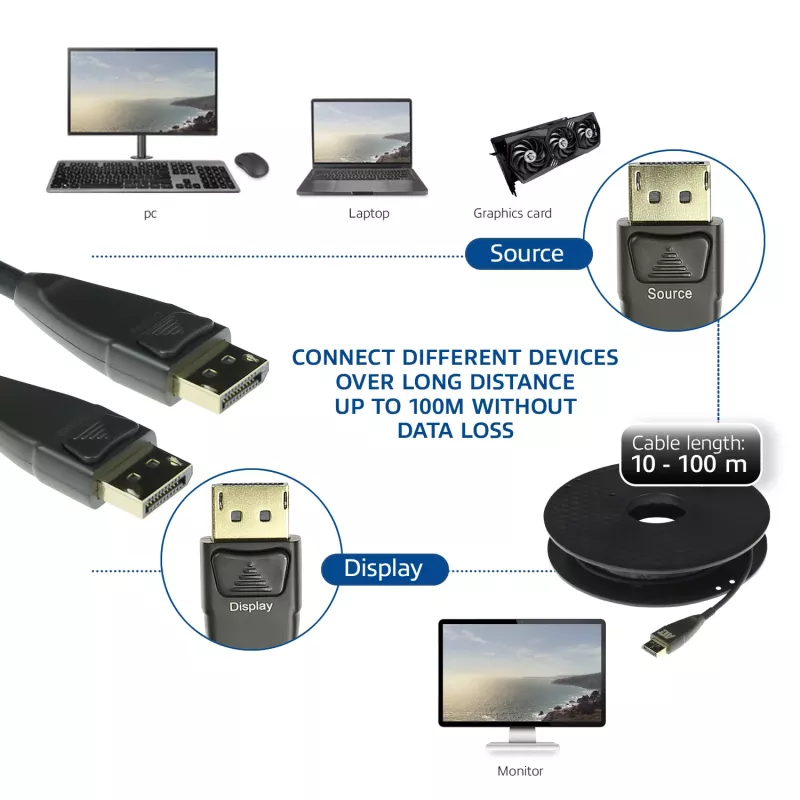

Connect one DisplayPort male connector to the source device (for example a graphics card or laptop) and the other DisplayPort male connector to the display device (monitor, projector). Ensure connectors are fully inserted and the display input is set to the correct DisplayPort source. The cable requires no external power or drivers; AUX and hot-plug channels are carried over the copper conductors while the main video signal travels through the optical fiber.

Recommendations

For best performance, avoid tight bends near the connectors and maintain the minimum bend radius specified by the manufacturer; route the cable away from strong mechanical stress and sharp edges. When using long runs in professional installations, verify display and GPU settings for 4K@60Hz 4:4:4 and enable HDCP if required by the content.
