ACT 30 metros cable de conexión de fibra óptica LSZH monomodo 9/125 OS2 dúplex con conectores LC

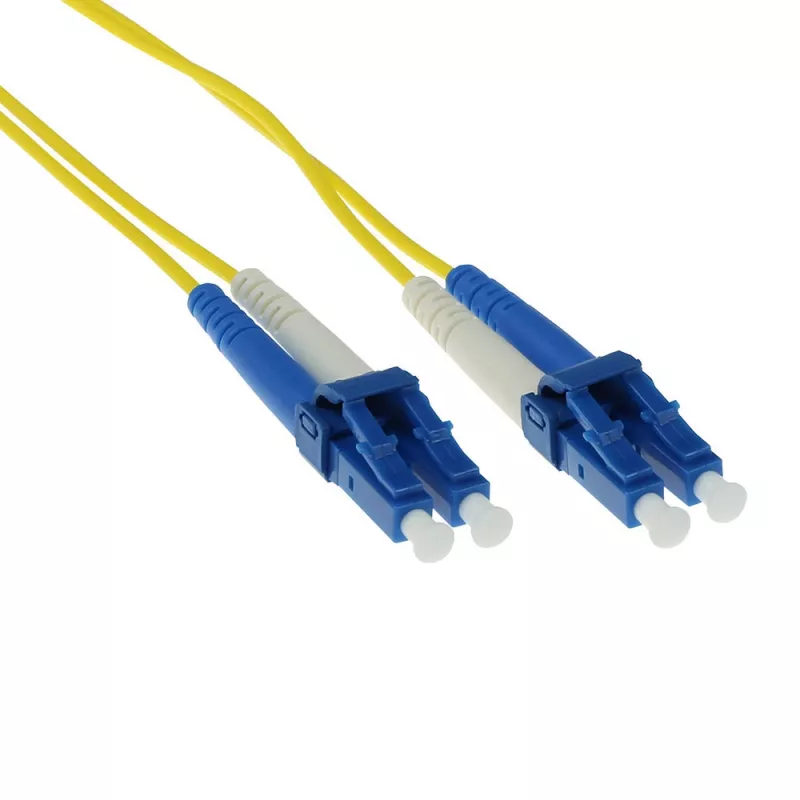

Fiber Patch Cable Duplex LC 30m ACT RL9930 is a 30-meter duplex singlemode fiber patch cable with LC–LC connectors. The cable uses 9/125 µm OS1 core construction and a 2 x 3 mm diameter, with a PVC sheath. It is intended for singlemode network links requiring long-distance, low-loss connections and comes in yellow to indicate singlemode use.

Advantages

The duplex LC connectors provide reliable mating performance and compact connector size. The 9/125 µm OS1 core ensures low attenuation for singlemode transmission. A 30 m length offers installation flexibility, and the yellow jacket follows industry colour coding for easy identification. The PVC sheath gives mechanical protection for indoor routing.

Suitable for

• Singlemode indoor network interconnects
• Data centre patching between racks and equipment
• Telecommunications and backbone links over short to medium distances
• Optical equipment testing and temporary installations

Key specifications

• Type: Duplex singlemode patch cable
• Connectors: LC — LC (duplex)
• Core: 9/125 µm OS1
• Diameter: 2 x 3 mm
• Sheath material: PVC
• Colour: Yellow
• Length: 30.00 m
• Brand: ACT, MPN: RL9930, EAN: 8716065227550

How to use

Route the cable carefully to avoid tight bends and mechanical strain; maintain the manufacturer’s minimum bend radius for 9/125 µm fiber. Clean LC connector endfaces before connection using appropriate fiber cleaning tools. Insert LC connectors into compatible duplex LC ports until they click. For permanent installations, secure the cable with appropriate ties or cable management to prevent movement and microbends.

Recommendations

Suitable for indoor singlemode installations; avoid exposure to prolonged outdoor weathering. If fire-safety low-smoke zero-halogen performance is required, confirm material specification (LSZH) before installation — the product listing indicates PVC sheath for this variant.
