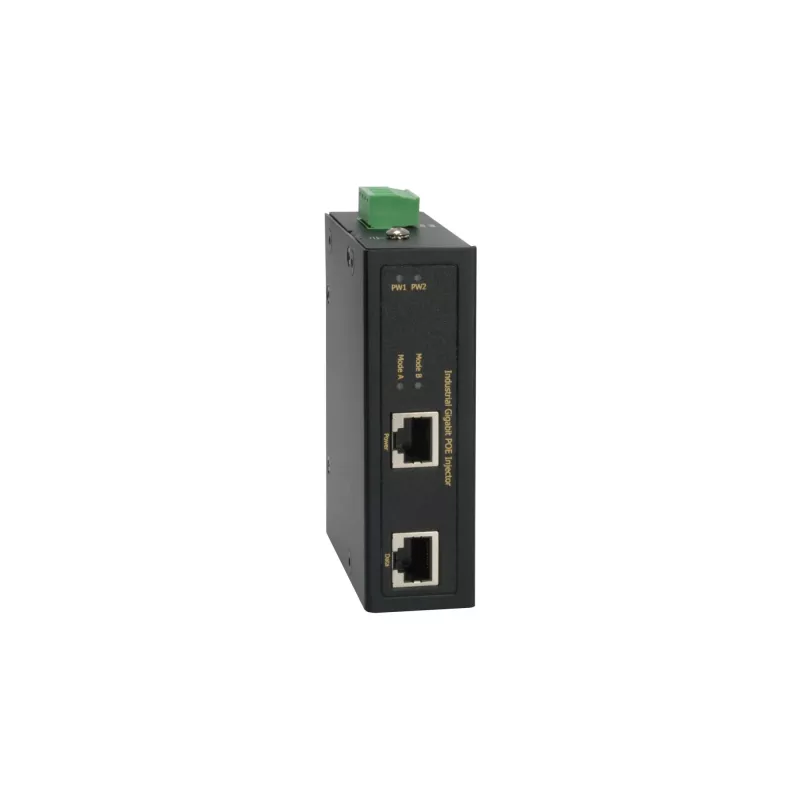

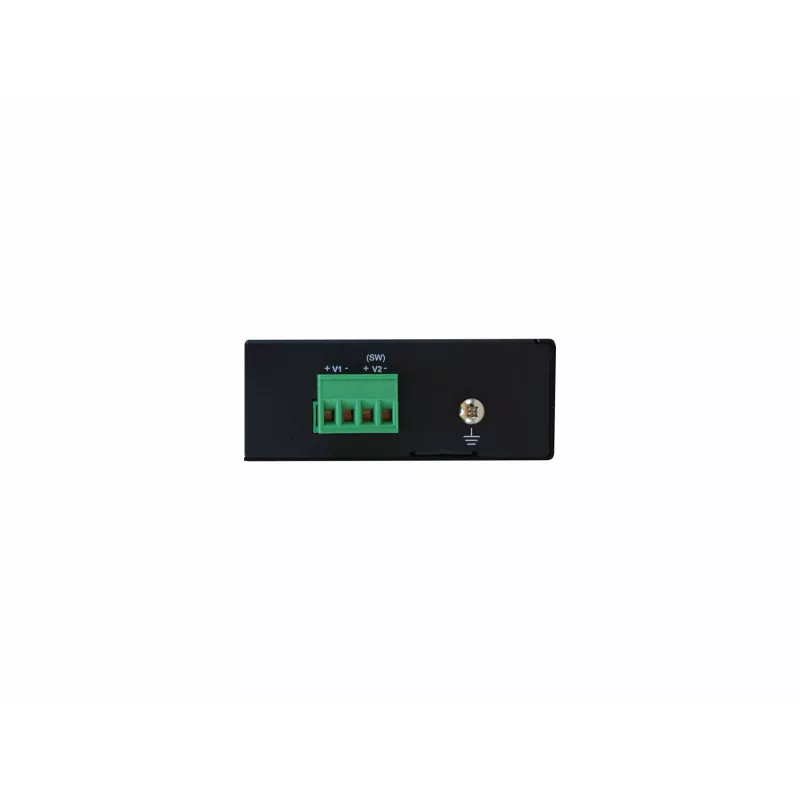

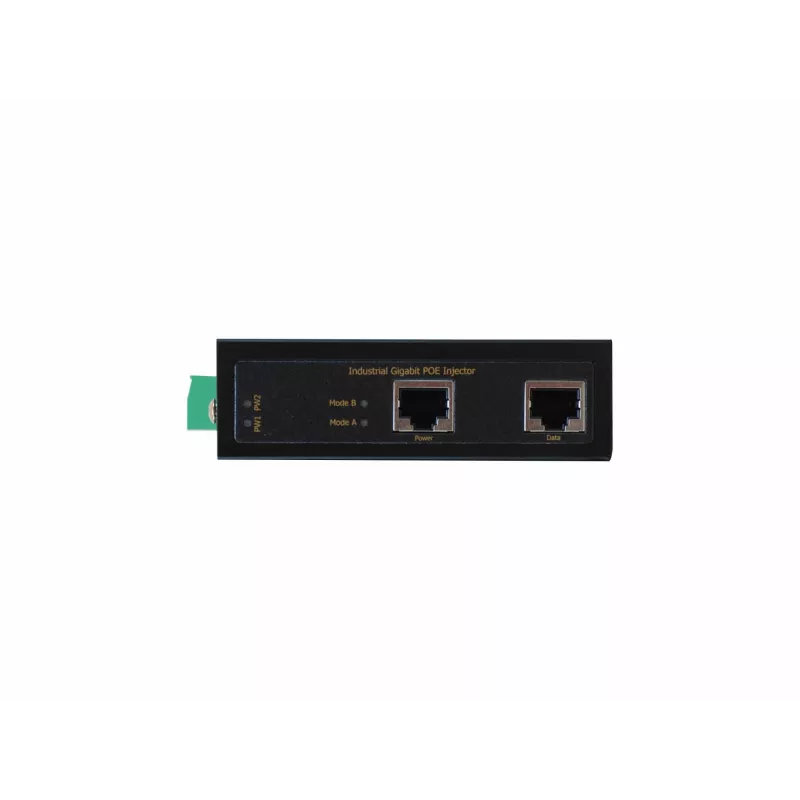

Adaptador PoE LevelOne IGP-0102 Gigabit Ethernet

The LevelOne IGP-0102 PoE adapter is a Gigabit Ethernet Power over Ethernet injector that conforms to IEEE 802.3 standards. It supplies network data at up to 1000 Mbit/s while delivering up to 36 W of power per port over a single Ethernet cable, enabling deployment of powered devices on existing LAN infrastructure. The compact black unit includes LED indicators for link status, supports an input voltage range of 15–56 V and can operate over cable runs up to 100 m.

Advantages

The IGP-0102 provides a cost-effective and space-saving solution for powering devices without additional electrical wiring. It supports gigabit data rates while combining power and data on the same cable, offers LED status indicators for quick diagnostics, and its small form factor simplifies installation in constrained locations.

Suitable for

• Powering PoE-enabled devices such as IP cameras and VoIP phones
• Supplying power to wireless access points when used with PoE splitters
• Deployments where outlets or local electrical wiring are unavailable (ceilings, poles, remote cabinets)

Key specifications

• Standard: IEEE 802.3 (PoE)
• Data rate: 1000 Mbit/s (Gigabit Ethernet)
• Power output: up to 36 W per port
• Maximum cable distance: 100 m
• Input voltage: 15–56 V
• Ethernet ports: 2 x RJ-45
• Product colour: Black
• Weight: 0.14 kg

How to use

Connect the IGP-0102 to your existing network switch or router using the data input port, and plug the powered-device into the PoE output port with a standard Ethernet cable. Ensure the injector receives appropriate DC input voltage within the 15–56 V range. Verify link and power delivery using the LED indicators. For non‑PoE devices, use a compatible PoE splitter at the device end to separate power and data into two cables.

Recommendations

Place the PoE adapter in a well-ventilated area and avoid exposure to moisture. Use quality Cat5e or better Ethernet cabling and keep cable runs under 100 m to maintain stable power and gigabit performance.
