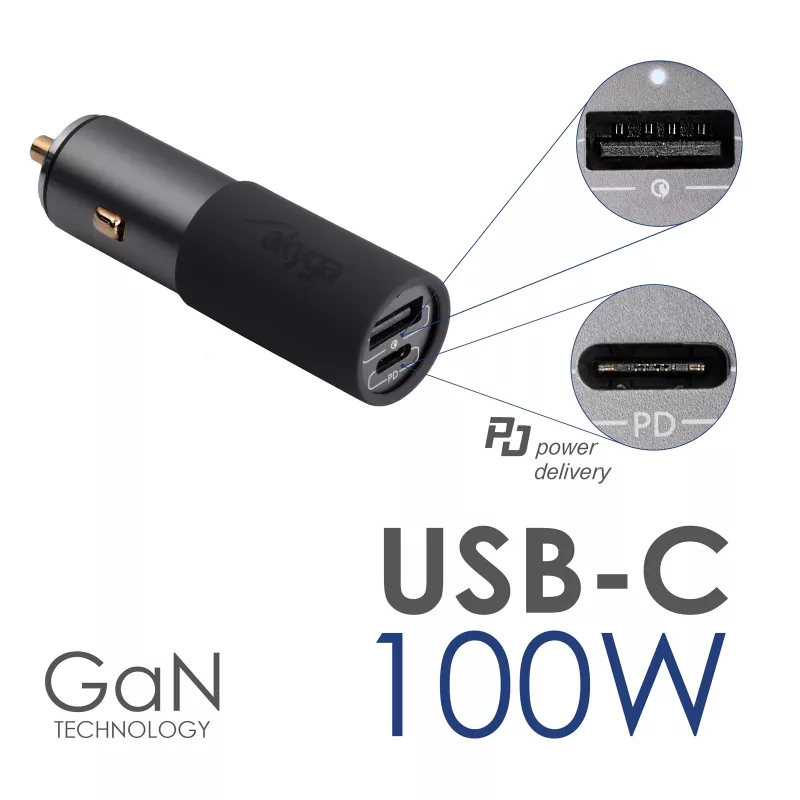

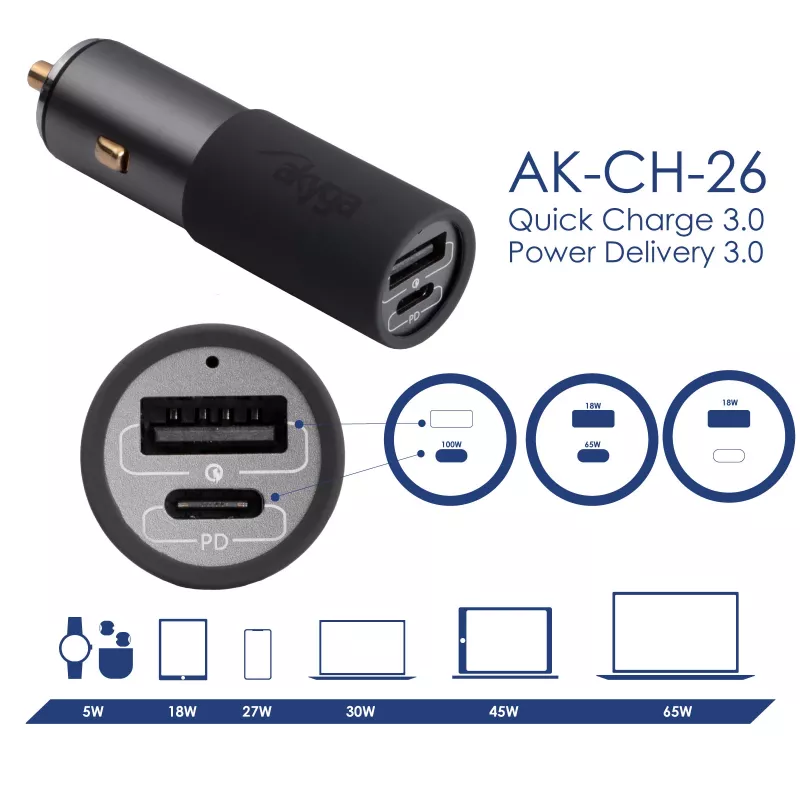

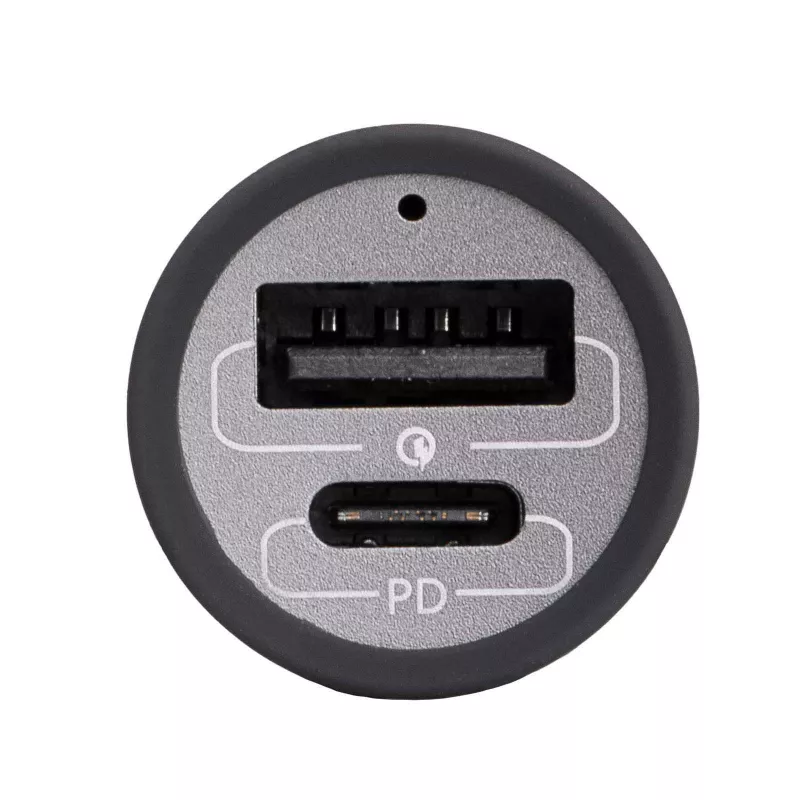

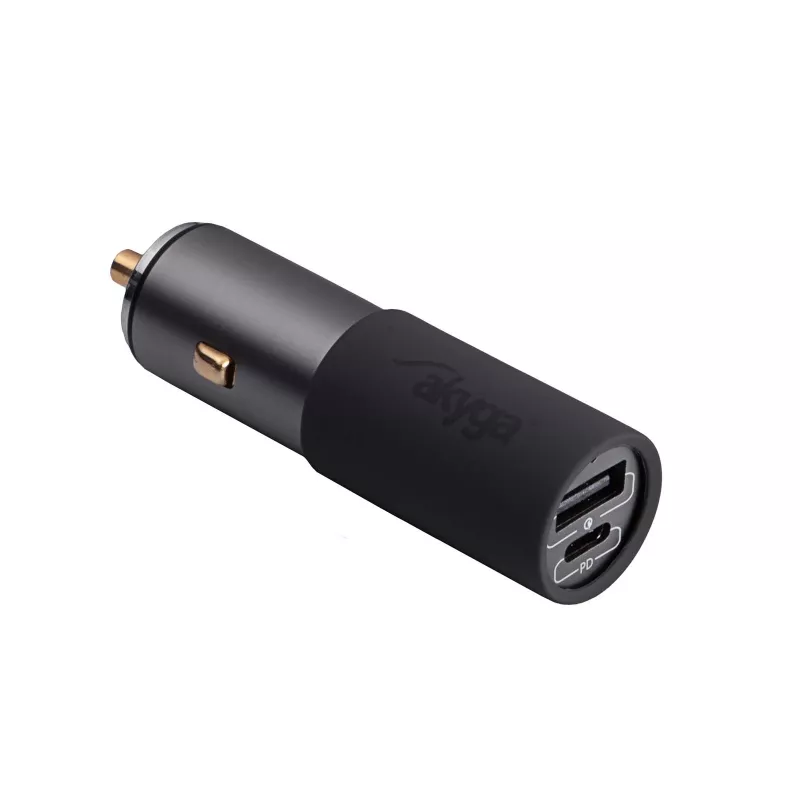

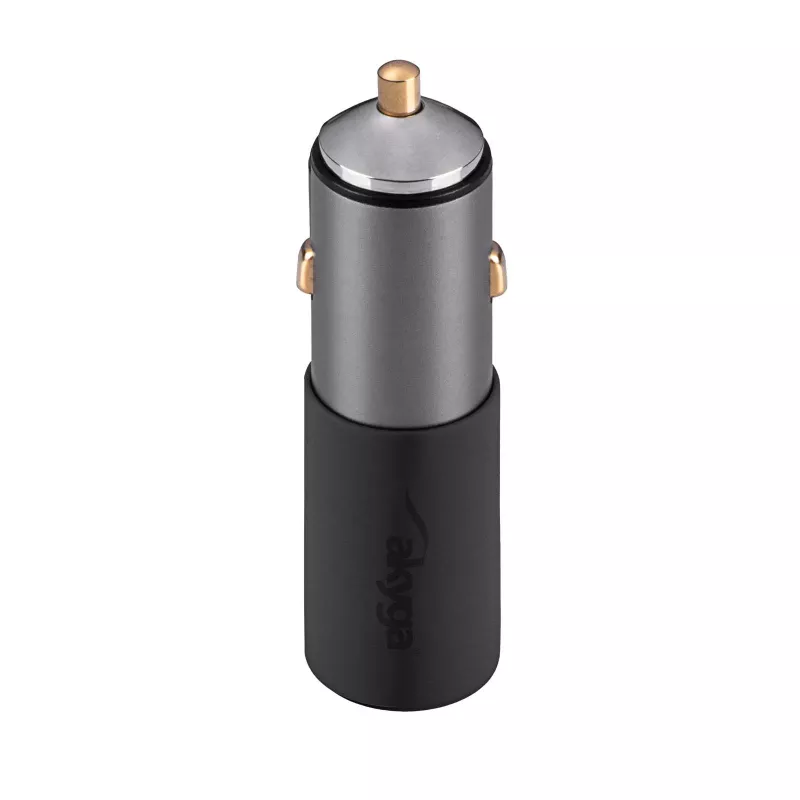

Akyga AK-CH-26 Cargador GaN para coche 12/24 V, 100 W, USB-C PD 3.0 + USB-A QC 3.0, gris

The Akyga AK-CH-26 is a GaN car charger designed for fast charging of mobile devices while driving. It operates at 12/24 V DC and delivers up to 100 W via its USB-C port, with an additional USB-A port for charging a second device.

Key features

• GaN technology for high performance in a compact size
• USB-C port supports Power Delivery 3.0 (max. 100 W)
• USB-A port supports Quick Charge 3.0 (max. 18 W)
• Simultaneous charging of two devices
• Protection against over-voltage, over-current, short-circuit and over-temperature
• Suitable for 12 V and 24 V systems

Specifications

• Product type: Car Charger
• Brand: Akyga
• MPN: AK-CH-26
• Product colour: Grey
• Material: ABS
• Input voltage: 12/24 V DC
• Input current: max. 4.5 A
• Output voltage: 5-20 V
• Rated current: 1.5-5 A
• Output power: 100 W (USB-C) or 65 W + 18 W (USB-C + USB-A)
• USB-C (PD 3.0): 5 / 9 / 12 / 15 / 20 V, 5 A, max. 100 W
• USB-A (QC 3.0): 5 V / 4.5 A, 9 V / 2 A, 12 V / 1.5 A, max. 18 W
• Fast charging: Yes (Power Delivery 3.0, Quick Charge 3.0)
• Technical features: GaN
• Protections: Over-voltage, Over-current, Short-circuit, Over-temperature
• Operating temperature: 5 - 50 °C
• MTBF: 100000 h
• Dimensions (L x W x H): 22.5 x 22.5 x 80 mm
• Weight: 36 g
• Certification: CE, FCC, RoHS, REACH
