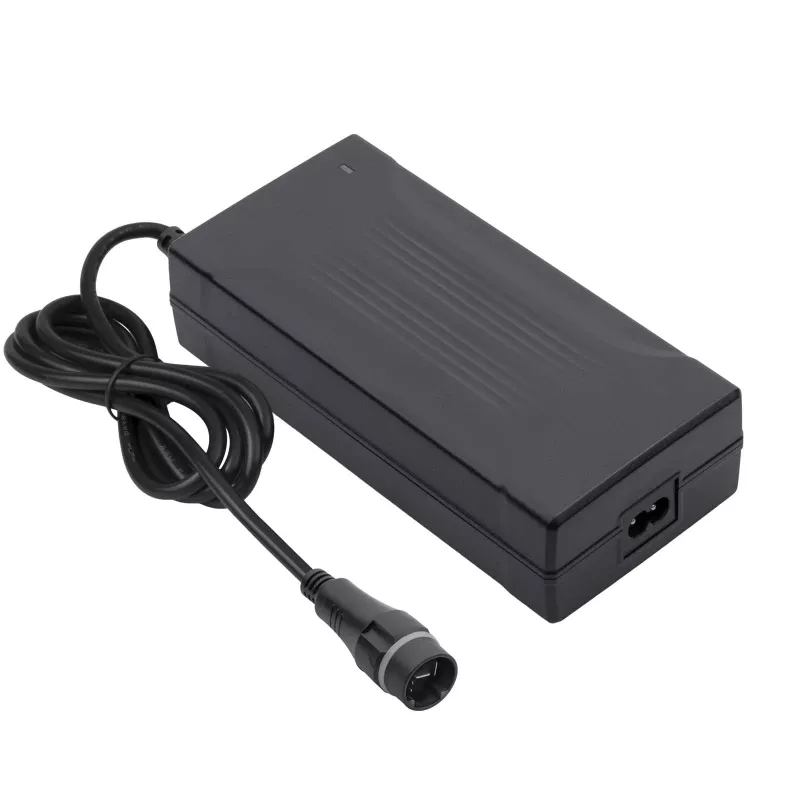

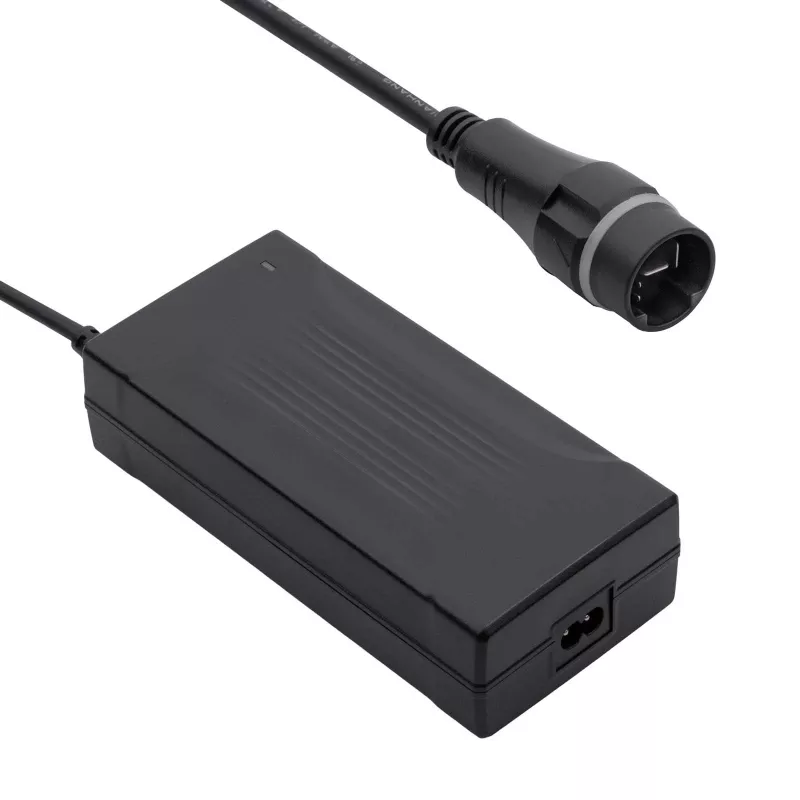

Akyga AK-EV-26 Cargador 42V/4A 168W Yamaha 1,2m

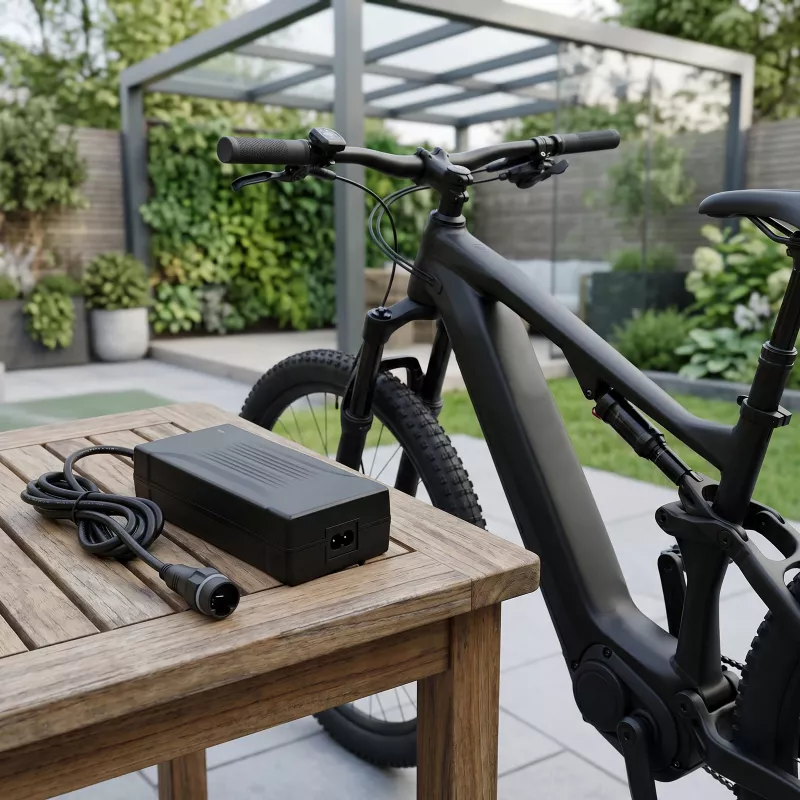

The Akyga AK-EV-26 is a charger for electric bikes with a Yamaha Intube 500Wh battery. It serves as a replacement for the PASC9 and X1R-82107-10 / X1R 82107 chargers. With a 1.2 m cable and an 8-pin power cable, it is suitable for everyday charging at home, in the garage or at a service centre.

Key features

• Replacement for Yamaha PASC9 and X1R 82107 chargers

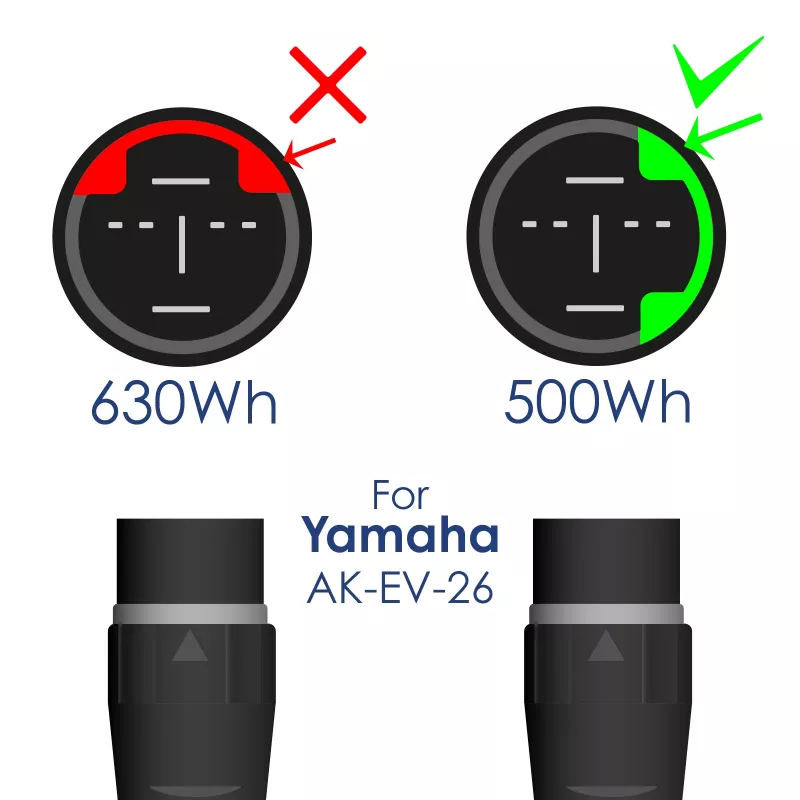

• Compatible with Yamaha Intube batteries, including Yamaha Intube 500Wh
• May also be suitable for selected Yamaha, Haibike and Winora bikes, and other e-bikes using a Yamaha-compatible power system
• Protection against overvoltage, overload, overheating and short circuits
• 1.2 m cable

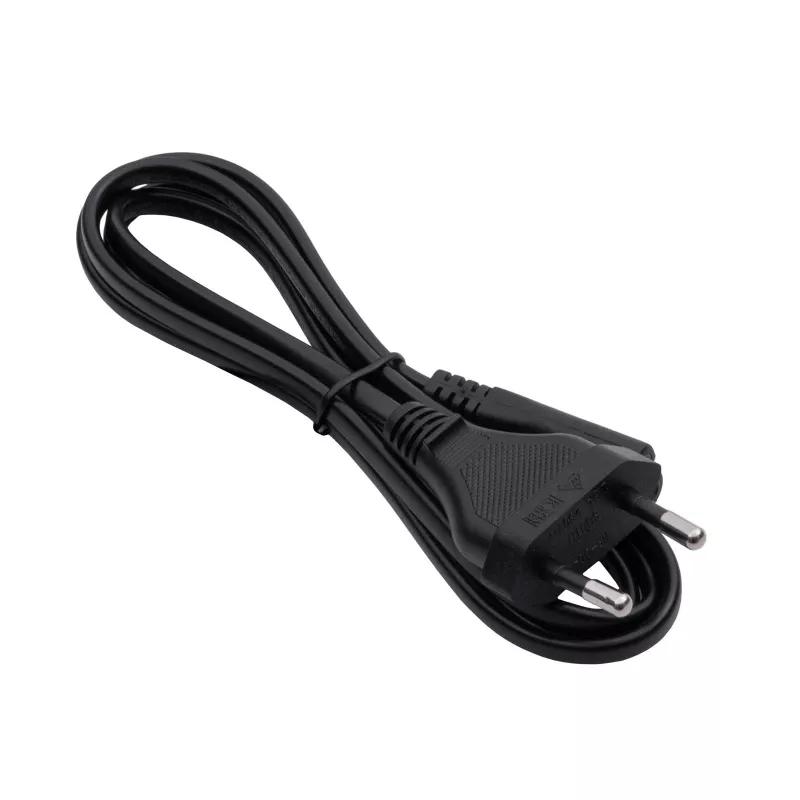

• Includes an 8-pin power cable

Specifications

• Brand: Akyga
• MPN: AK-EV-26
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 1.1 A
• Efficiency: > 80 %
• Output voltage: 42 V
• Output amperage: 4 A
• Maximum power: 168 W
• Outlet cord length: 1.2 m

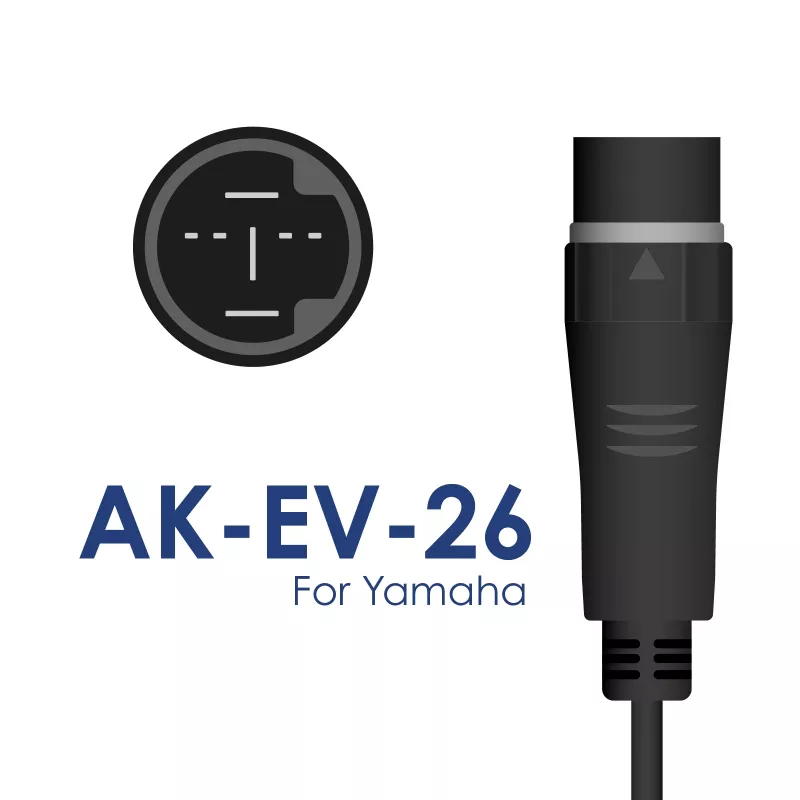

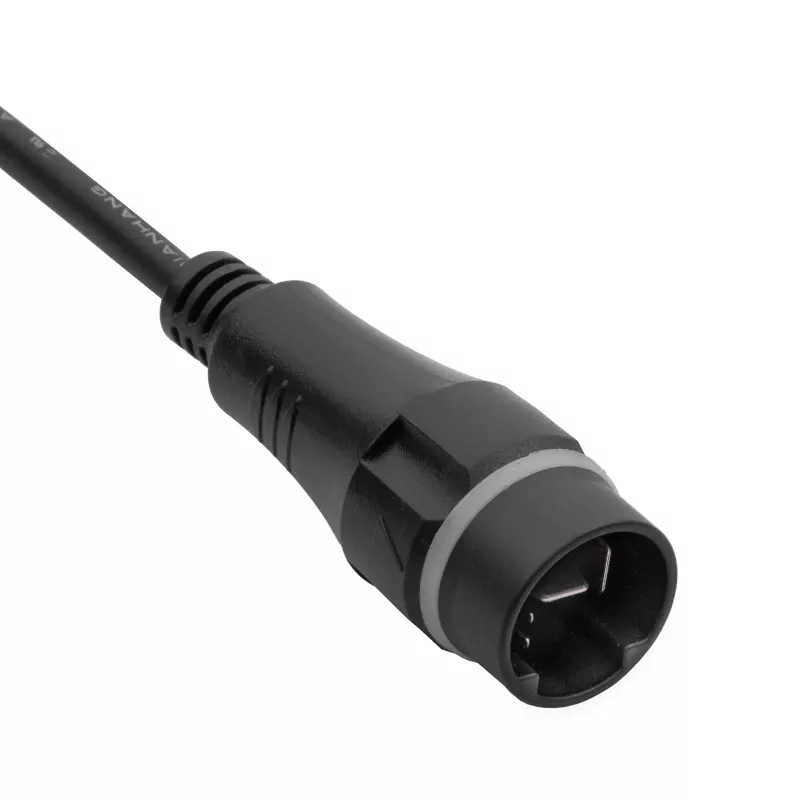

• Output connector: Yamaha PASC9

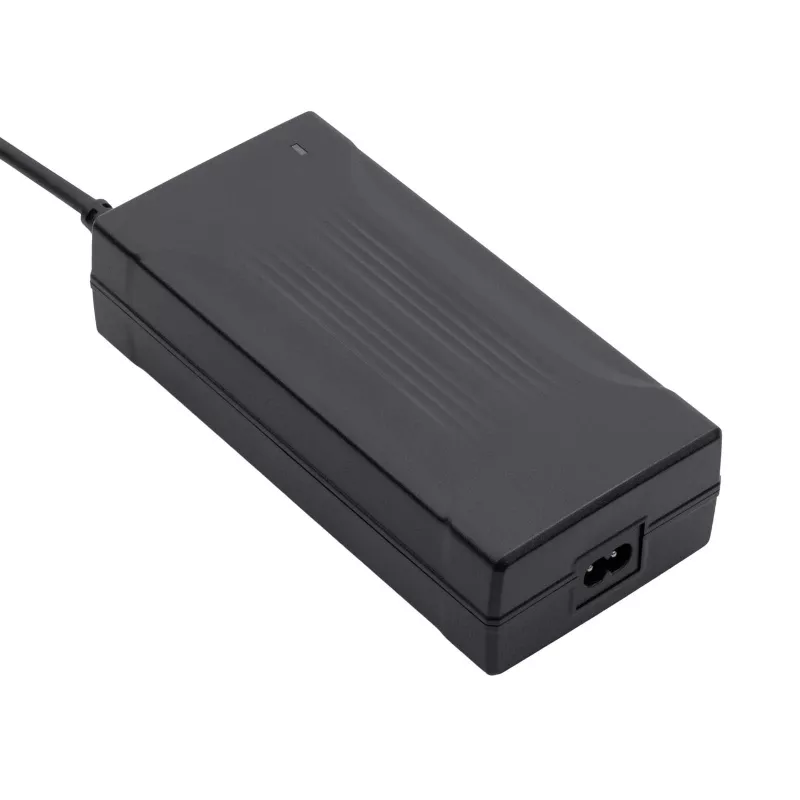

• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Product color: Black
• Display: None
• MTBF: 10000 h
• Package: EcoBox
• Product size (L x W x H): 195 x 110 x 45 mm
• Net weight: 783 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
• EAN code: 5906708751129
