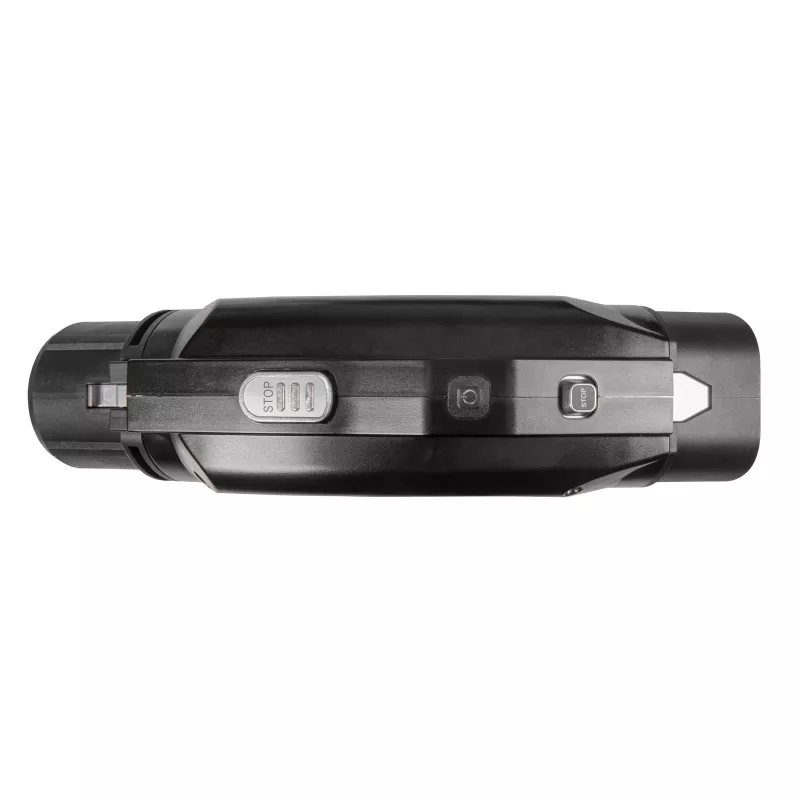

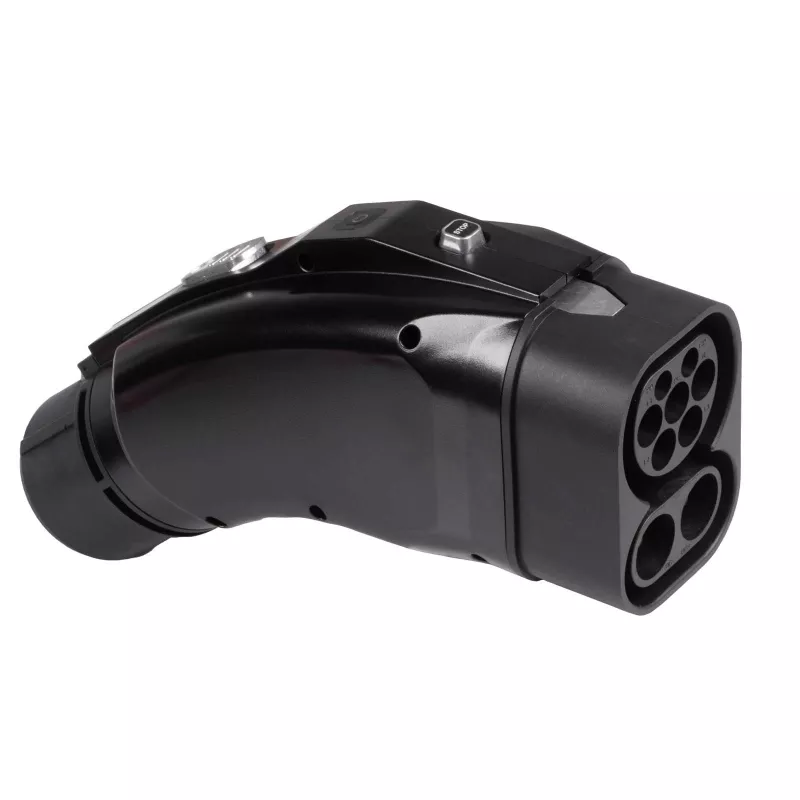

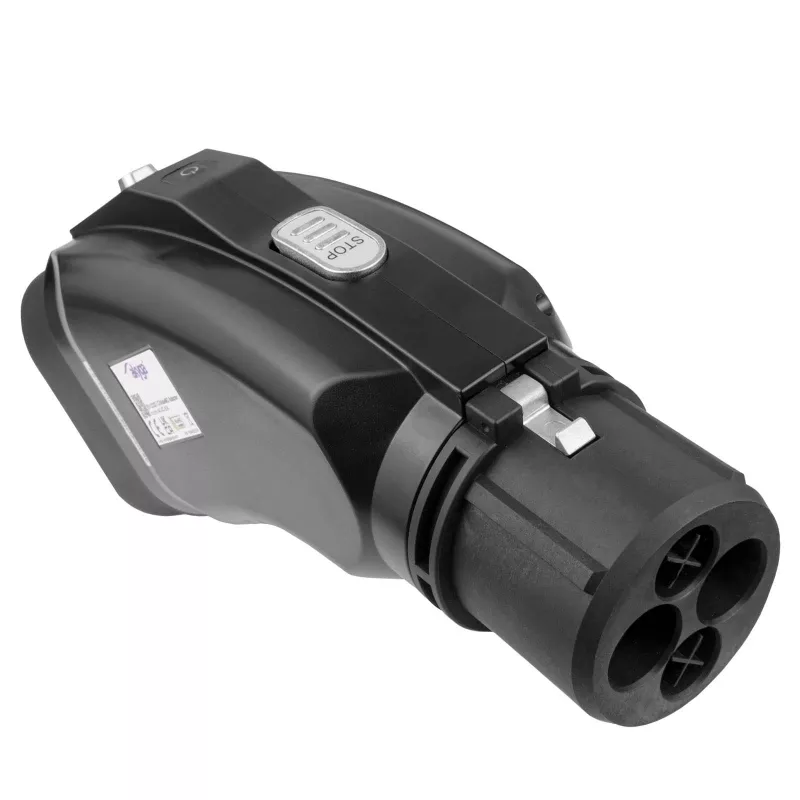

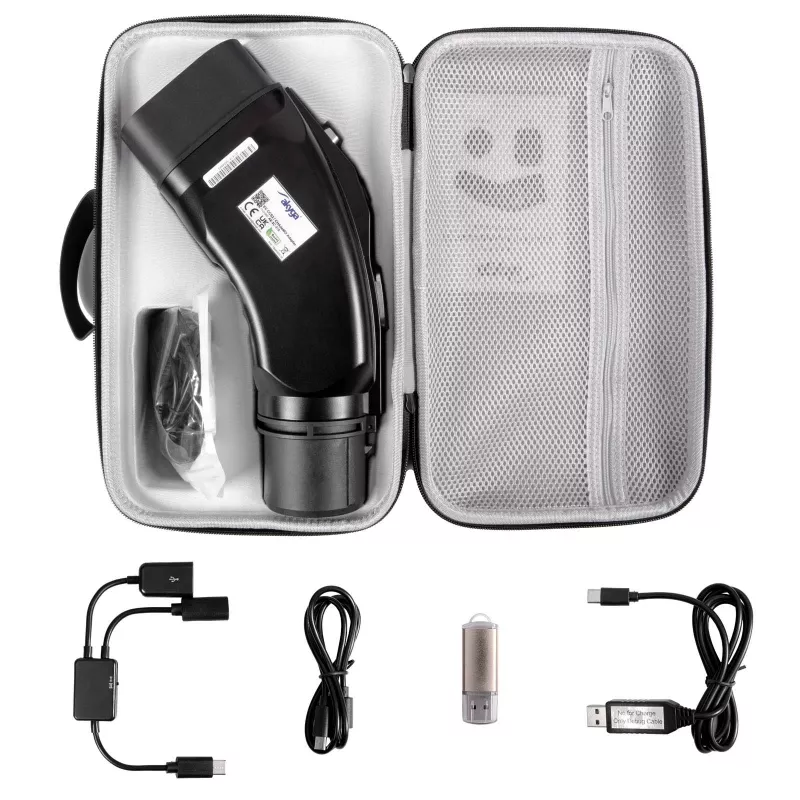

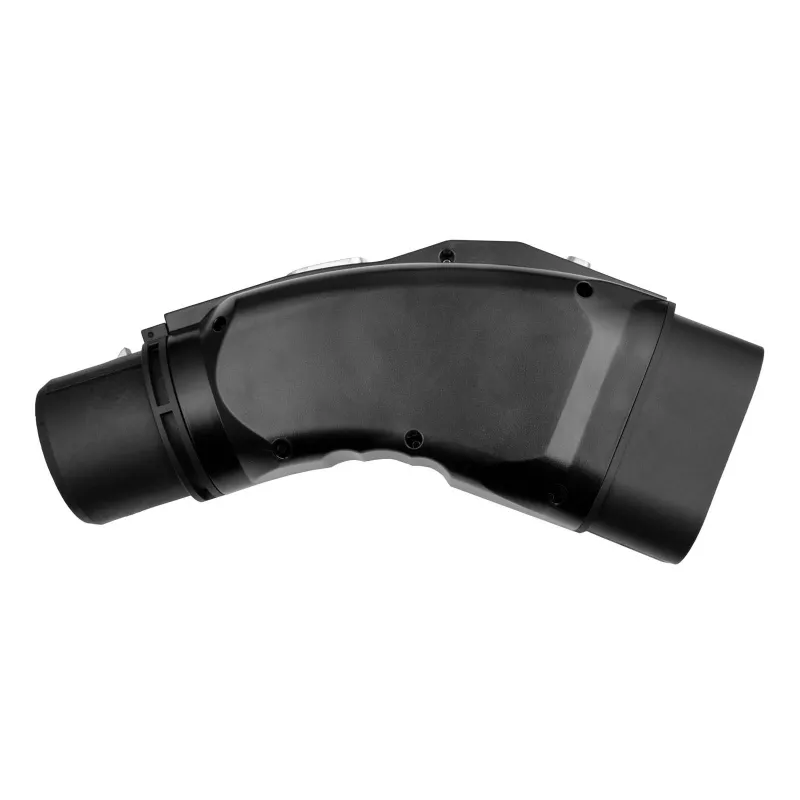

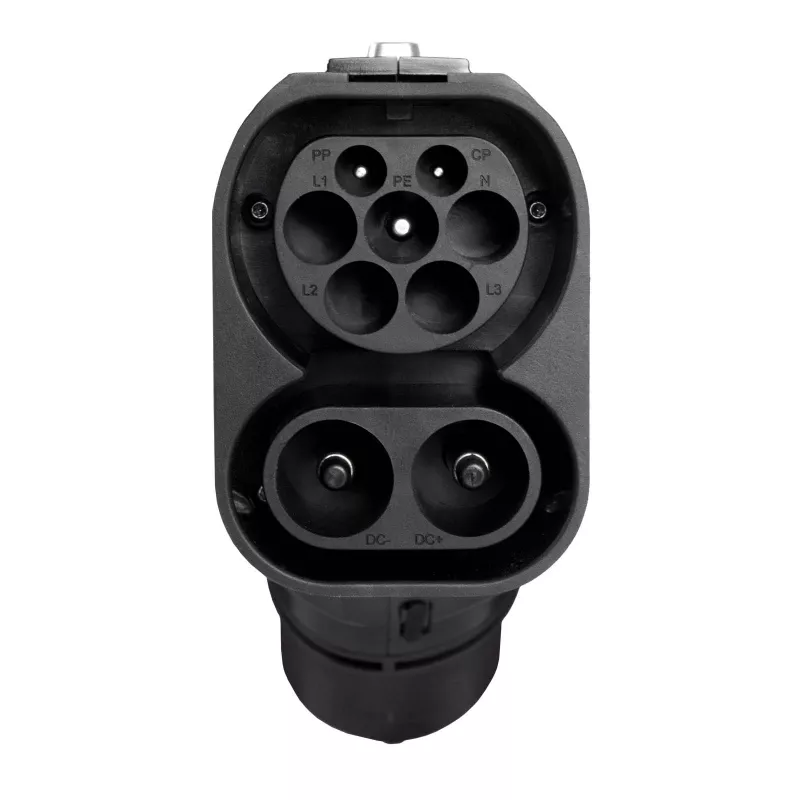

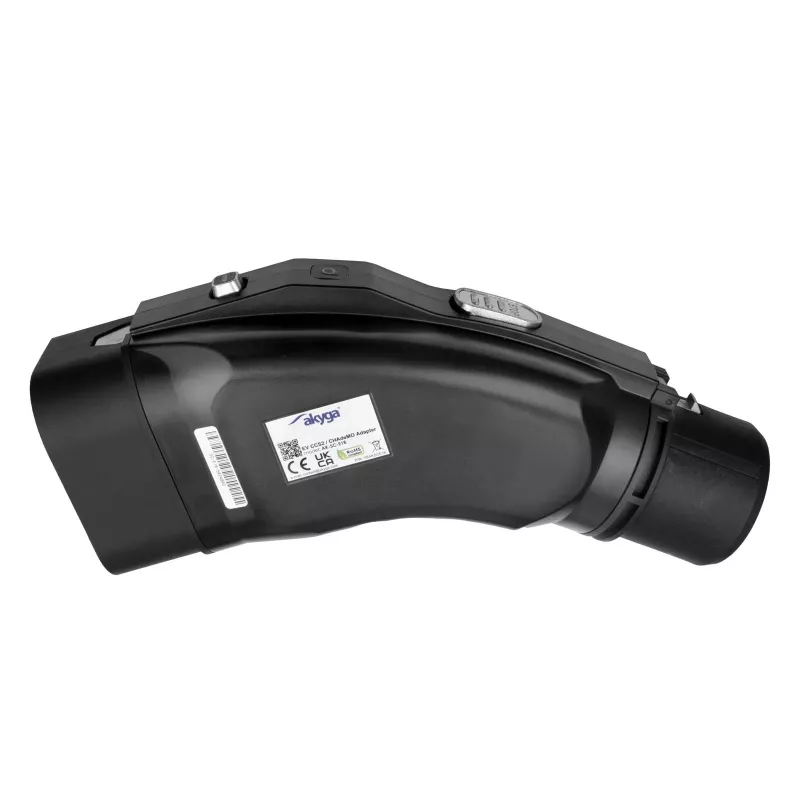

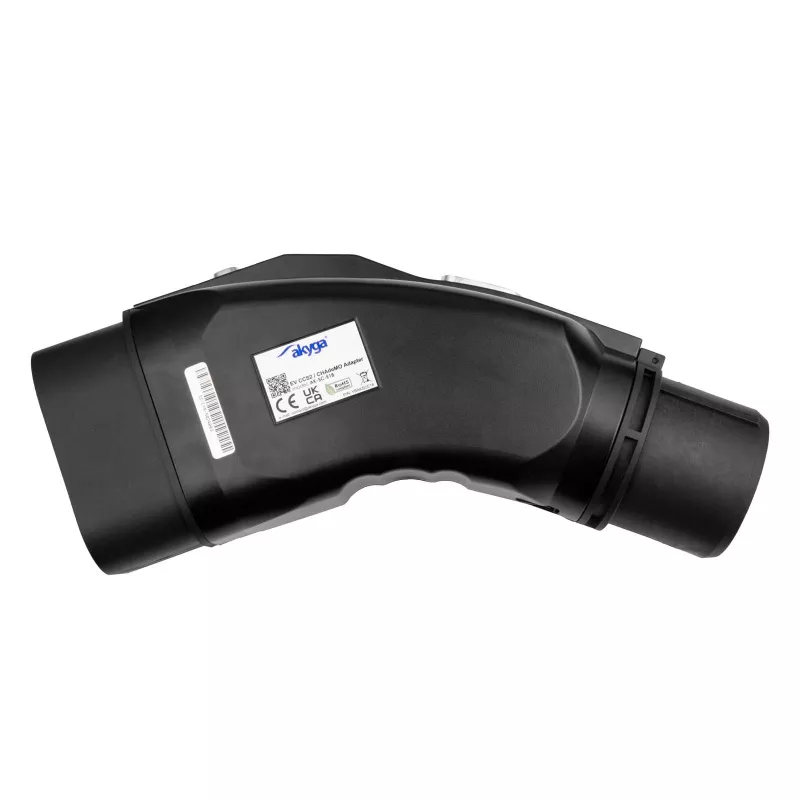

Akyga AK-SC-E18 Adaptador de carga rápida DC para VE CCS2 / CHAdeMO 1000V DC 250A

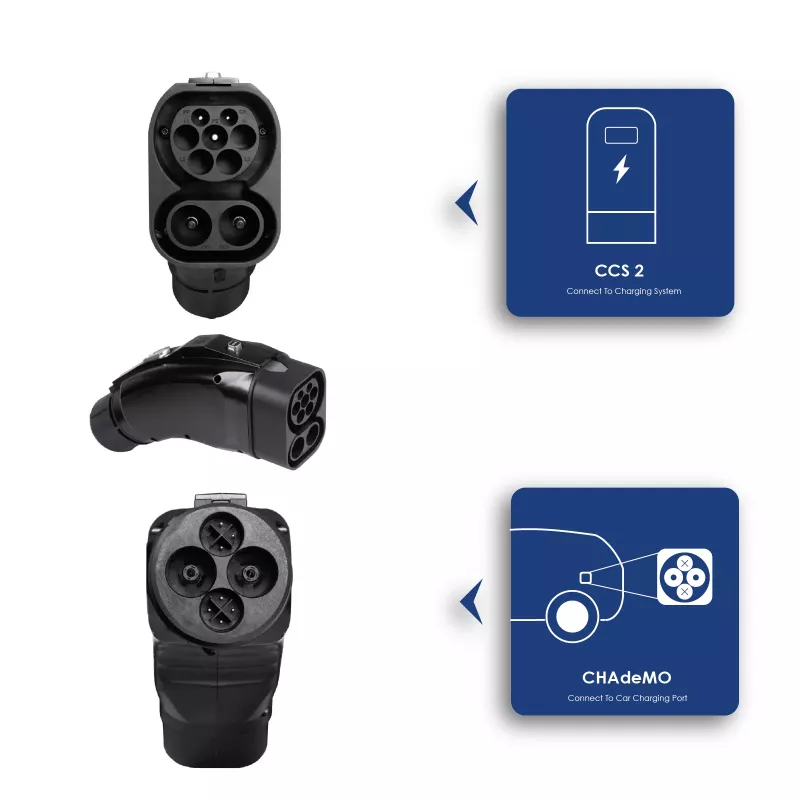

The Akyga AK-SC-E18 is a high-performance DC fast charging adapter designed to bridge the gap between CCS2 charging stations and CHAdeMO-equipped electric vehicles. With support for up to 1000V DC and 250A, this adapter enables rapid charging at up to 250 kW, making it an essential tool for EV owners and fleet operators. Built with robust thermoplastic housing and silver-plated copper alloy contacts, it ensures reliable and safe power transfer in demanding environments.

Advantages

Seamlessly connect your CHAdeMO EV to CCS2 DC fast charging stations. The adapter supports ultra-fast charging up to 250 kW, significantly reducing downtime. Its IP54 rating provides protection against dust and water splashes, while the flame-retardant housing (UL94 V-0) ensures safety. Over-voltage, over-current, and over-temperature protections safeguard your vehicle and the adapter.

Suitable for

• Electric vehicles with CHAdeMO charging ports
• CCS2 DC fast charging stations (Type 2)
• Fleet operators and EV charging infrastructure
• Public and commercial charging networks

Key specifications

• Adapter Type: EV DC Fast Charging Adapter

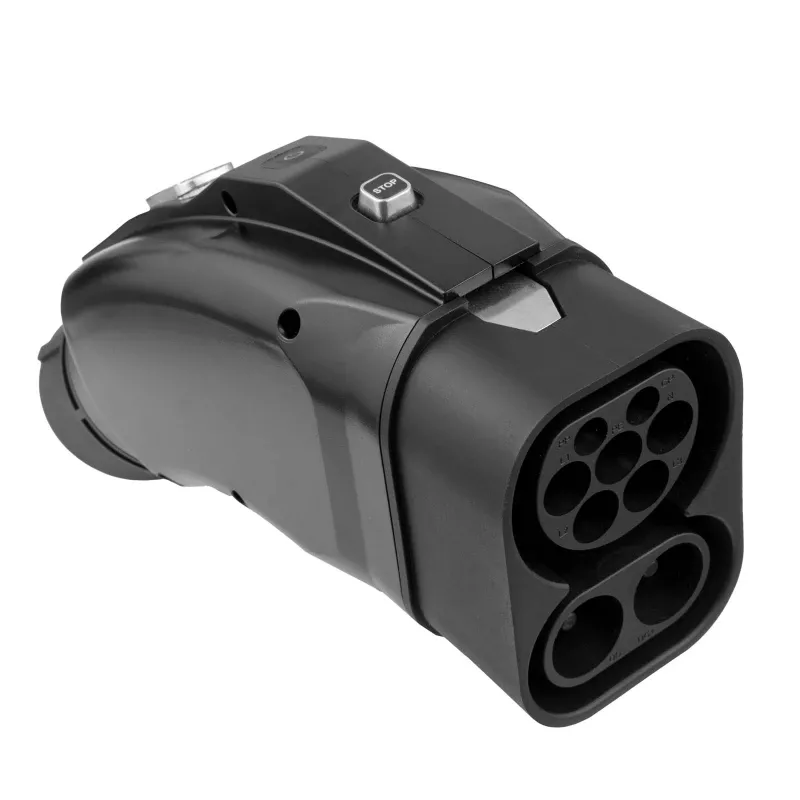

• Input Connector: CCS2 (Combined Charging System Type 2)

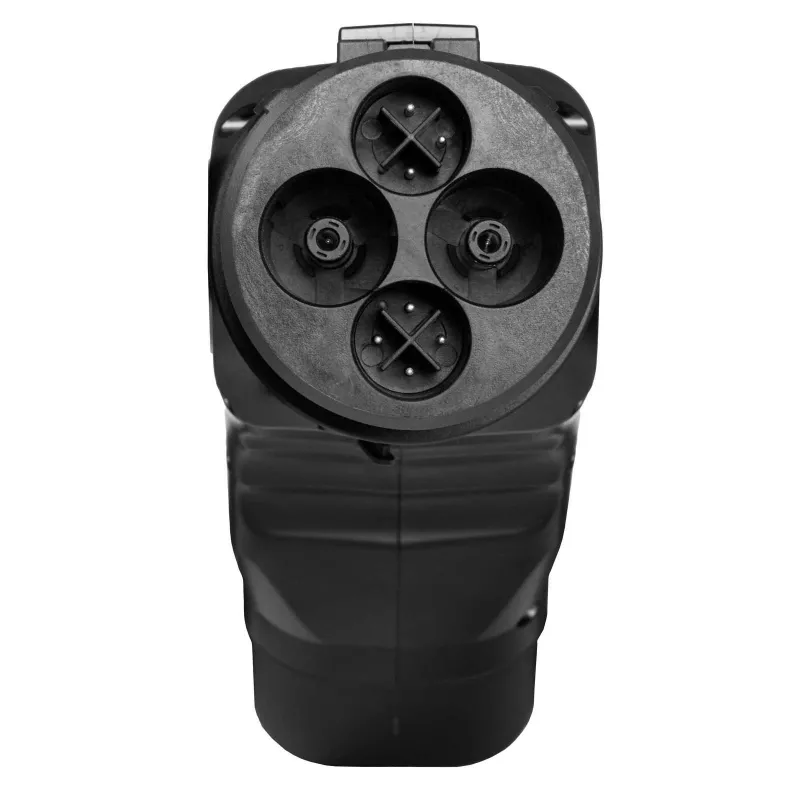

• Output Connector: CHAdeMO
• Maximum Voltage: 1000V DC
• Maximum Current: 250A
• Maximum Power: 250 kW
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -40°C to +80°C
• IP Rating: IP54
• Insulation Resistance: >1000MΩ (DC 500V)
• Withstand Voltage: 3000V AC (1 minute)
• Contact Resistance: <0.5mΩ
• Housing Material: Thermoplastic (UL94 V-0)
• Contact Pin Material: Copper Alloy, Silver Plating
• Safety Features: Over-voltage, Over-current, Over-temperature protection
• Certifications: CE, RoHS
• Color: Black with Orange accents
• Cable Length: N/A (Direct plug adapter)

Recommendations

Ensure your EV is compatible with CHAdeMO and CCS2 standards before use. Always follow the manufacturer's instructions and local regulations for DC fast charging. This adapter is designed for occasional use and should be inspected regularly for wear.
