Akyga AK-SC-E29 Adaptador de estación de carga, Type-2 (macho) a toma Schuko, 13 A, 3,5 kW

The Akyga AK-SC-E29 is an ultra-compact adapter that converts a public EV charging station with a Type 2 connector into a power source with a Schuko socket. It features a male Type 2 connector (IEC 62196-2) and a female Schuko socket (CEE 7/4), enabling connection of standard mains chargers. With a maximum power of 3.5 kW and a maximum current of 13 A, it is suitable for charging light electric vehicles.

Key features

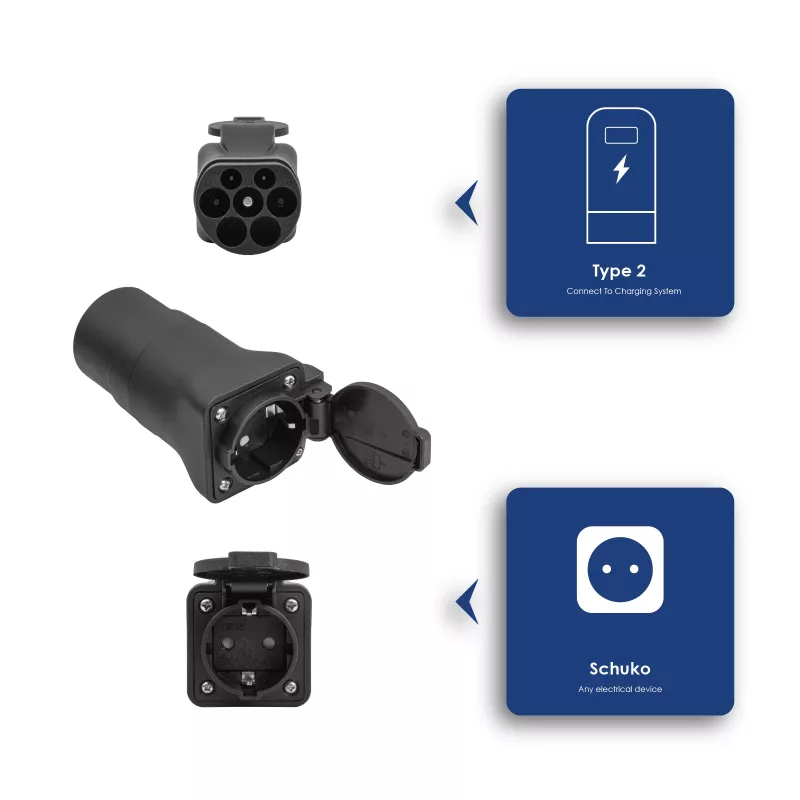

• Converts Type 2 charging station to Schuko socket

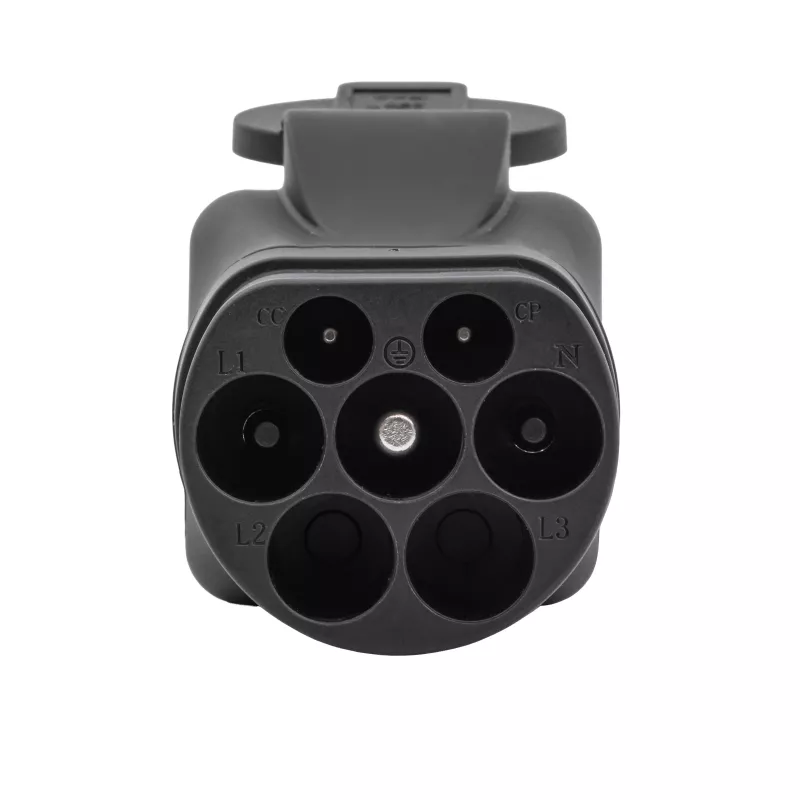

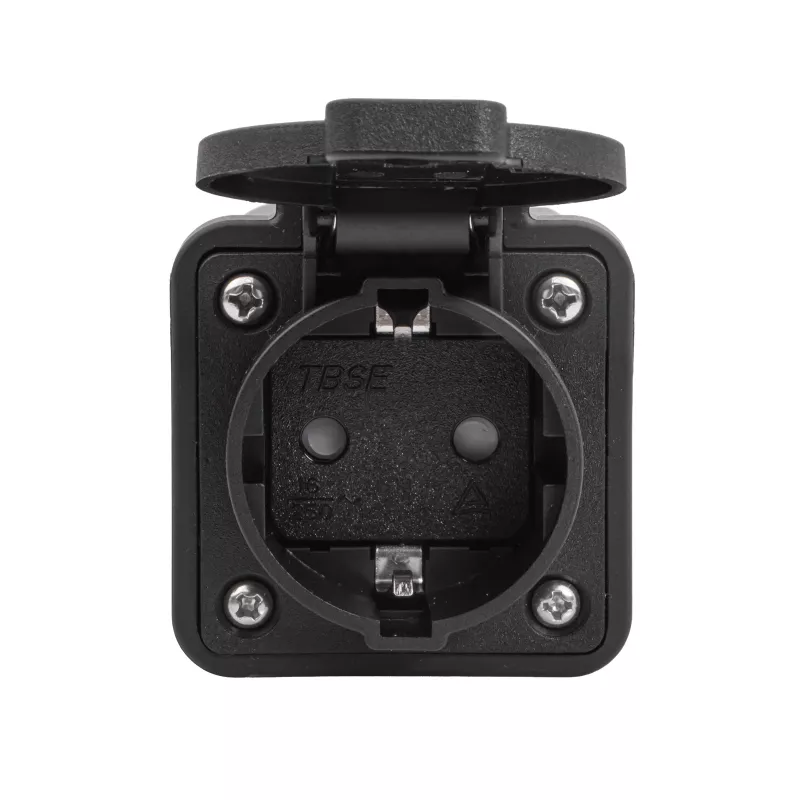

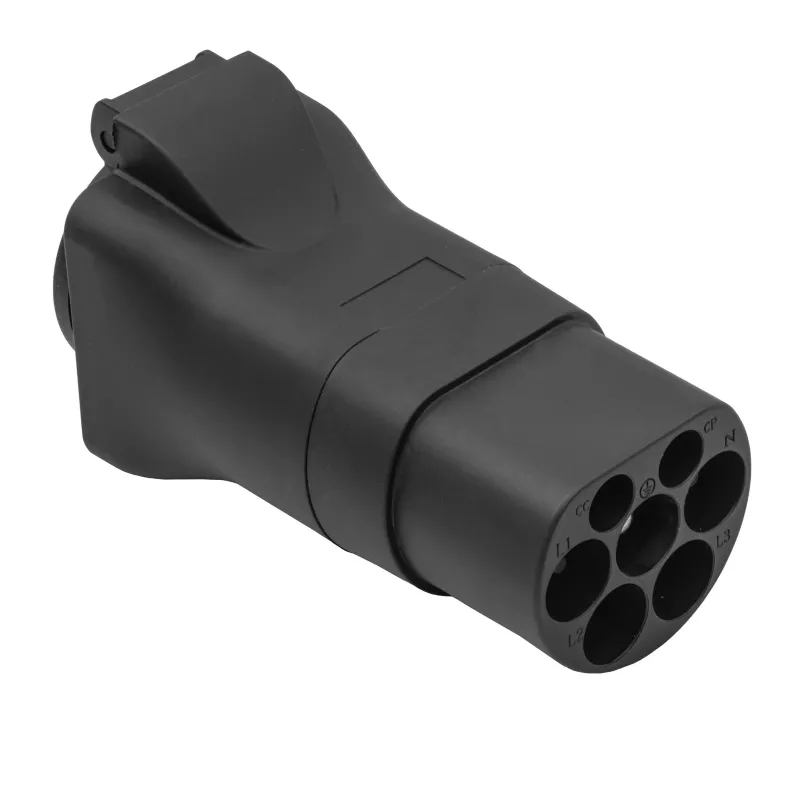

• Male Type 2 connector (IEC 62196-2) and female Schuko socket (CEE 7/4)
• Maximum operating current per phase: 13 A
• Maximum operating power (single-phase): 3.5 kW
• Compact and lightweight design
• IP44 protection rating
• Operating temperature range: -30 to 50 °C

Specifications

• Brand: Akyga
• MPN: AK-SC-E29
• Connector 1: Type 2 (IEC 62196-2) male
• Connector 2: Schuko (CEE 7/4) socket
• Maximum operating current per phase: 13 A
• Maximum operating power (single-phase): 3.5 kW
• Operating temperature (T-T): -30 - 50 °C
• International Protection (IP) code: IP44
• Weight: 224 g
• Certification: CE, RoHS
