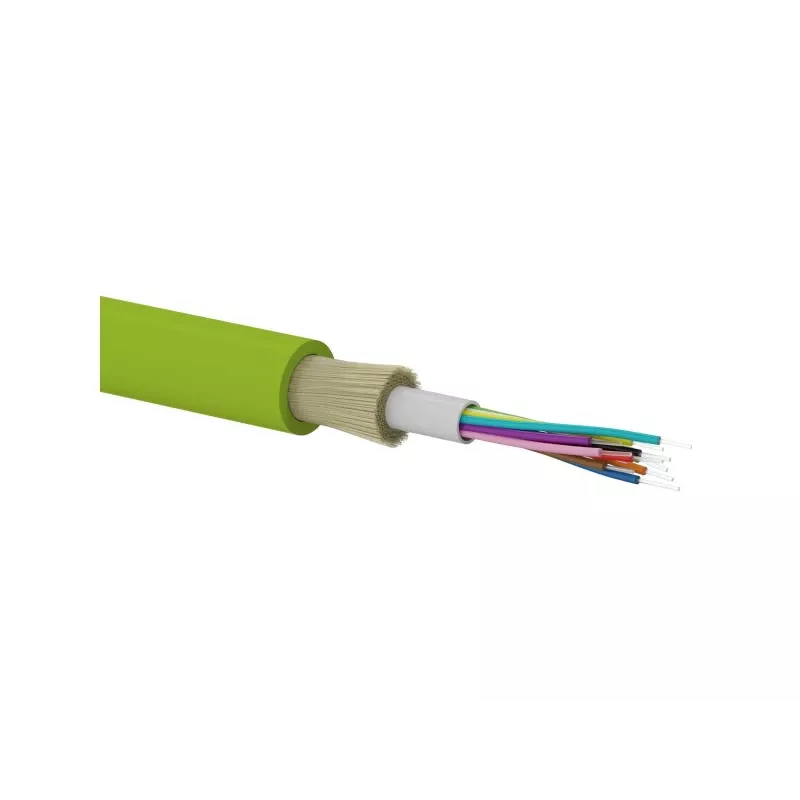

ALANTEC FOK-U16G-MM-5-B OM5 cable de fibra óptica multimodo, 16 fibras, 50/125 µm, B2ca, LSOH, FireHardy, Universal

The ALANTEC FOK-U16G-MM-5-B is a high-performance OM5 multimode fiber optic cable designed for universal indoor/outdoor applications. With 16 fibers and a 50/125 µm core/cladding, it supports wideband multimode transmission for next-generation networks. The cable features a B2ca fire resistance classification and LSOH (Low Smoke Zero Halogen) sheath, ensuring safety in public and commercial buildings. Its FireHardy flame-retardant properties make it ideal for installations requiring strict fire safety standards.

Advantages

OM5 fiber enables high-speed data transmission over multiple wavelengths, including 850 nm and 953 nm, supporting SWDM technology. The B2ca CPR classification ensures compliance with European building regulations. LSOH material reduces toxic smoke emissions in case of fire. Non-metallic strength members provide immunity to electromagnetic interference. Water blocking and UV resistance enhance durability in outdoor environments.

Suitable for

• Data center backbone cabling
• Local area network (LAN) installations
• Building and campus networks
• Industrial environments requiring flame retardancy
• Outdoor and indoor fiber optic infrastructure

Key specifications

• Fiber Type: OM5 Multimode (WBMMF)
• Fiber Count: 16
• Core/Cladding: 50/125 µm
• Cable Construction: U-DQ(ZN)BH (Universal, Loose Tube, Non-metallic)
• Fire Class: B2ca (CPR)
• Sheath Material: LSOH (Low Smoke Zero Halogen)
• Jacket Color: Lime Green
• Attenuation @ 850nm: ≤ 2.5 dB/km
• Attenuation @ 1300nm: ≤ 0.8 dB/km
• Effective Modal Bandwidth @ 850nm: 4700 MHz·km
• Effective Modal Bandwidth @ 953nm: 2470 MHz·km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +70°C
• Standards: EN 50575, IEC 60794, IEC 60332-1-2, IEC 60754-1/2, IEC 61034-1/2

Recommendations

For optimal performance, use with OM5-compatible transceivers and connectors. Ensure proper cable management to maintain bend radius. This cable is suitable for both indoor and outdoor installations but should be protected from direct burial unless specified.
