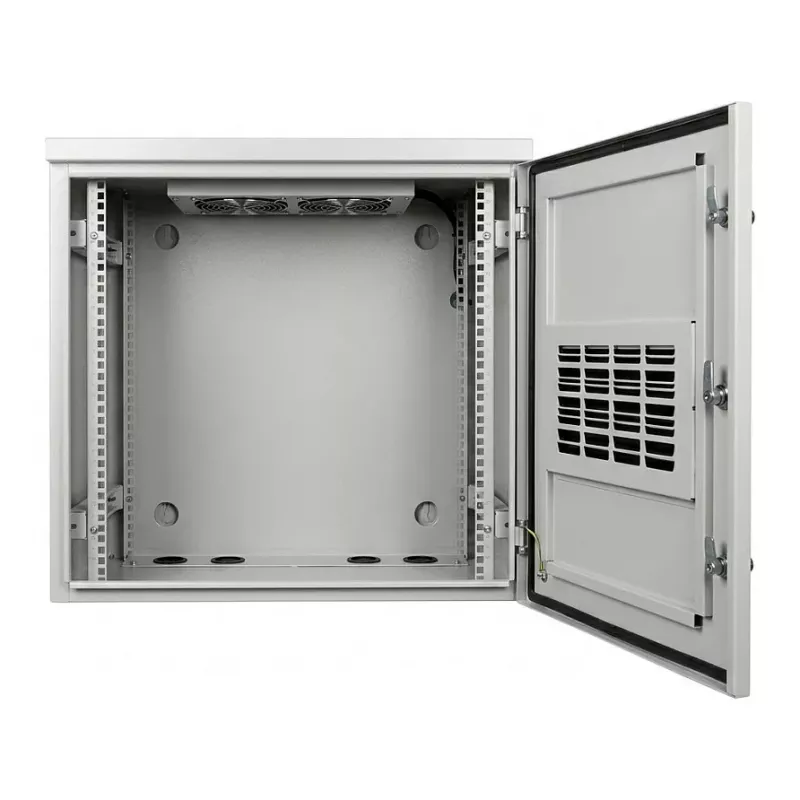

ALLNET armario de pared de 19" 12U 488mm de profundidad gris claro IP55 serie SO con unidad de 2 ventiladores

The ALLNET SO-Series wall-mount enclosure offers a robust and secure housing solution for your 19-inch rack equipment. With a 12U height and 488mm usable depth, it provides ample space for switches, patch panels, and other network devices. The enclosure features an IP55 protection rating, making it suitable for demanding environments where dust and water ingress must be minimized. It includes an integrated 2-fan unit for active ventilation, ensuring optimal operating temperatures for your equipment.

Advantages

This enclosure combines high protection class with practical design. The lockable steel front door secures your equipment, while the powder-coated finish ensures long-lasting durability. The integrated fan unit provides active cooling, and the top and bottom cable entries with seals maintain the IP55 integrity. The wall-mount design saves floor space and allows for flexible installation.

Suitable for

• Network cabinets in industrial environments, workshops, or outdoor shelters
• Housing 19-inch rack equipment such as switches, routers, patch panels, and servers
• Applications requiring IP55 protection against dust and water jets
• Wall-mounted installations where space is limited

Key specifications

• Rack Height: 12U
• Rack Width: 19 inch
• Protection Class: IP55
• Mounting Type: Wall Mount
• Colour: Light Grey (RAL 7035)
• Material: Steel
• Front Door: Steel, lockable
• Cooling: Integrated 2-fan unit
• Usable Depth: 488 mm
• External Dimensions (HxWxD): 630 x 600 x 550 mm
• Static Load Capacity: 60 kg
• Cable Entry: Top and bottom, sealed
• Side Panels: Fixed, non-removable
• Finish: Powder-coated
• Number of Doors: 1 (front)
• Ventilation: Active (via fan unit)
• Included Accessories: 2-fan unit, 2 keys, mounting hardware
• Compliance: CE, RoHS

Recommendations

For optimal performance, ensure the enclosure is mounted on a solid wall capable of supporting the weight. Use appropriate cable glands for external cable entries to maintain IP55 rating. The integrated fan unit should be connected to a suitable power source; consider using a filtered fan unit for dusty environments.
