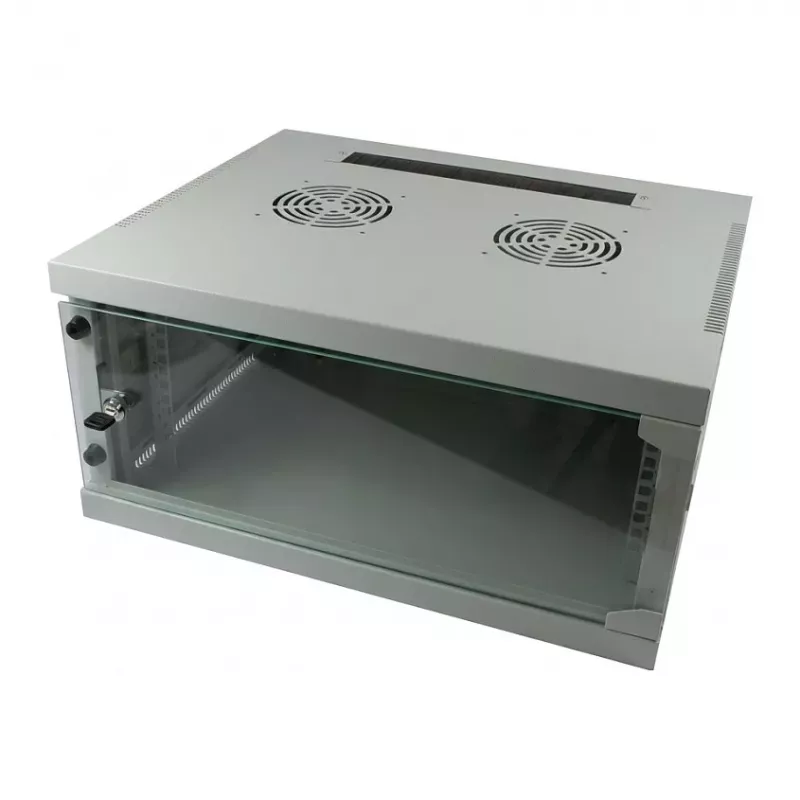

ALLNET Armario de pared de 19 pulgadas 9U W541/D595mm 1 pieza gris claro serie SMQ

The ALLNET SMQ series 19-inch wall-mounted housing is a robust and reliable enclosure designed for network, server, and IT equipment. With 9U of rack space and a depth of 595mm, this 1-piece cabinet offers ample room for organizing and protecting your valuable hardware. Constructed from high-quality steel sheet with a light grey (RAL 7035) finish, it provides durability and a professional appearance.

Advantages

This wall-mounted housing features a lockable safety glass front door with 2-point locking for enhanced security. The 19-inch profile rails are depth-adjustable, allowing flexible installation of various equipment. Cable entry points at the top and bottom facilitate neat cable management. The door opens 180 degrees for easy access, and passive ventilation ensures adequate airflow. With a static load capacity of 60 kg, it can support heavy equipment.

Suitable for

• Network switches and patch panels
• Server and IT equipment in small to medium installations
• Office, retail, and industrial environments requiring secure wall-mounted rack solutions

Key specifications

• Rack Units: 9U
• Mounting Type: Wall-mounted
• Form Factor: 19-inch
• Series: SMQ Series
• Construction Type: 1-part (single section)
• Material: Steel sheet
• Color: Light Grey (RAL 7035)
• Front Door Type: Lockable safety glass door
• Side Panels: Fixed
• Cable Entry Points: Top and bottom
• Ventilation: Passive
• Protection Class: IP20
• Static Load Capacity: 60 kg
• Mounting Rails: 19-inch profile rails, depth adjustable
• Door Locking Mechanism: 2-point locking
• Door Opening Angle: 180 degrees
• Compliance Standards: IEC 60297-2, DIN 41494-7, DIN 41494-1
• Application: Network, Server, IT equipment

Recommendations

For optimal cable management, consider using ALLNET patch panels and cable management accessories. Ensure proper ventilation by not overloading the cabinet and maintaining clearance around vents.
