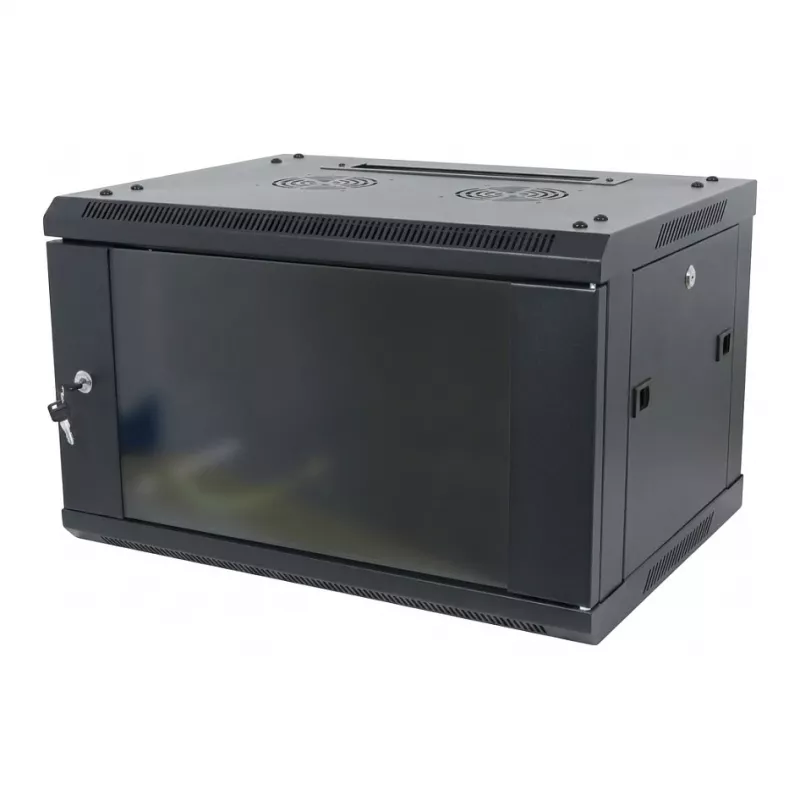

ALLNET SMA-Series Armario de pared de 19 pulgadas 12U de 1 pieza 600mm de profundidad Negro Flat Pack

The ALLNET SMA-Series 19" wall-mount enclosure is a robust and versatile solution for housing network and IT equipment in space-constrained environments. Designed as a single-section, flat-pack unit, it offers easy transportation and assembly while providing professional-grade protection and organization for your 19" rack-mountable devices.

Advantages

This enclosure combines durability with flexibility. Its tempered glass front door allows for quick visual inspection of equipment, while the key lock ensures security. The removable side panels facilitate easy access for cabling and maintenance. Depth-adjustable mounting rails accommodate various equipment depths, and passive ventilation with preparation for fan installation keeps components cool.

Suitable for

• Network switches, patch panels, and routers in small to medium server rooms
• Audio/visual equipment installations
• Security system control units
• Any 19" rack-mountable device requiring wall-mounted placement

Key specifications

• Rack height: 12U
• External dimensions (W x D x H): 600 x 600 x 635 mm
• Colour: Black (RAL 9005)
• Material: Steel
• Front door: Tempered glass with key lock
• Side panels: Removable
• Mounting rails: 2 pairs, depth-adjustable
• Static load capacity: 60 kg
• Protection class: IP20
• Assembly: Flat-pack (disassembled)
• Cable entry: Top and bottom
• Ventilation: Passive, prepared for fan unit

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use appropriate cable management accessories to maintain airflow and organization.
