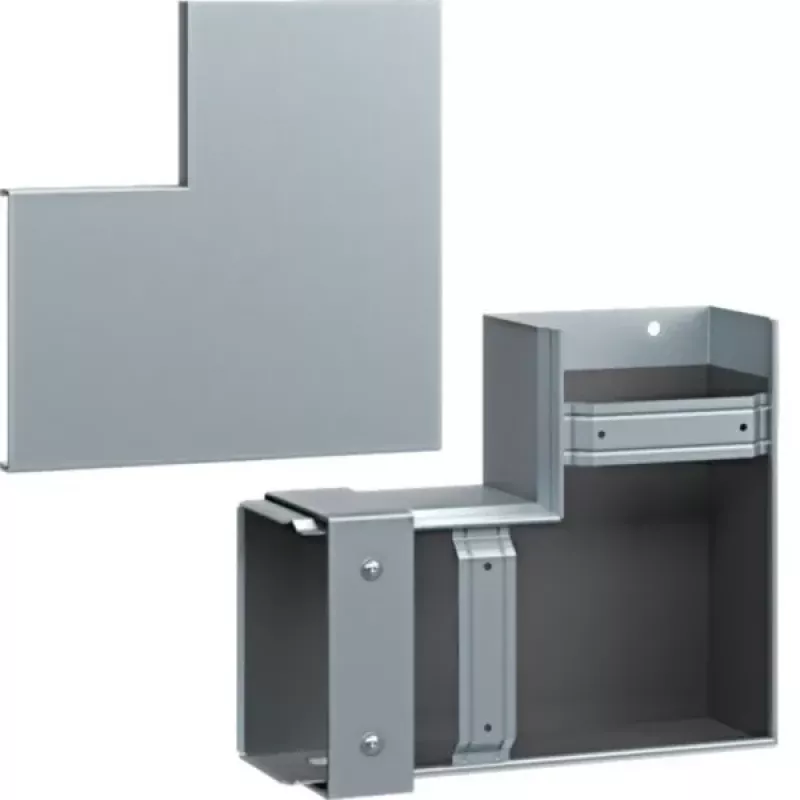

Ángulo plano Hager FWK-Plus 100x150 mm galvanizado en caliente para bandejas de cables cortafuego FWKP1001505VERZ

This flat angle from Hager's FWK-Plus series provides a 90° horizontal direction change for fire protection cable tray systems. It is made from galvanized steel with a Sendzimir finish, ensuring corrosion protection for indoor installations. Designed for cable trays with a width of 100 mm and height of 50 mm, the angle has a leg length of 150 mm. Screw connection hardware is sold separately. The product complies with relevant fire protection standards for the system.

Highlights

• 90° horizontal bend for cable tray direction changes
• Compatible with Hager FWK-Plus fire protection cable tray system
• Galvanized steel with Sendzimir finish for corrosion resistance
• For cable trays 100 mm wide and 50 mm high
• Leg length: 150 mm

Full specifications

• Product type: Flat angle
• Angle type: Horizontal bend
• Bend angle: 90°
• Material: Steel
• Surface finish: Galvanized (Sendzimir)
• Colour: Metallic silver
• Installation type: Screw connection (connectors sold separately)
• Usage environment: Indoor
• Series: FWK-Plus

Final note

A reliable component for fire protection cable routing, ensuring a secure 90° turn in your installation.
