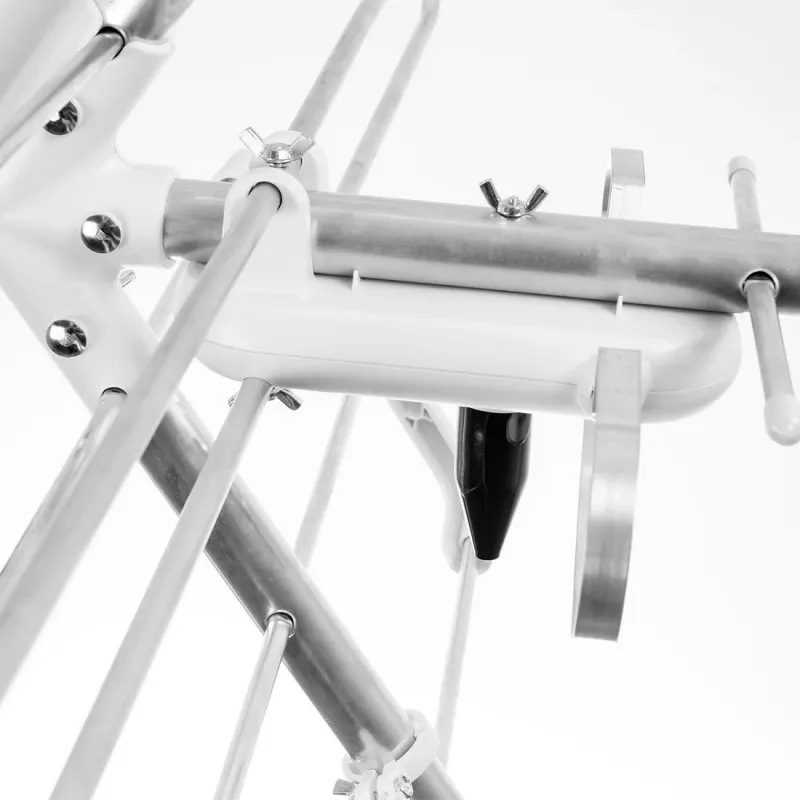

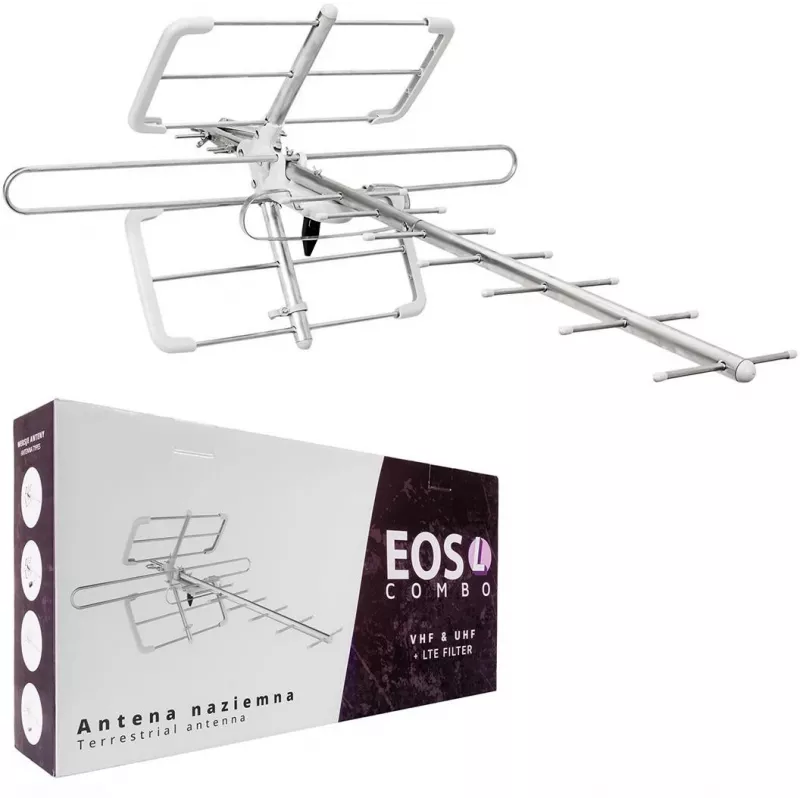

Antena DVB-T/T2 Spacetronik EOS L Combo Blanca (Pasiva)

The Spacetronik EOS L Combo is a high-performance passive DVB-T/T2 antenna designed for outdoor use. It delivers reliable reception of digital terrestrial television (DVB-T/T2) and DAB+ radio signals, featuring an integrated LTE/5G filter to minimize interference from mobile networks. The antenna is constructed from UV-resistant ABS plastic and aluminum elements, ensuring durability in various weather conditions. Its adjustable polarization (horizontal/vertical) allows for optimal signal alignment.

Advantages

Passive design eliminates the need for an external power supply, simplifying installation. The built-in LTE/5G filter (700 MHz) effectively suppresses interference, ensuring clear reception. With a maximum gain of up to 12 dBi in UHF range, it provides strong signal capture even in challenging environments. The antenna is weather-resistant (IPX4) and can be mounted on a pole or wall.

Suitable for

• Outdoor DVB-T and DVB-T2 digital television reception
• DAB+ digital radio reception
• Areas with moderate to strong signal strength (passive antenna)

Key specifications

• Antenna Type: Terrestrial DVB-T/T2 Antenna
• Amplification: Passive
• Frequency Range (VHF): 174 - 230 MHz
• Frequency Range (UHF): 470 - 694 MHz
• Max. Gain (VHF): 5-8 dBi
• Max. Gain (UHF): 8-12 dBi
• Polarization: Horizontal / Vertical (Adjustable)
• Impedance: 75 Ohm
• Connector Type: F-type
• Built-in Filter: LTE/5G (700 MHz) Filter
• Compatibility: DVB-T, DVB-T2, DAB+ Radio
• Application: Outdoor
• Color: White
• Material: UV-resistant ABS Plastic, Aluminum Elements
• Mounting Options: Pole Mount, Wall Mount
• VSWR: < 2.0
• Beamwidth (Horizontal): ~30-45 degrees
• Beamwidth (Vertical): ~30-45 degrees
• Weather Resistance: IPX4
• Power Supply: Not required (Passive)

Recommendations

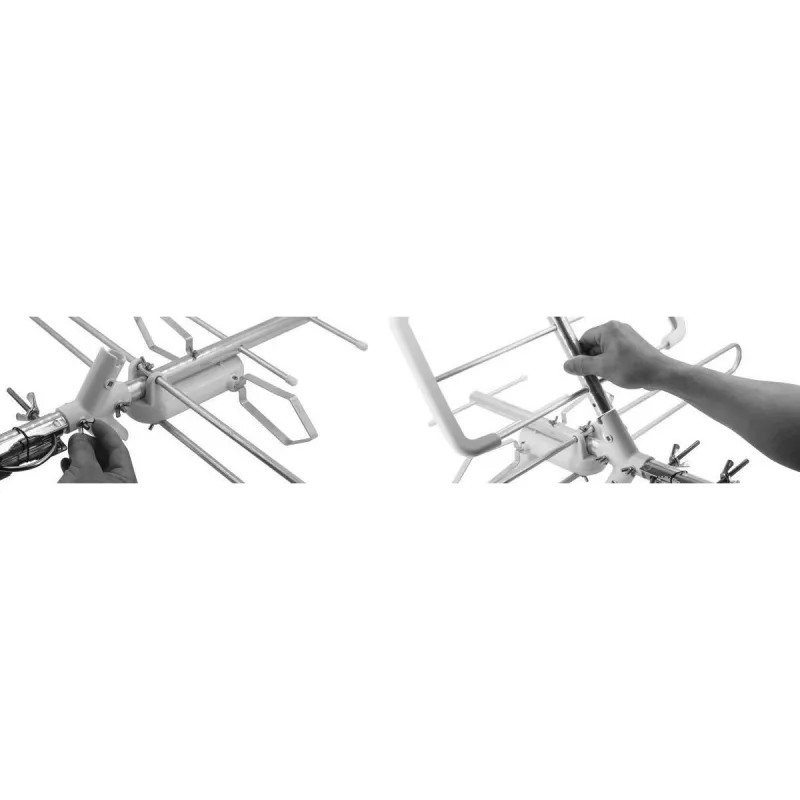

For optimal performance, mount the antenna outdoors with a clear line of sight to the broadcast tower. Use high-quality 75 Ohm coaxial cable with F-type connectors. Ensure the antenna is securely fastened to withstand wind and weather.
