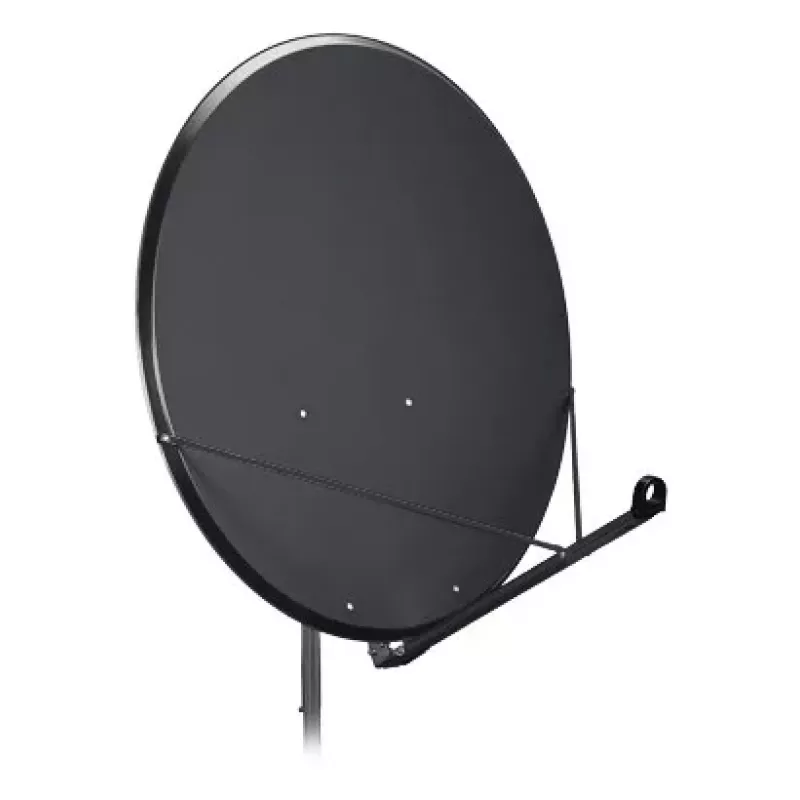

Antena parabólica offset AS-110/FAMAVAL-G 110cm gris

The Offset Satellite Dish AS-110/FAMAVAL-G with a diameter of 110 cm is a high-performance antenna designed for reliable satellite reception. Manufactured from galvanized steel with a durable polyester powder coating, this dish offers excellent corrosion resistance and long-lasting performance. Its offset design minimizes signal blockage and ensures optimal gain, making it suitable for both residential and commercial installations.

Advantages

This satellite dish features a robust construction with a 0.8 mm thick reflector, providing stability in various weather conditions. The grey coating blends well with outdoor environments, and the adjustable elevation (10°-80°) and full 360° azimuth rotation allow for precise alignment. With a gain of 40.5 dB at Ku-band, it ensures strong signal reception even in challenging areas.

Suitable for

• Satellite TV reception (Ku-band)
• Residential and small commercial installations
• Areas requiring a medium-sized dish for reliable signal

Key specifications

• Antenna Type: Offset Satellite Dish
• Nominal Dish Diameter: 110 cm
• Reflector Material: Galvanized Steel
• Coating: Polyester Powder Coating
• Colour: Grey
• Gain (Ku-band @ 11.7 GHz): 40.5 dB
• Offset Angle: 26 degrees
• F/D Ratio: 0.6
• Elevation Adjustment Range: 10° - 80°
• Azimuth Adjustment Range: 360° (via mast rotation)
• LNB Holder Diameter: 40 mm
• Mast Clamp Diameter: 32 - 76 mm
• Wind Load (Operational): Up to 90 km/h
• Wind Load (Survival): Up to 120 km/h
• Frequency Range: 10.7 - 12.75 GHz
• Reflector Thickness: 0.8 mm
• Efficiency: >70%
• Cross Polarization Isolation: >25 dB

Recommendations

For optimal performance, pair this dish with a compatible LNB and ensure proper alignment using a satellite finder. Regular maintenance of the reflector surface will help maintain signal quality over time.
