Aspersor emergente Gardena S 80/300 negro

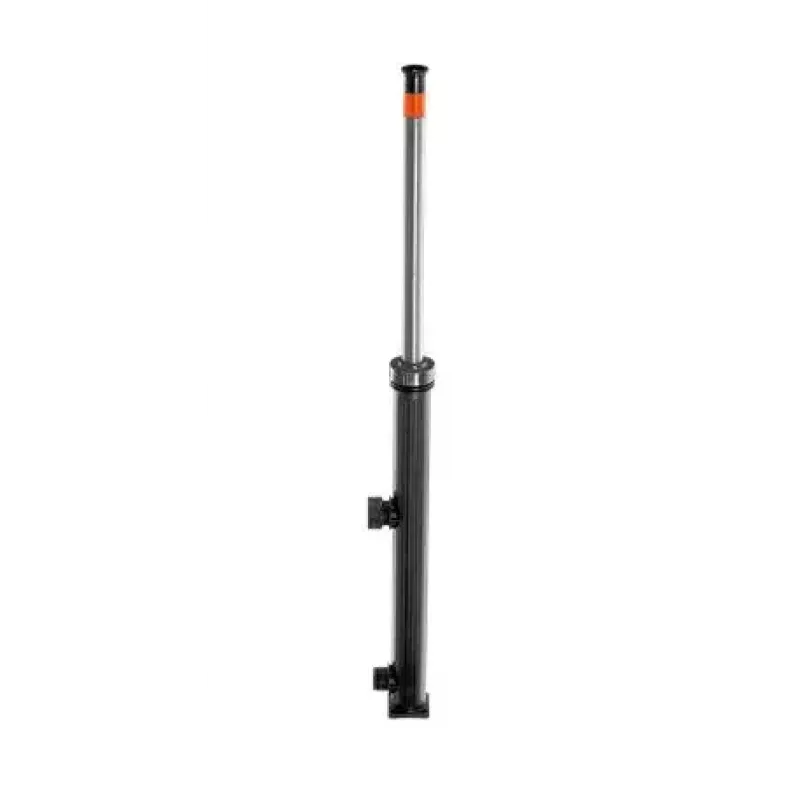

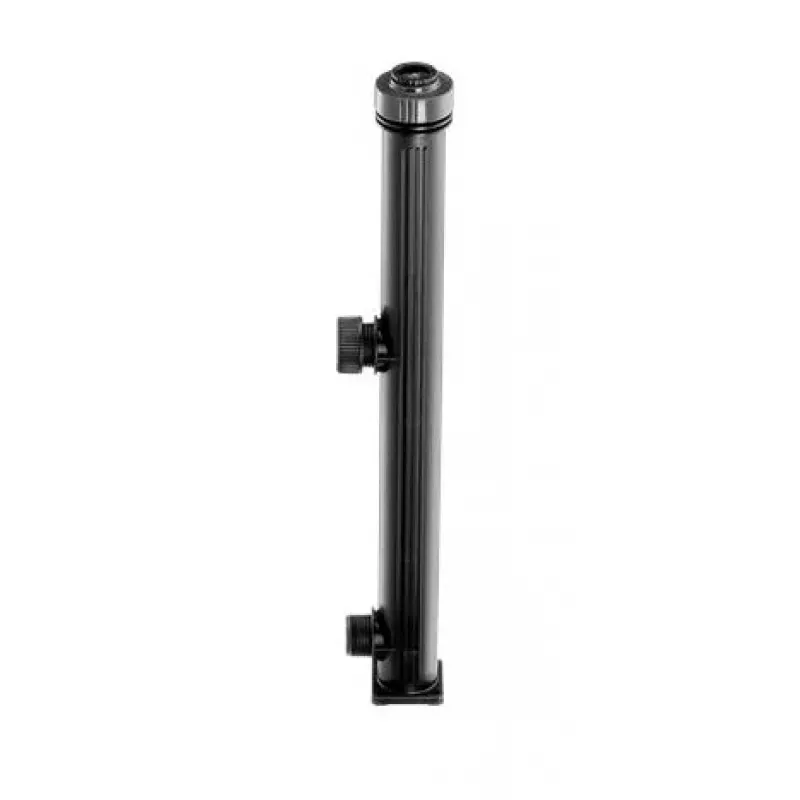

The GARDENA Pop-up Sprinkler S 80/300 is part of the GARDENA Sprinklersystem and is designed for irrigation of smaller lawns up to 80 m². With a shaft length of 300 mm the sprinkler can deliver water over higher plants so that irrigation reaches the intended area. It can be combined with other Pop-up Sprinklers S 80/300 or S 80 within the same pipeline and connects via a 3/4" male thread. The integrated dirt filter and drain valve support reliable operation and frost protection.

Advantages

The sprinkler offers an adjustable range between 2.50 and 5 m and an adjustable sector from 5° to 360°, allowing configuration from a very small sector up to a full circle. The water flow can be completely switched off. The long 300 mm shaft enables irrigation above taller plants. Built-in dirt filter reduces blockages and the integrated drain valve makes the system frost-proof.

Suitable for

• Irrigation of small lawns up to 80 m²
• Garden beds with taller plants where a longer shaft is required
• Integration into an existing GARDENA Sprinklersystem with S 80/300 or S 80 units

Key specifications

• Type: Pop-up sprinkler (S 80/300)
• Shaft length: 300 mm
• Adjustable range: 2.50–5 m
• Adjustable sector: 5°–360°
• Connection: 3/4" male thread
• Features: integrated dirt filter, integrated drain valve
• Suitable lawn area: up to 80 m²

How to use

Install the sprinkler in the pipeline of the GARDENA Sprinklersystem and connect using the 3/4" male thread. Adjust the nozzle sector on the sprinkler head to the required angle between 5° and 360°, set the desired range between 2.50 and 5 m, and use the shut-off function to stop the water flow when necessary. Ensure the integrated dirt filter is clean for uninterrupted operation. After the irrigation season, use the drain valve as part of frost protection procedures.

Recommendations

Use with other GARDENA Pop-up Sprinklers S 80/300 or S 80 in the same pipeline for even coverage. Regularly check and clean the integrated dirt filter and use the drain valve to protect the system from frost.
