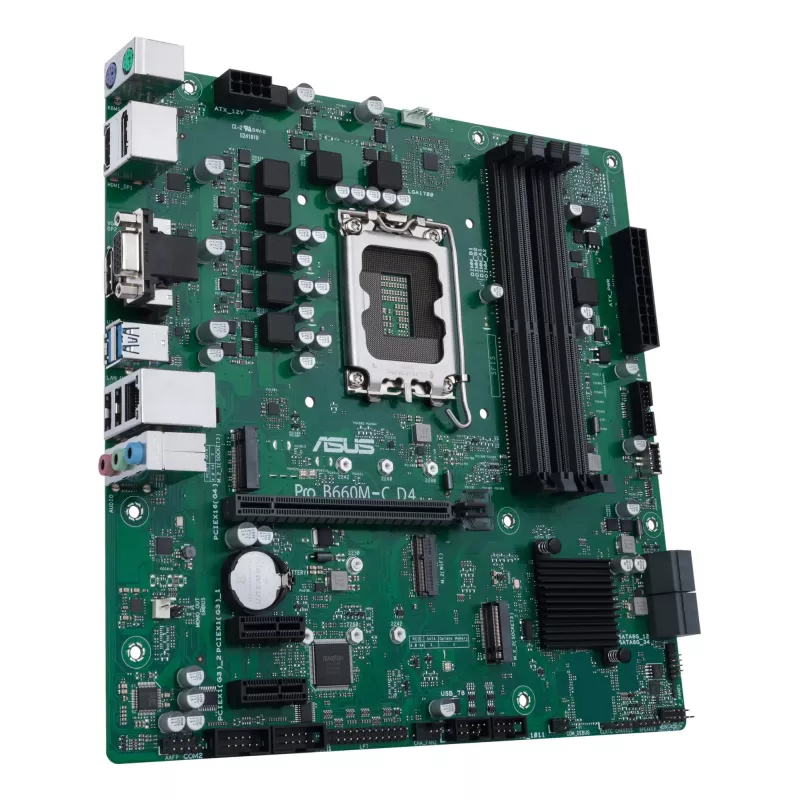

Name: ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX
Brand: ASUS
SKU: 1175625
Price: 206.23 EUR
Availability: OutOfStock

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

206,23 €

Cant.

Agotado

Añadir a la lista de deseos Comparar este producto

Stock AgotadoSin stock Código 1175625 Marca ASUS Modelo 90MB19B0-M1EAYC Garantía 3 años

CategoríaPlacas base

Envíos y devoluciones

Vista rápida

Placa base ASRock Z790 PG Lightning DDR5 ATX LGA1700

165,56 €

Sin IVA:136,83 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 ATX, DDR5, 4x DIMM, 4x M.2, Wi-Fi 7, LAN 2.5Gb

224,72 €

Sin IVA:185,72 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base Gigabyte B550 Gaming X V2 AMD B550 Socket AM4 ATX

121,79 €

Sin IVA:100,65 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASRock H610M-HDV/M.2+ D5 placa base, Intel H610, LGA 1700, Micro-ATX, 2x DDR5 DIMM (máx. 96 GB), PCIe 4.0 x16, 1x M.2, 4x SATA III, HDMI, DisplayPort, VGA, USB-C 3.2 Gen 1, Gigabit LAN

67,45 €

Sin IVA:55,74 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASRock X870E Taichi Lite placa base AM5 ATX

384,90 €

Sin IVA:318,10 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base ASRock B860M Steel Legend WiFi — Intel B860, LGA 1851, micro‑ATX, DDR5, 4 DIMM, Wi‑Fi 6E, 2.5GbE

190,19 €

Sin IVA:157,18 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

Placa base ASRock B850 Pro RS WiFi AM5 ATX

175,09 €

Sin IVA:144,70 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX

358,51 €

Sin IVA:296,29 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

GIGABYTE Z790 AORUS ELITE AX placa base - compatible con Intel Core 14.ª generación, 16*+2+1 fases Digital VRM, hasta 7600 MHz DDR5 (OC), 4x PCIe 4.0 M.2, Wi-Fi 6E, 2,5 GbE LAN, USB 3.2 Gen 2x2

230,42 €

Sin IVA:190,43 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

Vista rápida

GIGABYTE B760M DS3H WIFI6E GEN5 Placa base - Compatible con CPUs Intel Core 14.ª gen., VRM digital de fases 6+2+1, hasta 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2

136,55 €

Sin IVA:112,85 €

Añadir al carrito Añadir a la lista de deseos Comparar este producto

html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)>*{opacity:1!important;visibility:visible!important;pointer-events:auto!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::before,html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::after{display:none!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready){min-height:0!important}

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
* ASUS Control Center Express is only available for CSM motherboards. Please consult your local sales representative for more information

PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

Enhances system security from bottom to top

ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

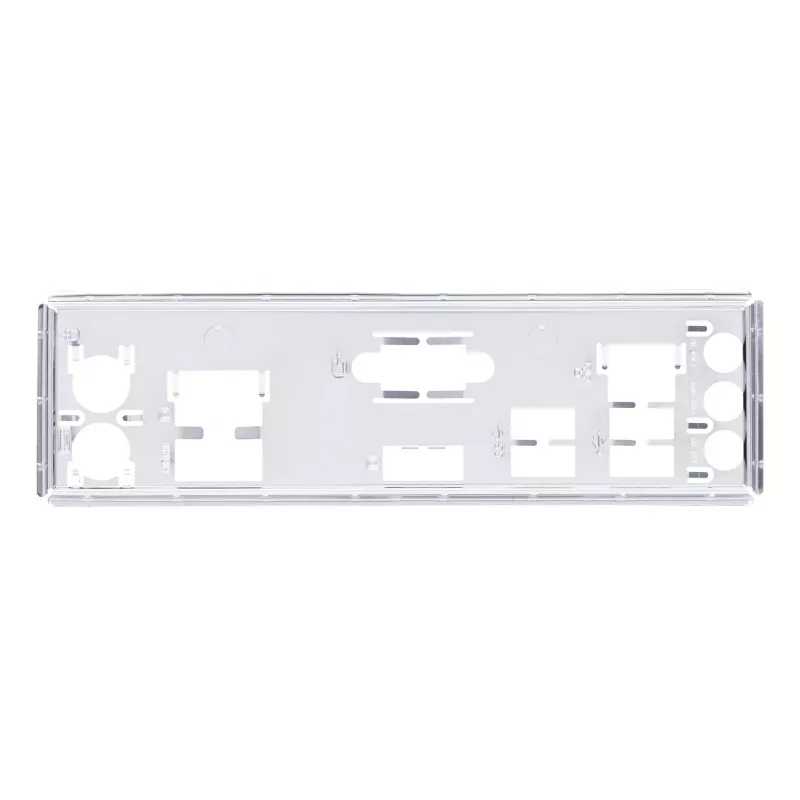

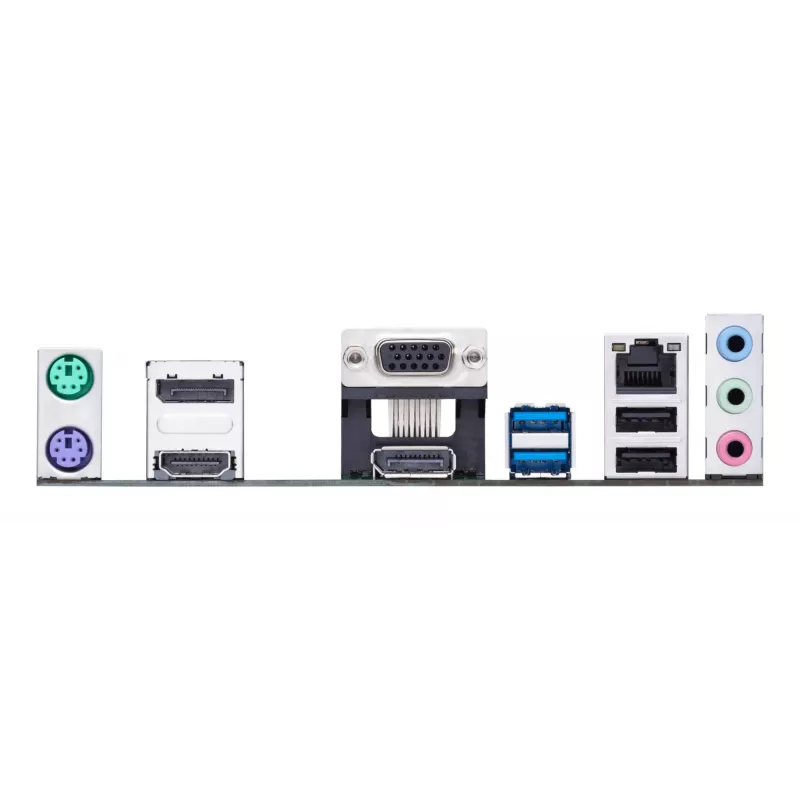

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.+

ASUS MANAGEMENT SUITE
Make IT work more efficiency!

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.

Box Headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors
Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Aspectos destacados

Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
PC micro ATX Intel B660 Realtek ALC897 7.1 channels
DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA RAID support
128 Mbit
Gigabit Ethernet Bluetooth 5.2

Especificaciones

Altura

51 mm

Ancho

244 mm

Bluetooth

Yes

Cables incluidos

SATA

Canales de memoria

Dual-channel

Canales de salida de audio

7.1 channels

Chip de audio

Realtek ALC897

Chipset de la placa base

Intel B660

Código del Sistema Armonizado (HS)

84733020

Color del producto

Green

Compatibilidad con tecnología de procesamiento en paralelo

Not supported

Compatibilidad ECC

Non-ECC

Compatibilidad RAID

Yes

Componente para

Conector de alimentación ATX (24 pines)

Yes

Conector de alimentación de 12 V

Yes

Conector de alimentación EPS (8 pines)

Yes

Conector de audio del panel frontal

Yes

Conector de pines para LED RGB

Yes

Conector de ventilador de CPU

Yes

Conectores USB 2.0

Conectores USB 3.2 Gen 1 (3.1 Gen 1)

Conectores USB 3.2 Gen 2 (3.1 Gen 2)

Controladores incluidos

Yes

Entrada de micrófono

Yes

Estándar wifi superior

Not available

Ethernet LAN

Yes

Fabricante del procesador

Intel

Familia de chipset de la placa base

Intel

Formato de la placa base

micro ATX

Interfaces de unidades de almacenamiento compatibles

M.2, SATA

Memoria interna máxima

128 GB

Memoria sin búfer

Yes

Niveles RAID

0, 1, 5, 10

Número de conectores COM

Número de conectores de ventilador de chasis

Número de conectores SATA

Número de conectores SATA II

Número de conectores SATA III

Número de pantallas compatibles

Número de puertos DisplayPort

Número de puertos DVI-D

Número de puertos HDMI

Número de puertos PS/2

Número de puertos USB 2.0

Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo A

Número de puertos USB 3.2 Gen 1 (3.1 Gen 1) tipo C

Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo A

Número de puertos USB 3.2 Gen 2 (3.1 Gen 2) tipo C

Número de puertos VGA (D-Sub)

Número de ranuras de memoria

Número de ranuras M.2 (M)

Número máximo de procesadores SMP

Peso

634 g

Profundidad

244 mm

Puertos Ethernet LAN (RJ-45)

Ranuras PCI

Ranuras PCI Express x1 (Gen 3.x)

Ranuras PCI Express x16 (Gen 4.x)

Salidas de auriculares

Serie de procesadores compatible

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

Sistemas operativos Windows compatibles

Windows 10 x64, Windows 11 x64

Tamaño de memoria de la BIOS

128 Mbit

Tarjeta gráfica integrada

Tipo de interfaz Ethernet

Gigabit Ethernet

Tipo de ranuras de memoria

DIMM

Tipos de memoria compatibles

DDR4-SDRAM

Tipos de unidades de almacenamiento compatibles

HDD & SSD

Velocidades de reloj de memoria compatibles

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz

Versión de Bluetooth

5.2

Versión de DisplayPort

1.4

Versión de HDMI

2.1

Wifi

Zócalo del procesador

LGA 1700

Zócalos de procesador compatibles

LGA 1700

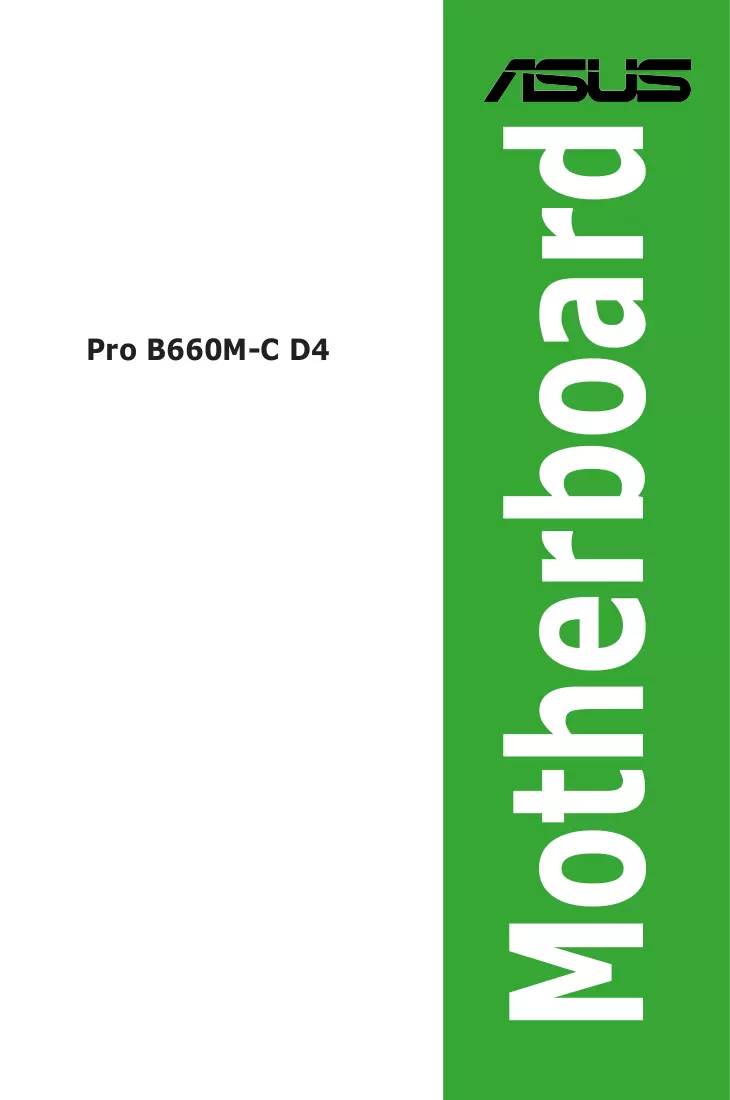

Manual

Abrir documento

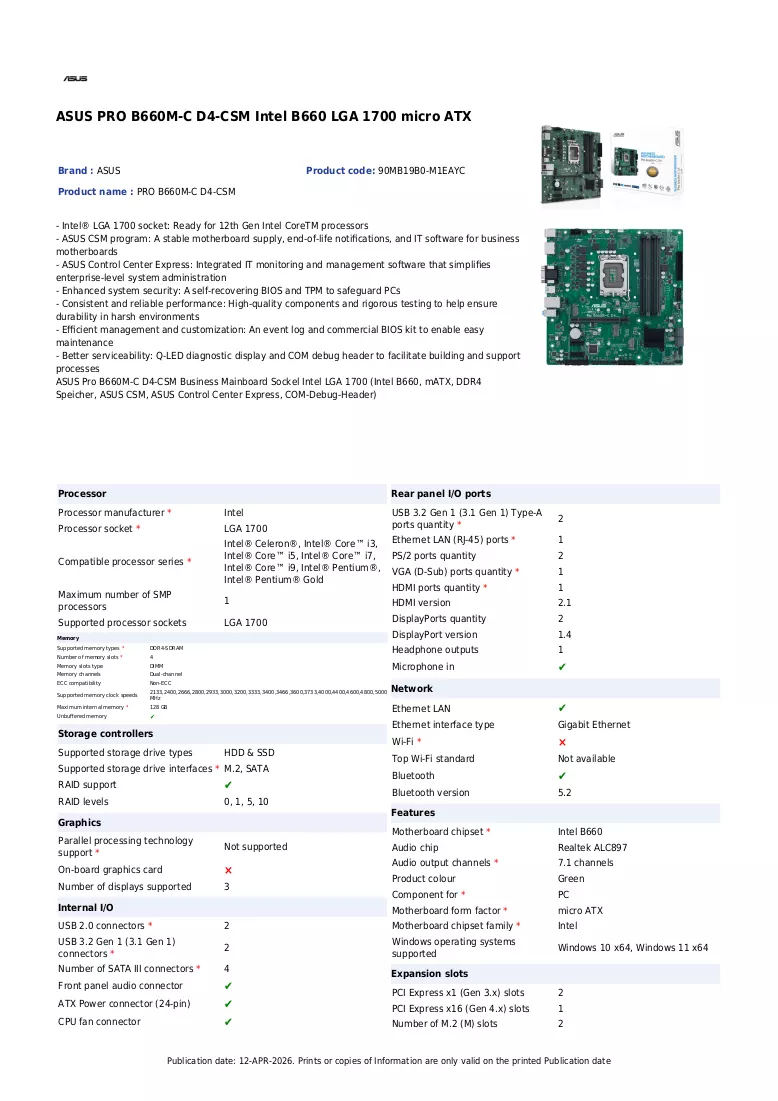

Folleto

Abrir documento

El historial de precios aún no está disponible

Todavía estamos recopilando suficientes datos de precios diarios de este producto.

Análisis de expertos

Análisis independientes de medios tecnológicos

servethehome.comPatrick2022-04-05

9/10

Veredicto: It has been a long time since we reviewed an ASUS CSM motherboard. We looked and although we have done many, the last was the ASUS B85M-E/CSM Motherboard Review in 2013. The line has certainly changed diverging more from the consumer platforms than it had...

Lee el análisis completo en servethehome.com →
