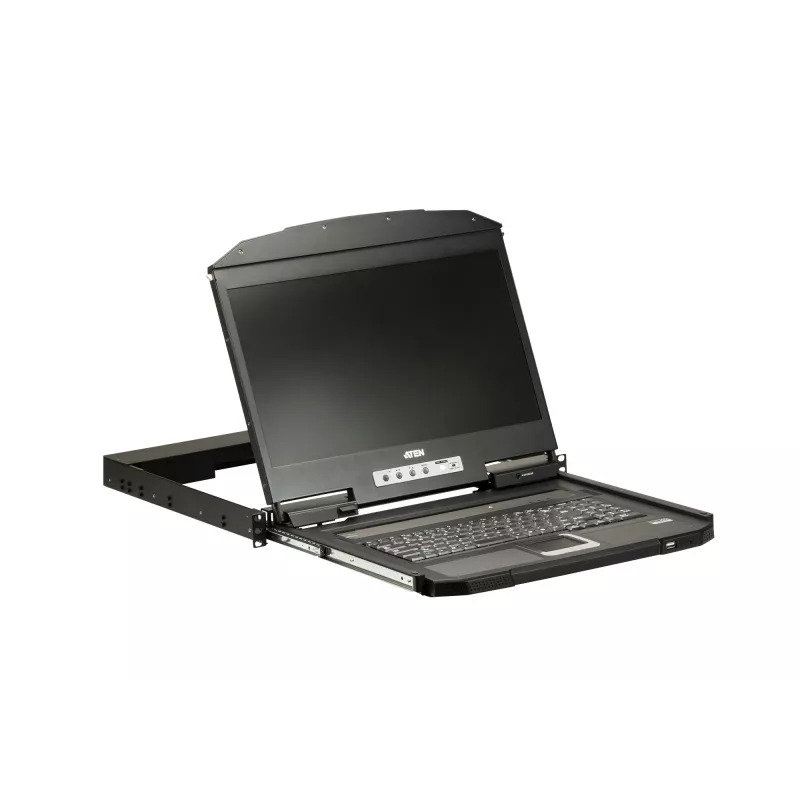

ATEN CL3700NW consola de rack 47 cm (18.5") 1920 x 1080 píxeles metal, plástico negro 1U

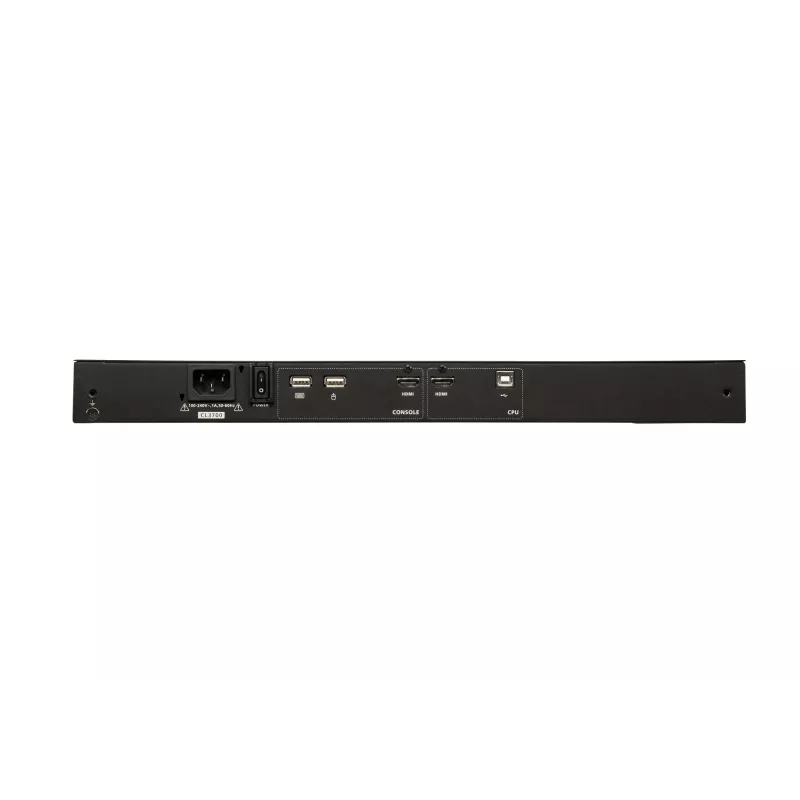

The ATEN CL3700NW is a 1U short-depth single-rail USB HDMI LCD console with an 18.5" LED-backlit widescreen display (1920 x 1080) and an integrated keyboard and touchpad. Designed to fit all 19" equipment cabinets — including shallow racks and compact environments such as outside broadcast vans and small control rooms — the unit provides a space-saving front-end sliding console for compatible HDMI KVM switches. It includes front-panel USB for an external mouse and rear-panel ports for a second KVM console (USB keyboard/mouse and HDMI monitor). Cables included: AC, HDMI, USB.

Advantages

The CL3700NW combines a full HD widescreen monitor with a compact 1U short-depth design to maximize usable rack space while maintaining clear video quality and convenient local or external console control. Broad voltage compatibility (100–240 V AC), integrated keyboard and touchpad, and included cables simplify installation and deployment in constrained environments.

Suitable for

• Shallow 19" racks and compact server cabinets
• Mobile broadcast units and outside broadcast (OB) vans
• Small control rooms and monitoring stations
• Environments requiring a dedicated front-end console for an HDMI KVM switch

Key specifications

• Display: 18.5" LED-backlit widescreen, 1920 x 1080 (Full HD)
• Video port type: HDMI
• Keyboard / Mouse ports: USB
• Power: AC 100–240 V input
• Dimensions (W×H×D): 477 × 42.8 × 480.6 mm
• Weight: 9.01 kg
• Number of computers controlled: 1
• Colour: Black
• Cables included: AC, HDMI, USB

How to use

Mount the CL3700NW in a 19" rack using the front-sliding mechanism and secure it according to the rack manufacturer’s instructions. Connect the unit to the HDMI KVM switch using the supplied HDMI cable, and attach the keyboard/mouse USB connections to the KVM switch or computers as required. Plug the AC power cable into a suitable mains outlet (100–240 V). For local mouse control, use the front-panel USB mouse port; for a secondary console, connect the rear-panel HDMI and USB ports.

Recommendations

Install the console in shallow racks or mobile units where space is limited, keep ventilation around the unit unobstructed, and use the supplied cables for guaranteed compatibility. For best video performance, use high-quality HDMI cabling when connecting to the KVM switch or external monitor.
