ATEN CL5708N Consola de rack 48,3 cm (19") 1280 x 1024 píxeles Metal, plástico Negro 1U

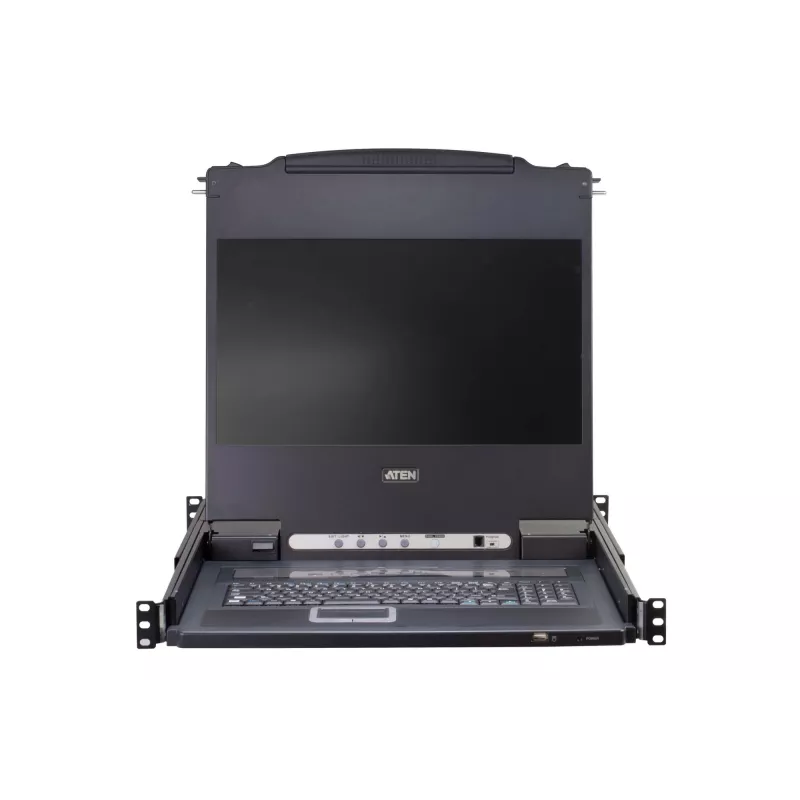

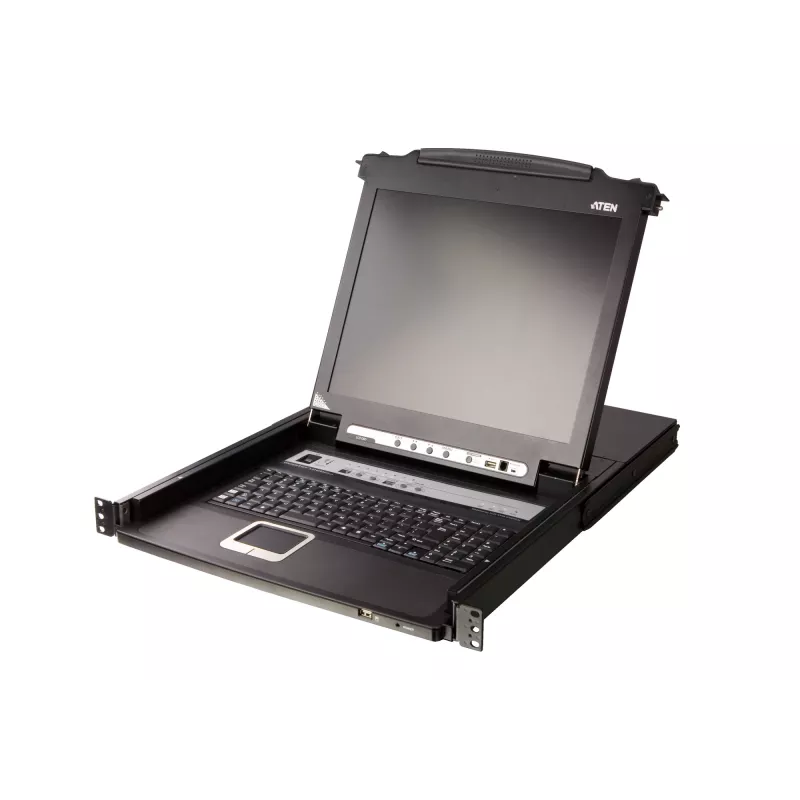

The ATEN CL5708N Rack mounting Black is a 1U Slideaway™ LCD KVM switch that integrates a 19" LED-backlit monitor, keyboard and USB Type-A mouse connectivity into a compact rack-mountable housing. Designed to control up to 8 computers from a single KVM console, the unit supports daisy-chaining of up to 31 additional KVM switches to manage as many as 256 computers. Its metal and plastic housing, black finish, and compact dimensions (689.2 mm W x 480 mm D x 44 mm H) make it suitable for space-constrained server racks and equipment rooms. The CL5708N provides a maximum video resolution of 1280 x 1024 and a scan interval of approximately 1.255 seconds for efficient multi-server management.

Advantages

The CL5708N combines monitor, keyboard and mouse into a single 1U sliding console to reduce rack footprint and simplify server access. Built with durable metal and plastic construction and a black finish, the unit is made for continuous use in rack environments. USB Type-A mouse support ensures compatibility with common USB pointing devices, while the integrated 19" LCD display with 1280 x 1024 resolution provides clear video for server management. The ability to daisy-chain additional KVM switches expands the number of controllable systems without adding extra consoles.

Suitable for

• Small to medium server rooms and data closets where rack space is limited
• IT administrators who need centralized access to up to 8 servers from one console
• Environments that require scalable KVM control via daisy-chaining to manage larger server farms
• Racks requiring a durable, space-saving console with integrated keyboard, monitor and mouse

Key specifications

• Form factor: 1U rack-mountable sliding LCD console with integrated keyboard and touchpad
• Integrated display: 19" LED-backlit LCD, maximum resolution 1280 x 1024 pixels
• Number of controlled computers: 8 (expandable via daisy-chaining up to 256)
• Mouse interface: USB Type-A
• Scan interval: 1.255 seconds (auto-scan mode)
• Construction: metal and plastic housing
• Dimensions: 689.2 mm (W) x 480 mm (D) x 44 mm (H)
• Colour: Black
• Weight: 13.39 kg

How to use

Install the CL5708N into a standard 19" rack occupying a single 1U space and secure the slideaway console per rack-mount instructions. Connect keyboard, monitor and mouse via the integrated console interface and attach KVM cables from the CL5708N to the target computers' USB or PS/2 ports as required. Use the on-screen display and front-panel controls to switch between connected systems or enable auto-scan with the specified scan interval. To expand control, daisy-chain additional compatible ATEN KVM switches to the unit following manufacturer cabling guidelines.

Recommendations

Place the CL5708N in a well-ventilated rack location to ensure adequate airflow. Use quality shielded KVM cables of appropriate length to minimise signal degradation. When daisy-chaining multiple switches, label connected ports and maintain an organised cable layout to simplify troubleshooting and future reconfiguration.
