ATEN CL6708MW Consola de rack 43,9 cm (17,3") negro 1U

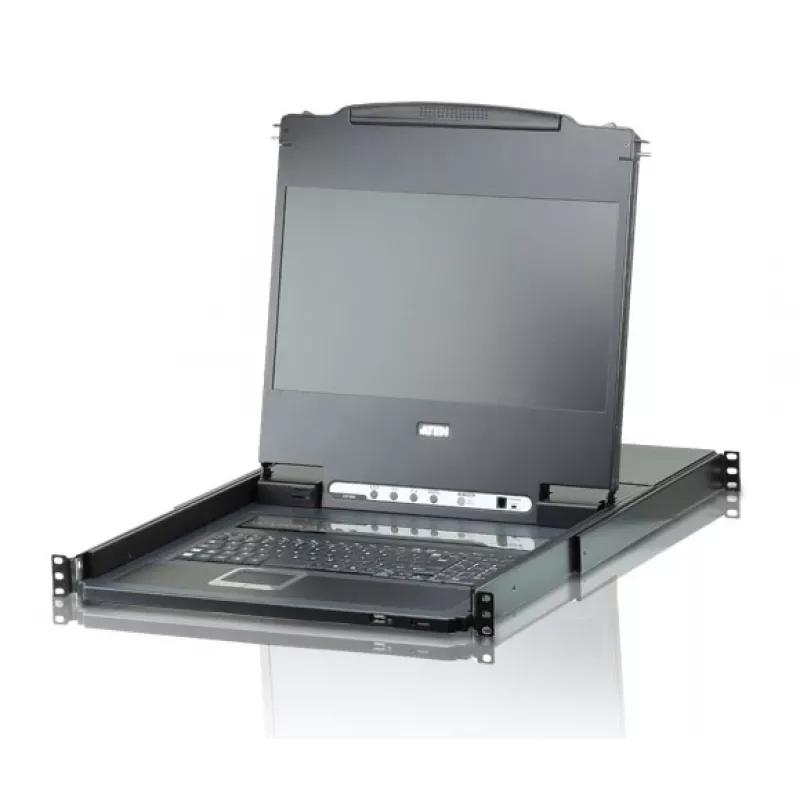

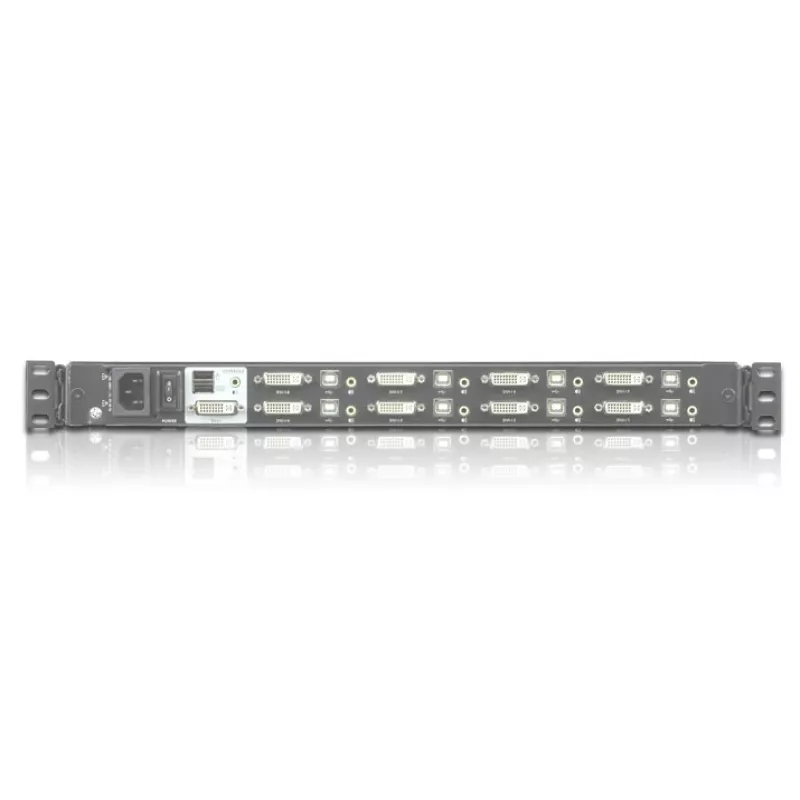

The ATEN CL6708MW is a 1U rack-mountable LCD KVM switch that combines a 17.3" LED-backlit display, full keyboard and touchpad in a compact housing. It provides native DVI compatibility with support for full HD 1920 x 1080 resolution and uses the YUV video format for improved compatibility with high-definition sources. The unit is HDCP compatible and can scale to control up to 64 computers when cascaded with up to eight CS1768 8-port KVM switches. The CL6708MW accepts 100–240 V at 50–60 Hz and includes an LED illumination light to improve keyboard and touchpad visibility in low-light environments.

Advantages

The CL6708MW offers native DVI/DisplayPort video input with full HD output, providing clearer digital video compared to analog interfaces. Its compact 1U design integrates a 17.3" LED-backlit LCD, keyboard and touchpad for space-efficient rack deployment. HDCP compatibility ensures support for protected content and the YUV video format increases interoperability with high-definition devices such as NVRs. Cascading capability enables management of up to 64 computers, and the included LED illumination enhances operability in dim conditions.

Suitable for

• Data centers and server rooms where rack space is limited
• Surveillance and NVR systems requiring HD video compatibility
• Corporate or educational environments that use HDCP-protected media
• IT administrators managing multiple servers centrally

Key specifications

• Display: 17.3" LED-backlit LCD, 1920 x 1080 (Full HD)
• Video port type: DVI/DisplayPort
• Keyboard / Mouse: USB
• Maximum computers controlled: Up to 64 (with cascading via CS1768)
• Power input: 100–240 V, 50–60 Hz
• Weight: 12.7 kg
• Colour: Black

How to use

Mount the CL6708MW in a standard 19" rack (1U). Connect server DVI/DisplayPort video outputs and USB keyboard/mouse ports to the KVM switch ports using appropriate KVM cables. If more ports are required, cascade additional CS1768 switches up to eight units to expand control to 64 computers. Power the unit with an AC supply within the 100–240 V, 50–60 Hz range. Use the integrated keyboard and touchpad and the on-screen display to select and switch between connected computers.

Recommendations

For optimal video compatibility with high-definition sources, use DVI or DisplayPort connections and ensure connected devices support YUV output. When deploying in low-light racks, use the built-in LED illumination to improve usability. For large server installations, plan cascading topology and cable management in advance to maintain signal integrity and accessibility.
