ATEN CL6708MW Consola de rack 43,9 cm (17,3") negro 1U

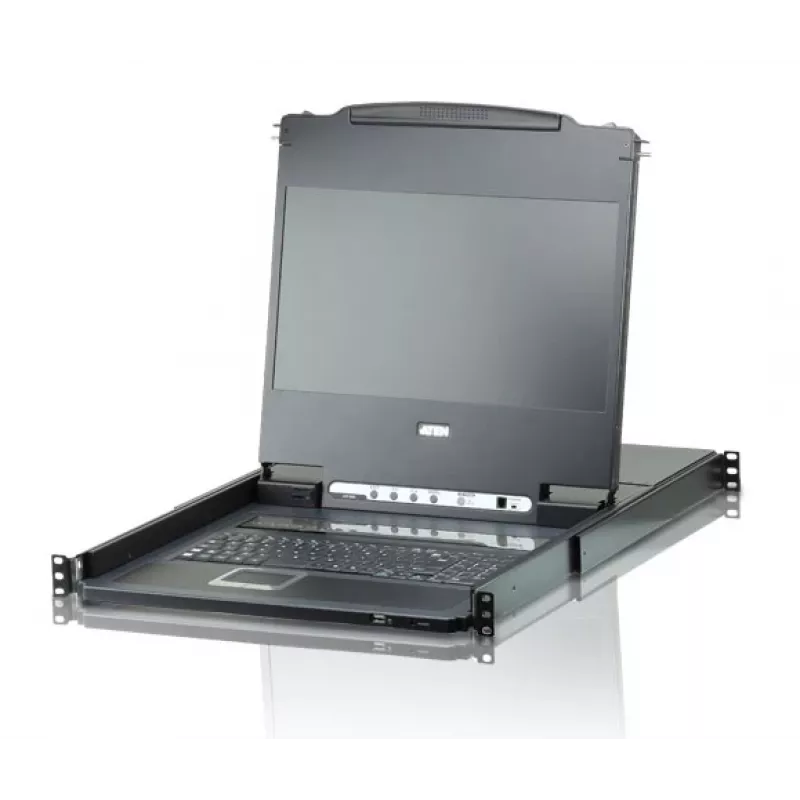

The ATEN CL6708MW is a 1U rack-mountable KVM switch with a built-in 17.3" LED-backlit LCD, full keyboard and touchpad. It provides native DVI compatibility and supports control of up to 64 computers when cascaded with additional CS1768 8-port KVM switches. The integrated display is capable of full HD 1920 x 1080 resolution and uses the YUV video format for improved compatibility with high-definition sources. The unit is HDCP compatible and includes an LED illumination light to aid keyboard and touchpad visibility in low-light environments.

Advantages

The CL6708MW combines a space-saving 1U design with native DVI/DisplayPort video support and HDCP compatibility, delivering clearer digital video than typical analog interfaces. Its 17.3" full HD LCD and YUV support make it suitable for high-definition signals such as NVR outputs. With USB keyboard and mouse connectivity and a built-in illumination light, it provides practical usability for rack environments. The switch can be expanded by cascading up to eight CS1768 units to manage up to 64 systems.

Suitable for

• Server rooms and data centers requiring rack-mounted KVM access
• Corporate, educational, or commercial environments using HDCP-protected or HD video sources
• Installations that need centralized control of multiple computers (up to 64 via cascading)

Key specifications

• Brand: ATEN
• Model: CL6708MW (MPN: CL6708MW-ATA-2XK06GG)
• Form factor: 1U rack-mountable KVM with integrated 17.3" LCD
• Maximum resolution: 1920 x 1080 (Full HD)
• Video port type: DVI / DisplayPort (YUV supported)
• Keyboard / Mouse ports: USB
• Maximum computers controlled: 64 (with cascading CS1768 units)
• Product colour: Black
• Weight: 12.7 kg
• HDCP compatible: Yes

How to use

Mount the CL6708MW in a standard 19" rack using the provided mounting hardware. Connect each target computer to the KVM using the appropriate DVI/DisplayPort and USB cables. Power the unit and, if required, cascade additional CS1768 8-port KVM switches to expand control up to 64 computers. Use the integrated keyboard, touchpad and 17.3" LCD to switch and manage connected systems; adjust the scan interval between 1 and 255 seconds as needed for automatic switching.

Recommendations

For optimal video quality with HD sources, use high-quality DVI or DisplayPort cables and ensure connected devices support YUV or HDCP where applicable. Install the unit in a well-ventilated rack space and use the LED illumination in low-light conditions to improve operator visibility.
