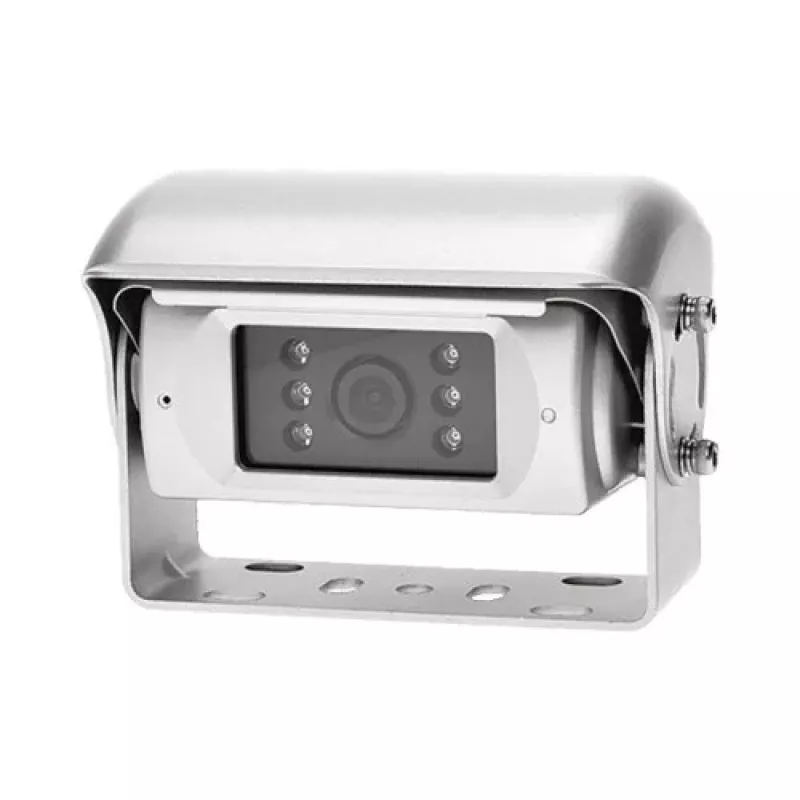

AXION DBC 114065 S1 cámara con obturador

The AXION DBC 114065 S1 Shutter Camera is a robust, high-performance surveillance camera designed for demanding environments. Featuring a 1/3" Sony CCD sensor with 420 TV lines resolution and a wide 140° diagonal viewing angle, it delivers clear and detailed images. Equipped with 18 IR LEDs for night vision, automatic motor-driven shutter, and integrated heating, this camera ensures reliable operation in extreme conditions. Its IP69K protection rating makes it resistant to high-pressure water and dust, ideal for industrial and outdoor use.

Advantages

Exceptional durability with IP69K rating, automatic shutter for privacy, integrated heating for cold climates, and built-in microphone for audio monitoring.

Suitable for

• Industrial facilities
• Outdoor surveillance
• Vehicle rear-view systems
• High-pressure washdown areas

Key specifications

• Image Sensor: 1/3" Sony CCD
• Resolution: 420 TV lines
• Viewing Angle: 140° diagonal, 110° horizontal, 80° vertical
• Night Vision: 18 IR LEDs, 0 Lux (IR on)
• Protection: IP69K
• Operating Voltage: 12-24V DC
• Power Consumption: Max 5W
• Operating Temperature: -30°C to +70°C
• Video Standard: PAL/NTSC auto-switching
• Video Output: 1.0 Vp-p, 75 Ohm
• Connector: 4-pin screw connector
• Shutter: Automatic motor-driven
• Heating: Integrated automatic
• Microphone: Integrated
• Housing: Robust aluminum alloy
• Mounting: Universal bracket, surface mount
• Mirror Function: Selectable

Recommendations

For optimal performance, use a regulated 12V or 24V DC power supply. Ensure proper mounting to withstand vibration and harsh conditions.
