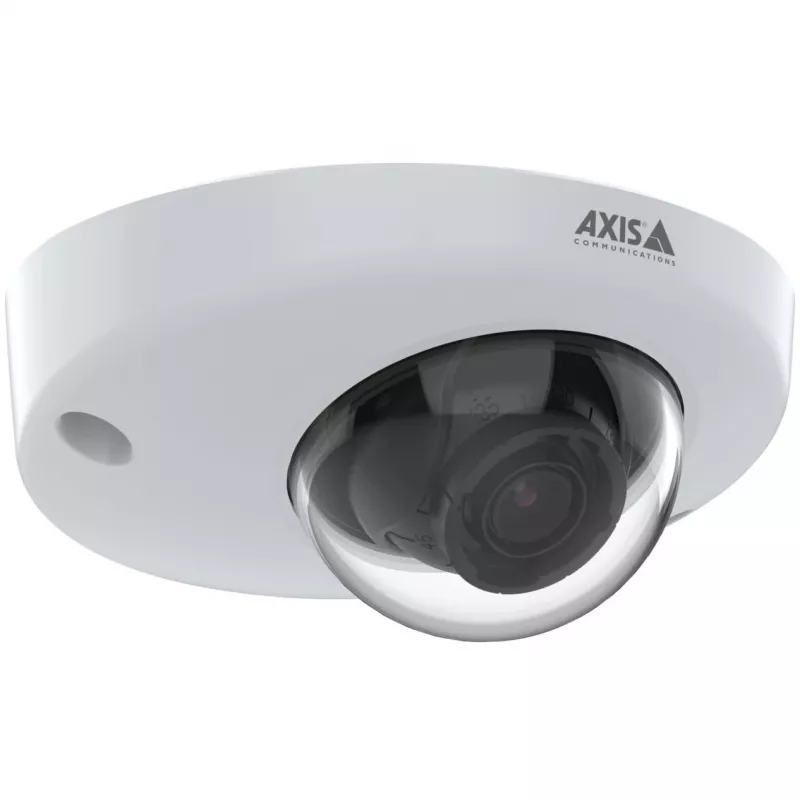

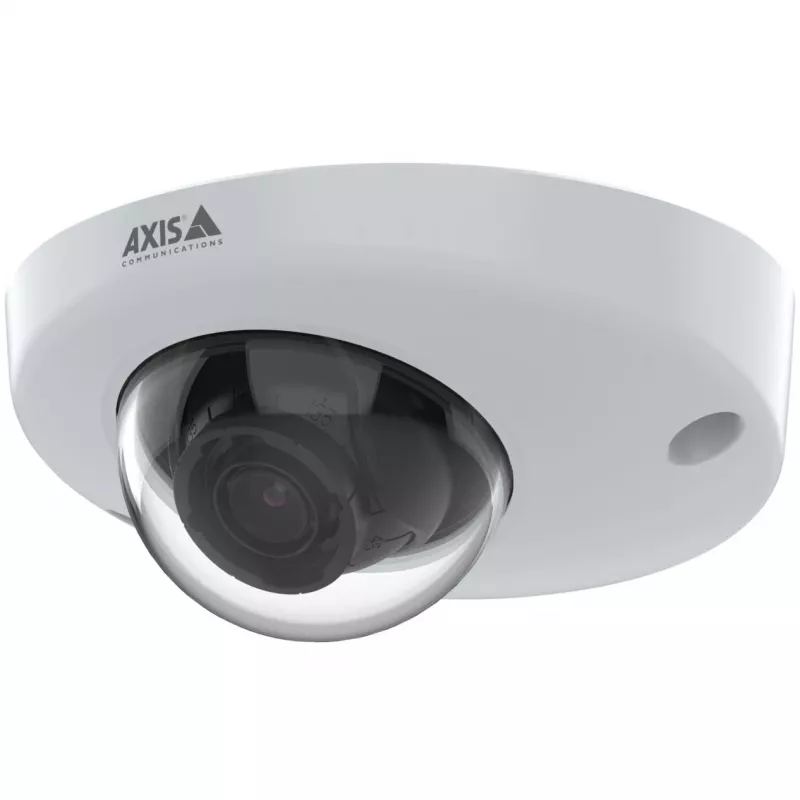

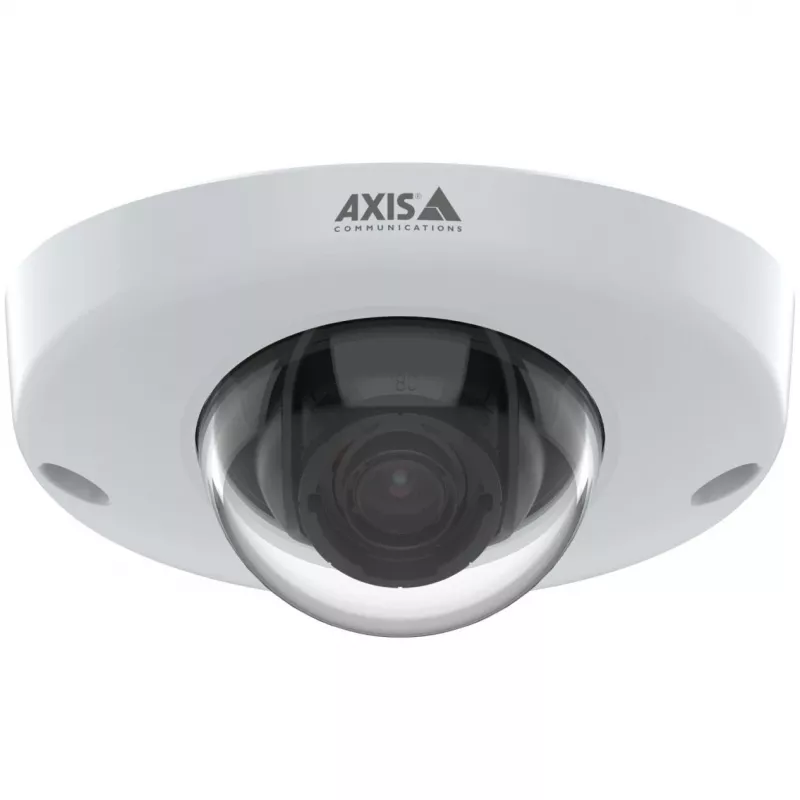

AXIS P3905-R Mk III cámara domo de red, M12, 2,8 mm, pack de 10 (03117-021)

The AXIS P3905-R Mk III is a robust network dome camera designed for onboard surveillance in rail vehicles such as trains and trams. It delivers high performance under varying light conditions and is built to withstand shocks and vibrations.

Key features

• 2 MP onboard camera with Forensic WDR and Lightfinder for clear images in challenging light
• Traffic light mode for detecting traffic light colors in darkness
• IK10, IP66, and IP67 certified
• Available with M12 or RJ45 connector
• Integrated cybersecurity features including AXIS Edge Vault
• Axis Zipstream technology for reduced storage and bandwidth
• Digital PTZ, tour recording, preset points, and wide dynamic range (WDR)
• Video streaming, noise reduction, and privacy masking
• Password protection, video motion detection, and pixel counter

Specifications

• Brand: Axis
• MPN: 03117-021
• Display resolution: 1920 x 1080 pixels
• Type: IP security camera
• Supported positioning: Indoor
• Transmission technology: Wired
• Mounting type: Ceiling
• Product color: Black, White
• Form factor: Dome
• Housing material: Aluminium
• International protection (IP) code: IP66, IP67
• IK code: IK10
• Minimum illumination: 0.02 lux
• Rotation angle: 350°
• Viewing angle (horizontal): 107°
• Viewing angle (vertical): 56°
• Tilt angle range: 15 - 90°
• Pan range: -30 - 30°
• Camera pixel size: 2.8 µm
• Camera shutter speed: 1/19000 - 1/5 s
• Number of privacy masking areas: 32
• Number of sensors: 1
• Image sensor size: 25.4 / 2.9 mm (1 / 2.9")
• Sensor type: CMOS
• Number of lenses: 1
• Identification distance: 21.1 m
• Observation distance: 7.4 m
• Recognition distance: 4.2 m
• Maximum aperture number: 1.2
• Detection distance: 2.1 m
• Fixed focal length: 2.8 mm
• Closest focusing distance: 0.3 m
• Maximum resolution: 1920 x 1080 pixels
• Total megapixels: 2 MP
• Supported video formats: H.264, H.265, M-JPEG
• Supported graphics resolutions: 320 x 240, 640 x 360, 640 x 400, 1280 x 800, 1280 x 960, 1920 x 1080 (HD 1080)
• Up to 30 frames per second: 30 fps
• Noise reduction technology: 2D noise reduction, 3D noise reduction
• Image quality adjustment: Brightness, Contrast, Sharpness
• Bit rate control: Variable Bitrate (VBR)
• Network standards: IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
• Streaming method: Multicasting
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
• Flash memory: 512 MB
• Memory capacity: 1024 MB
• Supported security algorithms: 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP
• Alert notification type: E-mail
• Power source: PoE
• Power consumption (typical): 2.2 W
• Power consumption (max): 3.8 W
• Operating temperature: -30 - 55 °C
• Storage temperature range: -40 - 65 °C
• Relative humidity in operation: 10 - 100%
• Width: 110 mm
• Depth: 110 mm
• Height: 50 mm
• Weight: 241 g
• Compliance certificates: REACH, RoHS
• Number of cameras: 10
• Does not contain: CFR, PVC/BFR
