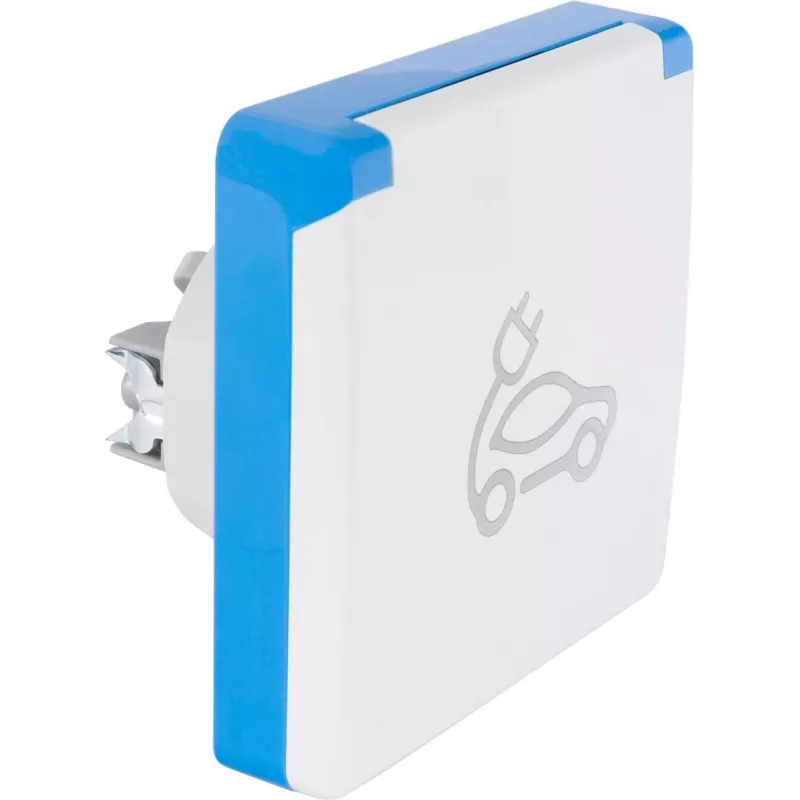

BACHMANN toma de carga para coche Schuko empotrable negra

The BACHMANN Schuko Auto Charging Socket Flush-Mounted is a robust and reliable power outlet designed specifically for use in caravans, motorhomes, boats, and other vehicles. This flush-mounted (unterputz) variant provides a secure and discreet installation, ensuring a safe power supply for your mobile living or working space. With its Schuko Type F socket, it offers universal compatibility with standard European plugs.

Advantages

This charging socket is built to withstand the demanding conditions of mobile environments. Its flush-mount design saves space and provides a clean, integrated look. The screw terminals ensure a secure and durable electrical connection, while the IP20 protection class guards against solid objects. The socket is compliant with DIN VDE 0620-1, guaranteeing high safety standards.

Suitable for

• Caravans and motorhomes
• Boats and yachts
• Campervans and RVs
• Mobile workshops and service vehicles
• Any vehicle requiring a standard power outlet

Key specifications

• Socket Type: Schuko Type F (Schutzkontakt)
• Mounting Type: Flush-mounted (Unterputz)
• Rated Voltage: 230 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Number of Poles: 2P+E (2-pole + Earth)
• Material: Plastic
• Colour: Black
• Connection Type: Screw terminals
• Protection Class: IP20
• Operating Temperature: -5°C to +40°C
• Standard: DIN VDE 0620-1
• Mounting Hole Diameter: Approx. 45-48 mm
• Cable Entry: Rear
• Compatibility: Standard flush-mount boxes (e.g., 45mm diameter)

Recommendations

For optimal performance and safety, ensure that the socket is installed by a qualified electrician. Use appropriate flush-mount boxes and follow all local electrical codes. This socket is ideal for 12V/24V DC to 230V AC inverter systems in vehicles.
