Base de acoplamiento Lenovo 03X6898

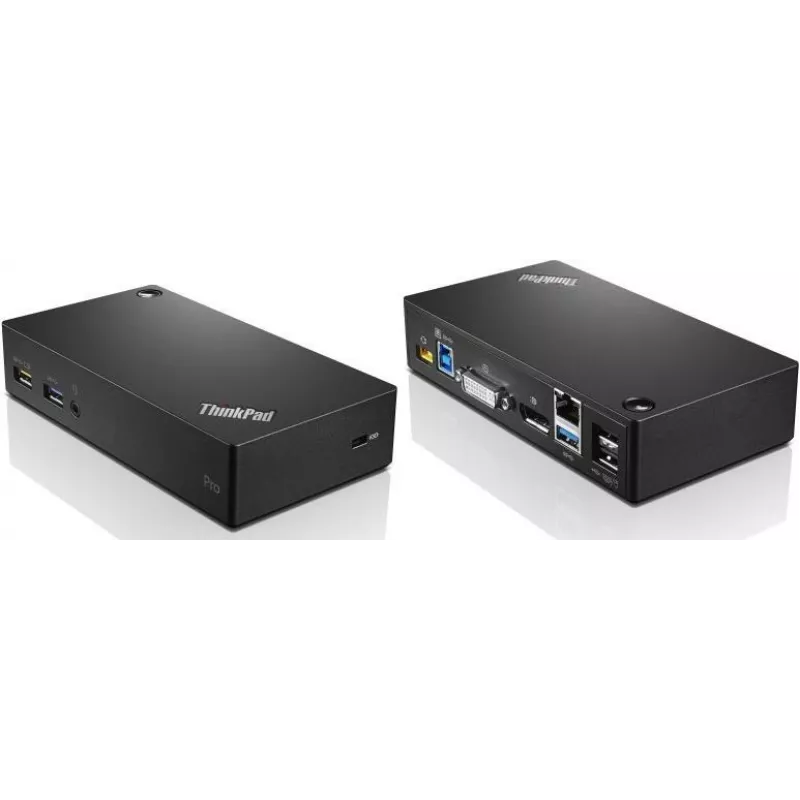

The Lenovo 03X6898 docking station (ThinkPad USB 3.0 Ultra Dock) is a compact wired USB docking solution that expands a Lenovo PC's connectivity through a single USB 3.0/3.2 Gen 1 Type-A cable. It supports connection of displays (including up to 4K via DisplayPort on compatible systems), USB peripherals, Gigabit Ethernet and audio devices while providing power to mobile devices through two always-on USB ports.

Advantages

This docking station provides a single-cable connection to multiple peripherals, enabling quick access to up to two external monitors, five USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, one HDMI and one RJ-45 Gigabit Ethernet port, plus a 3.5 mm audio jack. Its compact black housing (150 mm x 80 mm x 32 mm) and modest 45 W power consumption make it suitable for tidy workspaces. Certified by FCC and CE, it is designed for compatibility with Lenovo systems and everyday office devices.

Suitable for

• Expanding laptop ports for office and home workstations
• Connecting multiple USB peripherals: keyboard, mouse, printer, scanner
• Adding wired Gigabit Ethernet for stable network access
• Attaching external displays via HDMI and DisplayPort (up to 4K where supported)

Key specifications

• Model: Lenovo 03X6898 (FRU03X6898)
• Interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
• USB ports: 5 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0
• Video outputs: 1 × HDMI, DisplayPort support for up to 4K (system dependent)
• Ethernet: 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbit/s)
• Audio: 3.5 mm headphone jack
• Power consumption: 45 W
• Dimensions: 150 mm × 80 mm × 32 mm
• Weight: 0.224 kg
• Colour: Black
• Certifications: FCC, CE

How to use

Connect the docking station to your Lenovo PC using the supplied USB 3.0/3.2 Gen 1 Type-A cable. Attach external monitors to the HDMI or DisplayPort outputs and connect USB devices, keyboard, mouse, printer or scanner to the available USB ports. Plug a network cable into the RJ-45 port for wired Internet access and connect headphones or speakers to the 3.5 mm jack. Two USB always-on ports can be used to charge mobile devices even when the host PC is off, subject to the dock's power state.

Recommendations

Use a high-quality USB 3.0/3.2 Gen 1 cable and up-to-date drivers from Lenovo for optimal display and peripheral performance. For maximum video resolution (4K) verify that your host PC and connected display support the required DisplayPort/HDMI versions and bandwidth.
