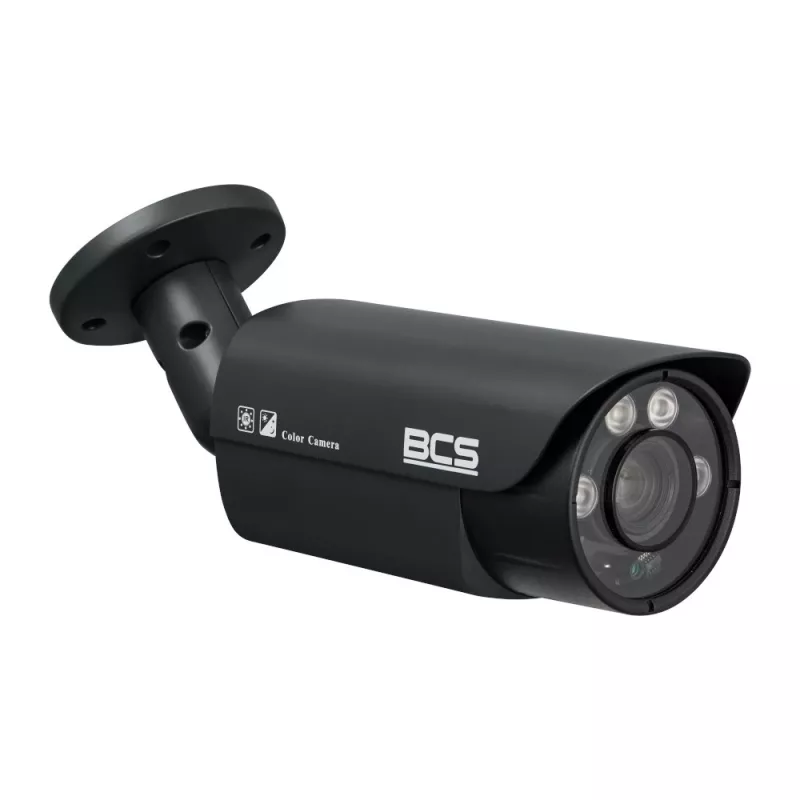

BCS-TA65VSR7-G cámara bullet analógica HD 5MP

The BCS-TA65VSR7-G is a 5MP analog HD bullet camera from the BCS UNIVERSAL product line. It features a 1/2.8'' CMOS STARVIS sensor and a 5~50 mm motorized zoom lens with 10× optical zoom.

Key features

• 5 Mpx resolution
• HD-CVI / AHD / HD-TVI / ANALOG CVBS transmission
• 1/2.8'' CMOS STARVIS sensor
• Progressive Scan scanning system
• Motorized zoom lens with 5~50 mm focal length
• Auto/manual focus and iris
• 10× optical zoom
• Horizontal viewing angle: 9°~59°
• Camera sensitivity: 0.01Lux (F1.2, AGC), 0Lux (B/W, IR)
• Auto/manual white balance (AWB)
• WDR 120dB
• Backlight compensation: BLC / HLC / WDR (120dB)
• Auto/manual shutter
• Auto/manual gain control (AGC)
• 3D DNR noise reduction
• Resolutions: AHD/TVI 5M (2592×1944) @20fps; AHD/TVI/CVI 4M (2560×1440) @25/30fps; 2M (1920×1080) @25/30fps
• Day/night: mechanical ICR infrared filter
• IR LED illuminator, range 70m
• Microphone: Yes
• Audio output: 1
• Menu settings via BCS-XVR recorder
• Power supply: 12V DC
• Power consumption: max 10W
• Housing colour: Graphite
• IP rating: IP66
• Operating conditions: -20°~+60°C, max 95% RH
• Dimensions: Ø300×93mm
• Weight: 1.1 kg

Specifications

• Brand: BCS
• MPN: TA65VSR7-G
• Product line: BCS UNIVERSAL
• Camera type: Bullet
• Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG CVBS
• Resolution: 5 Mpx
• Sensor: 1/2.8'' CMOS STARVIS
• Scanning system: Progressive Scan
• Pixels: 2592(H)×1944(V)
• Lens: Motorized zoom
• Focal length: 5~50 mm
• Aperture: F1.2
• Focus: Auto/manual
• Iris: Auto
• Optical zoom: 10×
• Viewing angle: H: 9°~59°
• Sensitivity: 0.01Lux (F1.2, AGC), 0Lux (B/W, IR)
• White balance: Auto/manual (AWB)
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR (120dB)
• Shutter: Auto/manual
• Gain control: Auto/manual (AGC)
• Noise reduction: 3D DNR
• Resolutions: AHD/TVI 5M (2592×1944) @20fps; AHD/TVI/CVI 4M (2560×1440) @25/30fps; 2M (1920×1080) @25/30fps
• Day/night: Mechanical ICR infrared filter
• Illuminator type: IR LED
• Illuminator range: 70m
• Microphone: Yes
• Audio output: 1
• Menu settings via BCS-XVR recorder
• Power supply: 12V DC
• Power consumption: max 10W
• Housing colour: Graphite
• IP rating: IP66
• Operating conditions: -20°~+60°C, max 95% RH
• Dimensions: Ø300×93mm
• Weight: 1.1 kg
