BETAFPV Pavo20 Pro II PNP SBUS Dron FPV

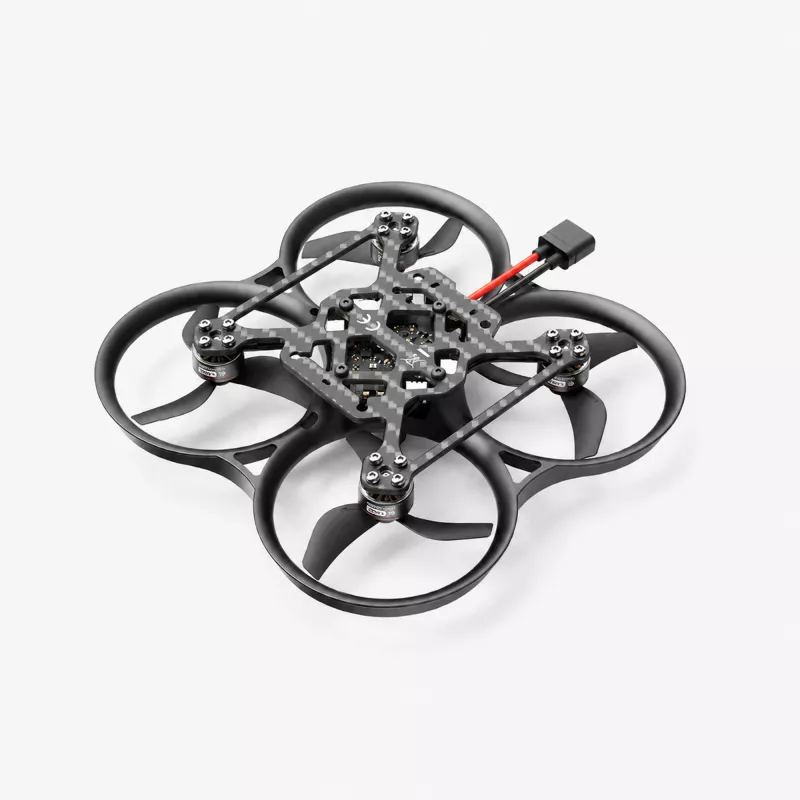

The BETAFPV Pavo20 Pro II PNP SBUS is a 2.2-inch FPV cinewhoop supplied in the PNP SBUS version, designed for pilots who want to configure their own FPV video system while using classic SBUS control. It combines a lightweight frame with a 93.9 mm wheelbase and propeller guards for precise manoeuvres and stable handling.

Performance comes from LAVA Series 1104 7200KV brushless motors paired with Gemfan 2218 3-blade propellers, managed by an F4 2–3S 20A AIO FC V1 flight controller with built-in 9V 2A and 5V 3A BECs. The NightFire RGB LED system provides visibility and a distinctive look.

Key features

• 2.2-inch FPV cinewhoop in PNP SBUS version
• SBUS receiver for compatible RC systems
• FPV video system not included
• Lightweight frame with propeller guards
• LAVA Series 1104 7200KV brushless motors
• Gemfan 2218 3-blade propellers (1.5 mm shaft)
• F4 2–3S 20A AIO FC V1 flight controller
• Built-in 9V 2A and 5V 3A BECs
• 20A ESC
• NightFire RGB LED system with several lighting modes and colours

Specifications

• Brand: Betafpv
• MPN: 2132158
• Model: BETAFPV Pavo20 Pro II Brushless Whoop Quadcopter
• Version: PNP SBUS
• Size: 2.2"
• Wheelbase: 93.9 mm
• Flight controller: F4 2–3S 20A AIO FC V1
• Frame: Pavo20 Pro II Brushless Frame
• Motors: LAVA Series 1104 7200KV Brushless Motors
• Propellers: Gemfan 2218 3-Blade (1.5 mm shaft)
• Receiver: SBUS
• Power supply: 3S (XT30)
• ESC: 20A AIO

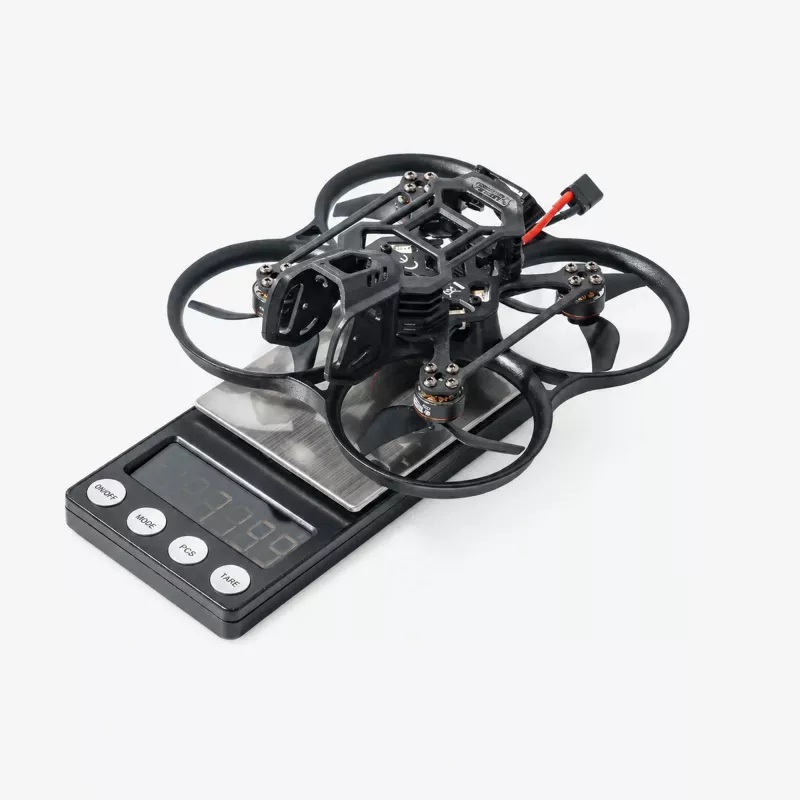

• Weight: 65.2 g
• Lighting: NightFire RGB LED Strip
• Battery compartment: 20 mm
• Recommended batteries: LAVA 3S 450–680 mAh 75C

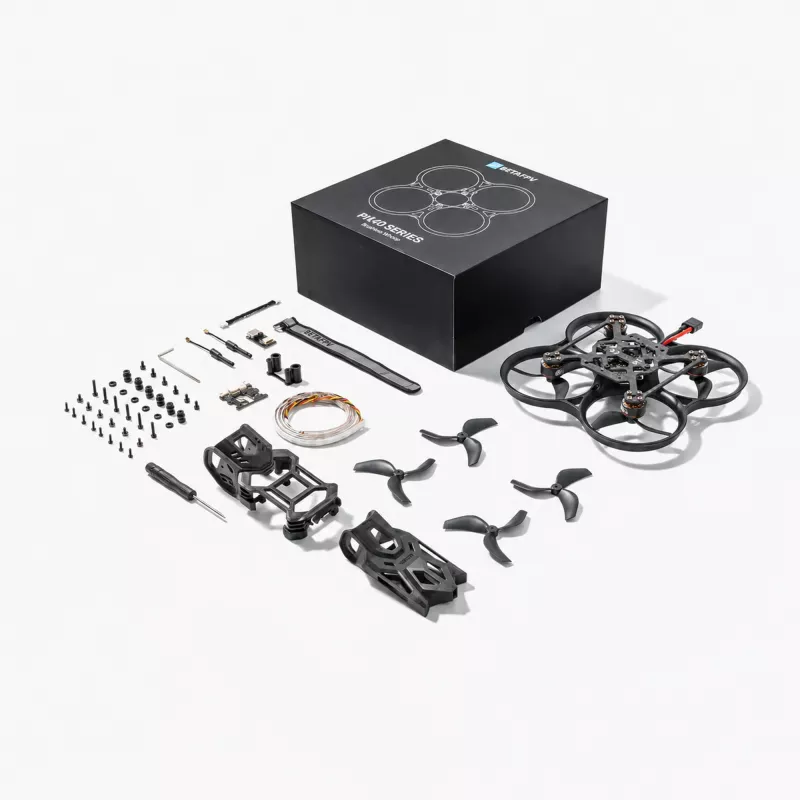

Package contents

• 1 × Pavo20 Pro II Brushless Whoop Quadcopter (PNP SBUS)
• 4 × Gemfan 2218 3-Blade propeller (1.5 mm shaft)
• 1 × Type-C to SH1.0 adapter
• 1 × SH1.0-4Pin adapter cable
• 1 × SH1.0-6Pin HD cable (100 mm)
• 1 × RGB LED strip (500 mm)
• 1 × RGB board
• 2 × 5.8G VTX antenna mount
• 1 × H1.5 hex screwdriver
• 1 × user manual
