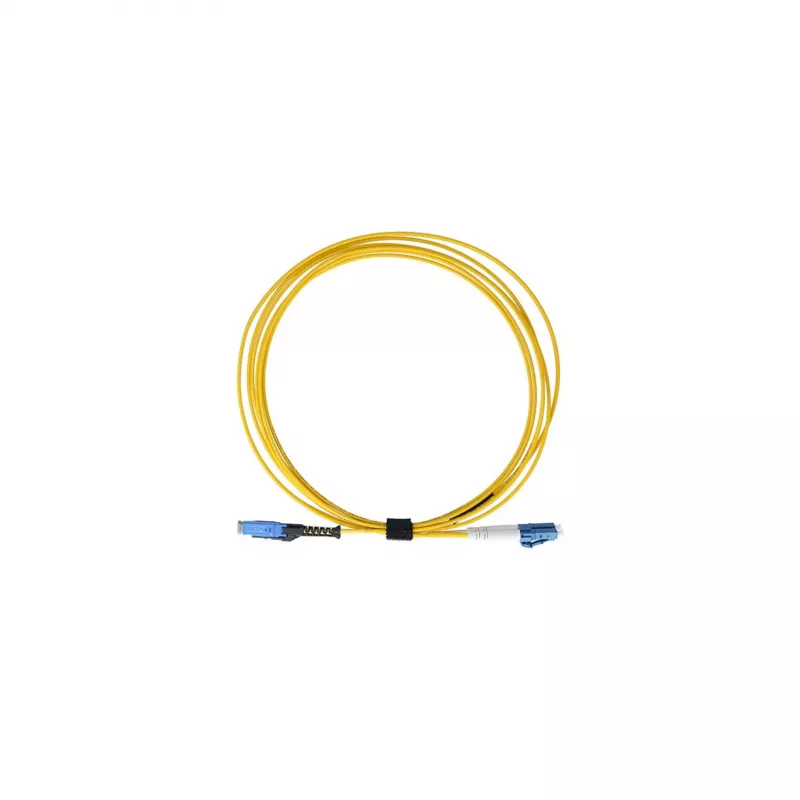

BlueOptics Cable de Fibra Óptica Dúplex, MDC-UPC a LC-UPC, Monomodo OS2, 3m, Azul

The BlueOptics Duplex Fiber Optic Patch Cable SFP9231BU3MK is a high-performance singlemode patch cord designed for reliable data transmission in enterprise networks, data centers, and telecommunications. Featuring MDC-UPC to LC-UPC connectors, this 3-meter cable supports OS2 fiber class with G.657.A1 bend-insensitive technology, ensuring low signal loss and high return loss. The blue LSZH jacket provides durability and safety in indoor installations.

Advantages

This patch cable offers exceptional bend resistance with a minimum bend radius of 10 mm, making it ideal for tight cable management. The UPC polish ensures low insertion loss (≤0.25 dB) and high return loss (≥50 dB), guaranteeing optimal signal integrity. The duplex configuration supports bidirectional communication, and the LSZH jacket reduces toxic fumes in case of fire.

Suitable for

• Fiber optic network connections in data centers
• Enterprise LAN and SAN environments
• Telecommunications and FTTH applications
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Class: OS2 (E9/125µm)
• ITU-T Standard: G.657.A1
• Connector A: MDC-UPC
• Connector B: LC-UPC
• Configuration: Duplex
• Length: 3 meters
• Jacket Color: Blue
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Connector Polish: UPC
• Minimum Bend Radius: 10 mm
• Insertion Loss (Typical): ≤ 0.25 dB
• Return Loss (Typical): ≥ 50 dB
• Jacket Material: LSZH
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with compatible SFP transceivers and ensure proper cable management to maintain bend radius. This cable is ideal for high-density patching areas where space is limited.
