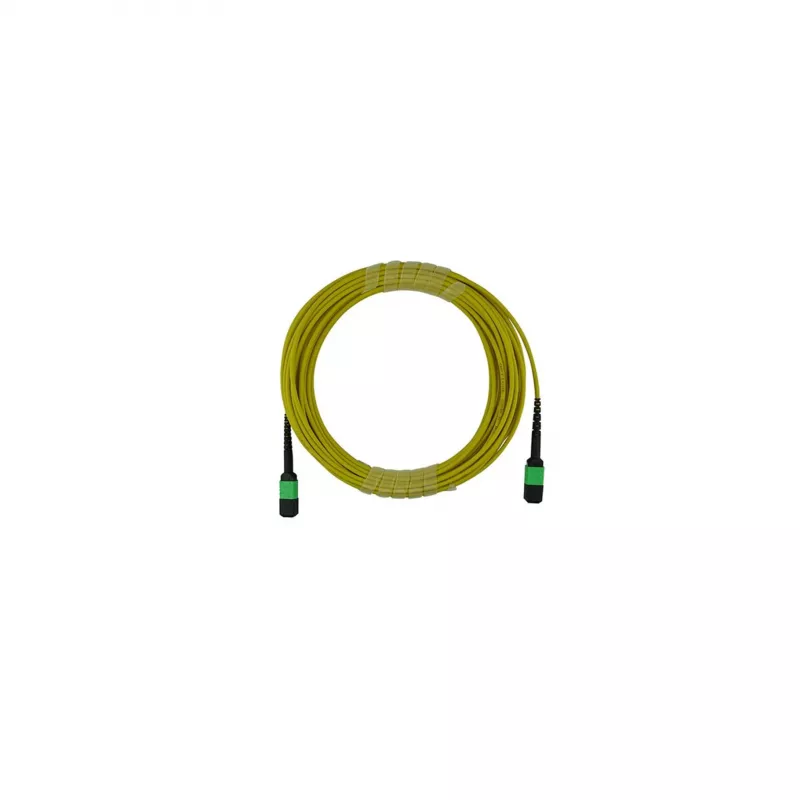

BlueOptics Compatible NVIDIA MFP7E30-N010 MPO/APC a MPO/APC Monomodo OS2 Cable Trunk de Fibra Óptica, 10 m

The BlueOptics Compatible NVIDIA MFP7E30-N010 fibre optic trunk cable is a high-performance solution designed for demanding network environments. This MPO/APC to MPO/APC single-mode OS2 cable ensures reliable, high-speed data transmission over a 10-metre length, making it ideal for data centres, enterprise networks, and high-bandwidth applications.

Advantages

Engineered for compatibility with NVIDIA MFP7E30-N010 systems, this BlueOptics trunk cable delivers exceptional signal integrity and low insertion loss. The MPO/APC connectors provide superior return loss performance, reducing reflections and ensuring stable connections. Its OS2 single-mode fibre supports long-distance transmission with minimal attenuation, while the robust construction guarantees durability and longevity.

Suitable for

• Data centre interconnects
• High-speed network backbones
• Telecommunications infrastructure
• Enterprise LAN and SAN environments
• Fibre optic trunking applications requiring MPO/APC connectivity

Key specifications

• Connector 1: MPO/APC
• Connector 2: MPO/APC
• Fibre type: Single-mode OS2
• Cable length: 10 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤0.75 dB (typical)
• Return loss: ≥60 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure proper handling and installation of MPO connectors. Use appropriate cleaning tools and inspection equipment to maintain low insertion loss and high return loss. This cable is compatible with standard MPO/APO adapters and panels.
