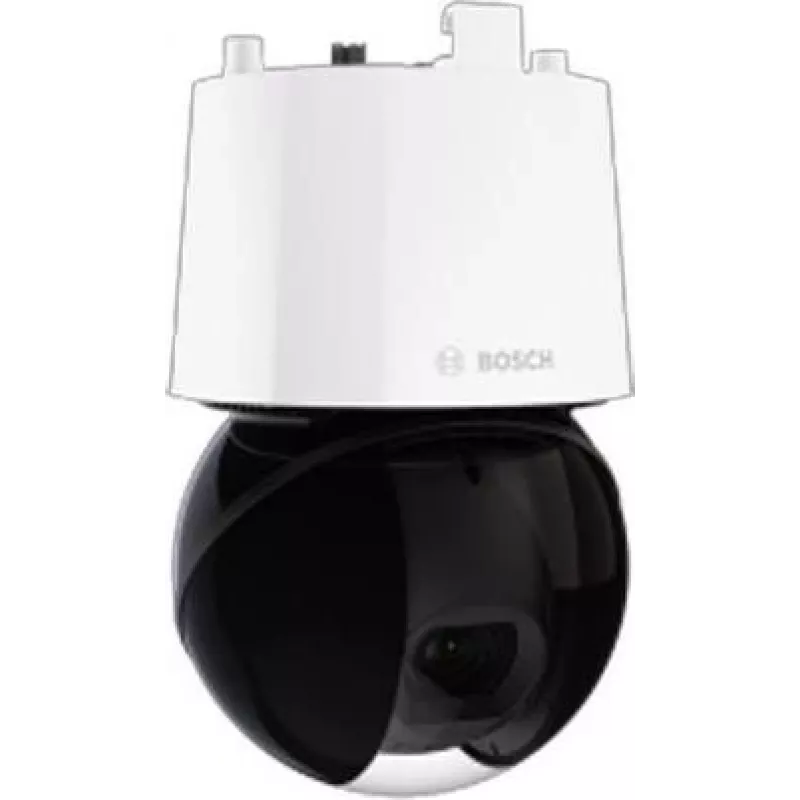

Bosch NDP-7802-Z40 cámara IP PTZ colgante 2MP HDR 40x IP66

Perimeter security teams monitoring critical outdoor infrastructure need a camera that can spot a face from hundreds of meters away, day or night. The Bosch NDP-7802-Z40 answers with a 40x optical zoom that brings distant details into sharp focus, backed by 120 dB HDR to handle challenging backlight and glare. Its rugged IP66 and IK10 housing shrugs off weather and vandalism, while built-in Intelligent Video Analytics Pro automatically detects and tracks objects, reducing operator fatigue.

Key specifications

• 2 Megapixel 1/2.8-inch CMOS sensor, 1920 x 1080 resolution
• 40x optical zoom (4.3–172 mm), 16x digital zoom, F1.6–F4.9 aperture
• 120 dB High Dynamic Range for clear images in high-contrast scenes
• Pan 360° continuous, tilt -9° to 90° for full coverage
• IP66 weatherproof and IK10 vandal-resistant pendant housing
• H.265, H.264, and M-JPEG compression; up to 60 fps at 1080p
• Minimum illumination: 0.01 lux color, 0.002 lux B/W (F1.6)
• Power via PoE++ (802.3bt Type 3, Class 6) or 24 VAC
• Two-way audio (1 in / 1 out), microSD slot up to 2 TB
• Operating temperature -40 °C to +60 °C

Why choose it

This PTZ camera delivers long-range surveillance without sacrificing image quality. The 40x zoom combined with HDR ensures you capture usable evidence even in difficult lighting, while the robust build and advanced analytics make it a reliable choice for high-security environments.

Ideal use cases

• Perimeter protection for industrial facilities and logistics centers
• City surveillance and traffic monitoring
• Critical infrastructure such as power plants and water treatment
• Large outdoor areas like stadiums, parking lots, and ports

Good to know

The camera supports Bosch's Intelligent Video Analytics Pro, enabling rule-based alerts for line crossing, loitering, and object detection. Installation is simplified with PoE++ power, and the pendant mount suits open outdoor ceilings or poles.
