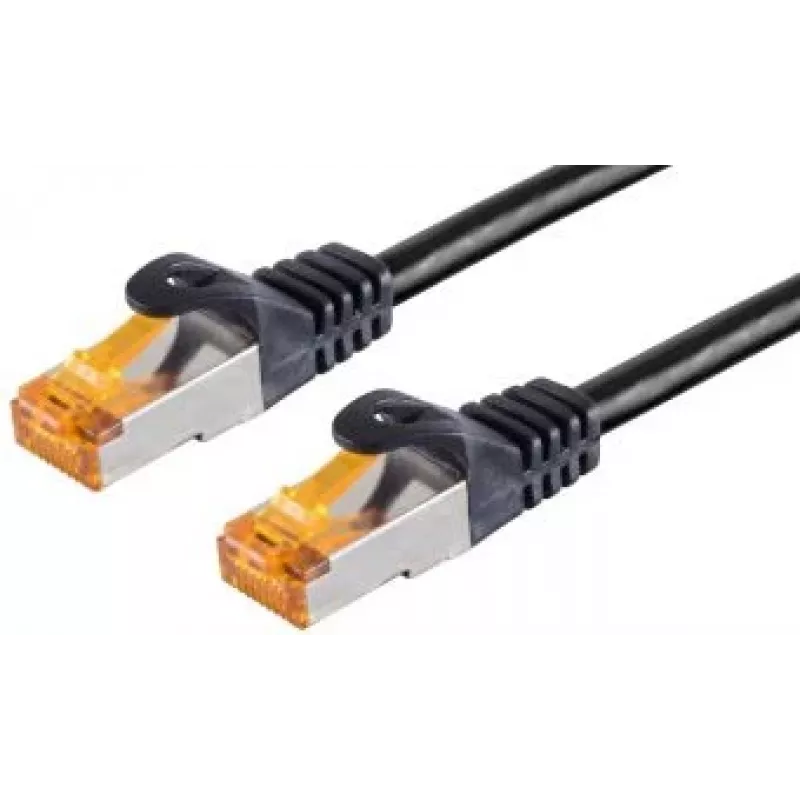

Brackton Patch Outdoor S/FTP Cat.6a 75m negro

The Brackton Outdoor Patch S/FTP Cat.6a 75m Black is a high-performance outdoor installation cable designed for reliable data transmission in harsh environments. With S/FTP shielding and solid copper conductors, it ensures excellent signal integrity and protection against electromagnetic interference.

Advantages

This cable offers robust UV resistance and direct burial capability, making it ideal for outdoor and underground installations. It supports Power over Ethernet (PoE, PoE+, PoE++) and delivers up to 10 Gigabit Ethernet speeds with a bandwidth of 500 MHz.

Suitable for

• Outdoor network installations
• Direct burial applications
• High-speed data transmission up to 10 Gbit/s
• PoE-powered devices such as IP cameras and access points

Key specifications

• Cable type: Outdoor Installation Cable
• Category: Cat.6a
• Shielding: S/FTP (PiMF)
• Length: 75 m
• Colour: Black
• Conductor: Solid Copper, AWG 23/1
• Jacket material: PE (Polyethylene)
• Data transfer rate: up to 10 Gbit/s
• Bandwidth: 500 MHz
• Impedance: 100 Ohm
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801
• Operating temperature: -20°C to +60°C
• Outer diameter: approx. 7.5 mm
• Packaging: Cable drum/reel

Recommendations

For optimal performance, use with compatible Cat.6a connectors and ensure proper grounding. Suitable for outdoor and direct burial installations where durability and high-speed data transmission are required.
