Brazo para monitor ACT 32 pulgadas Oficina Premium, muelle de gas, barra transversal, 2 monitores

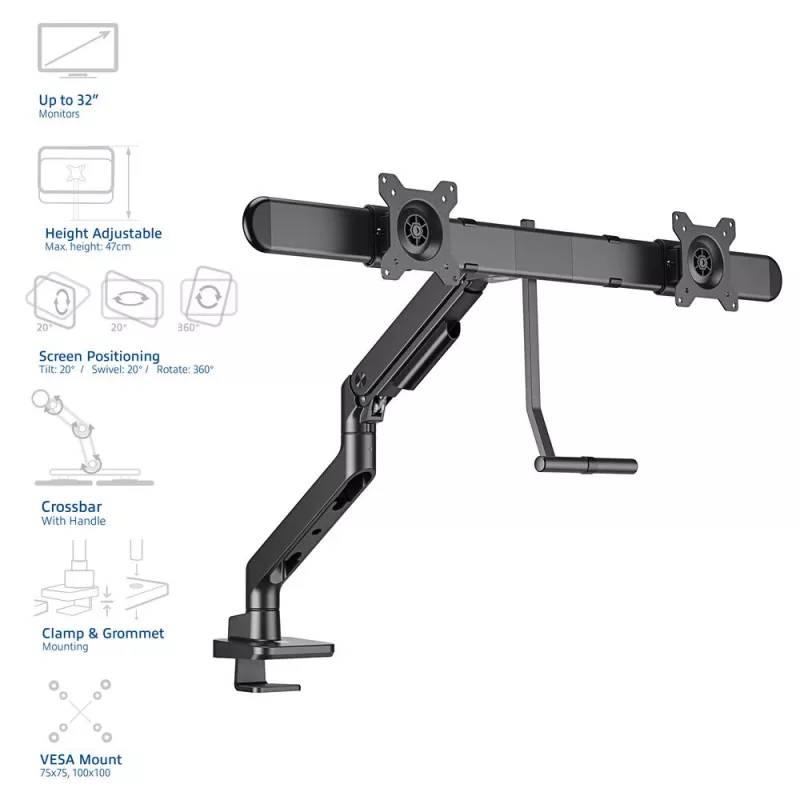

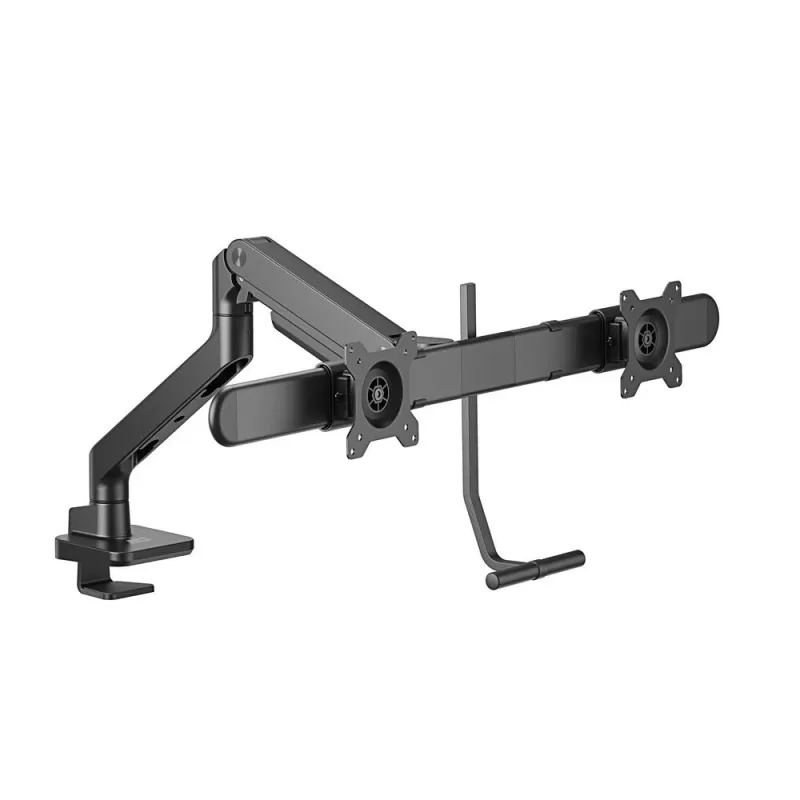

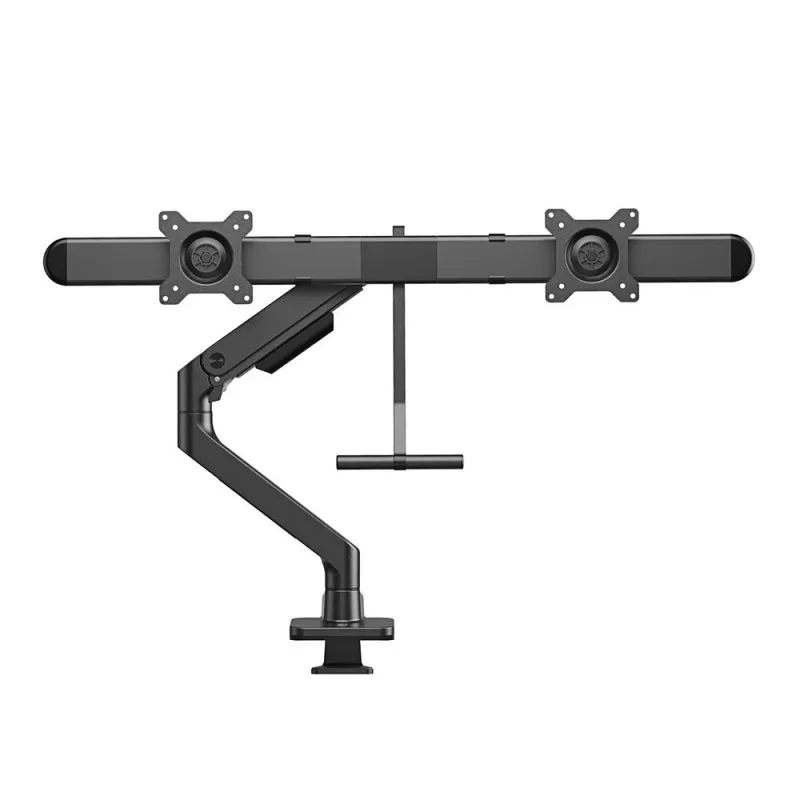

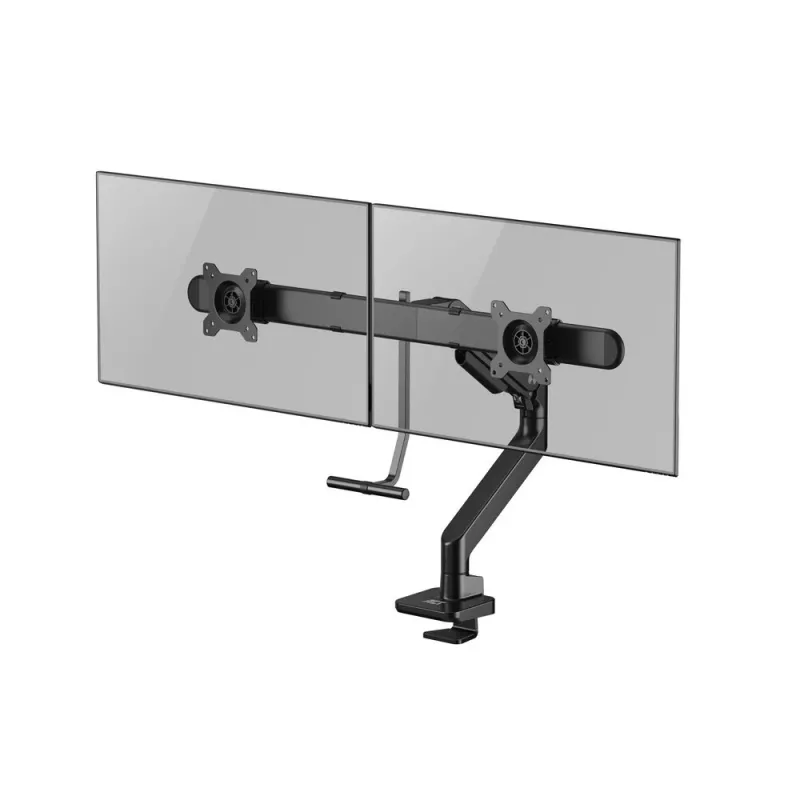

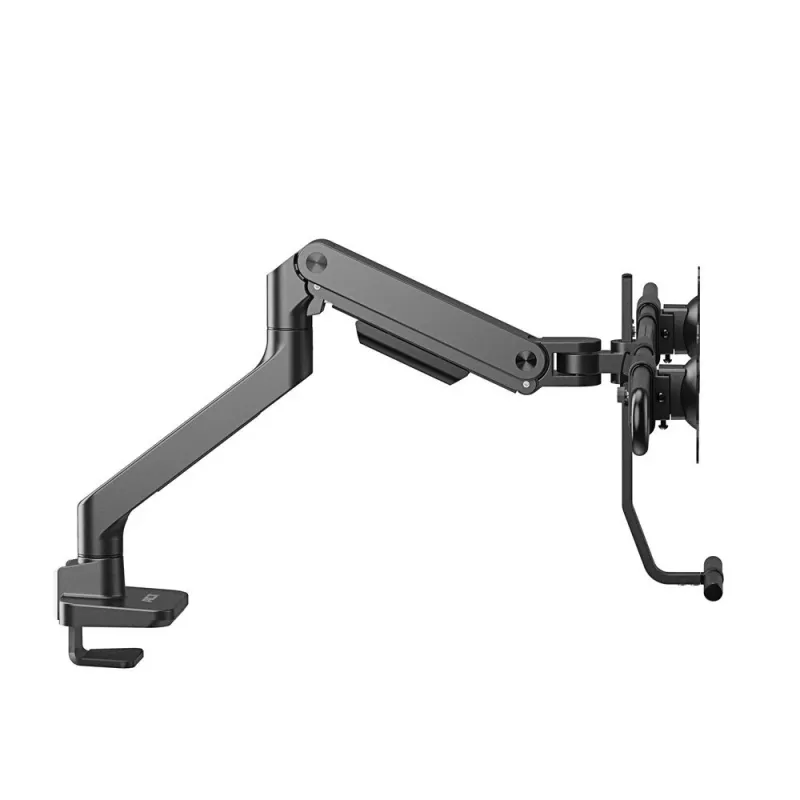

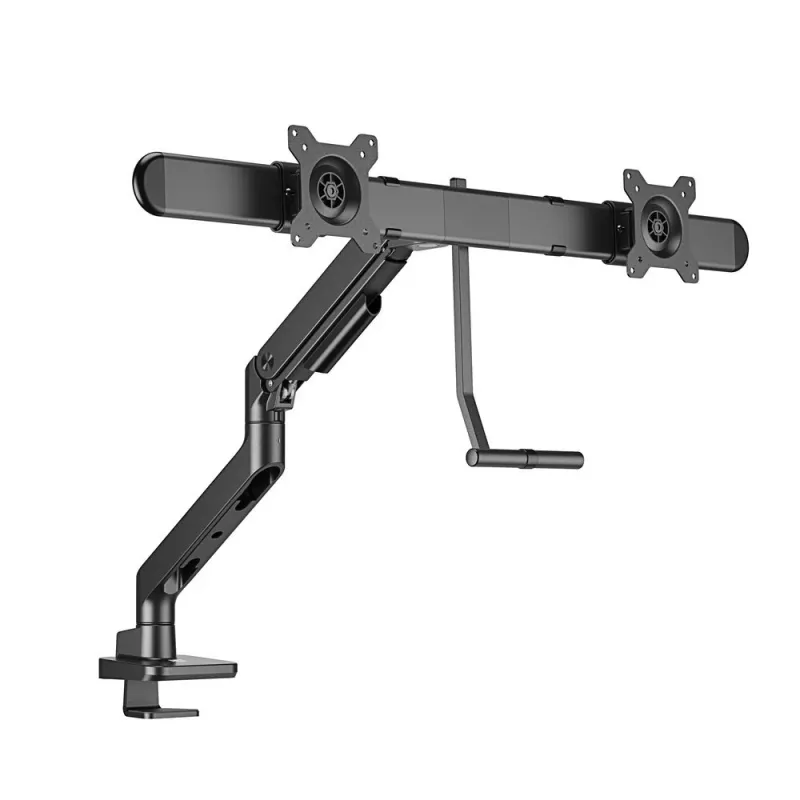

The ACT Monitor arm 32" office premium gas spring crossbar (AC8344) is a full-metal dual monitor arm designed to hold two monitors up to 32" and 9 kg each with VESA 75x75 or 100x100. It provides height adjustment via a gas spring, three pivot points for tilt, swivel and rotation, and includes both clamp and grommet mounting options. The top-mount clamp secures from above for a compact, clean installation and the VESA plates are removable. A 180° rotation lock prevents the screens from swinging into walls or adjacent monitors, and built-in cable management keeps cables tidy.

Advantages

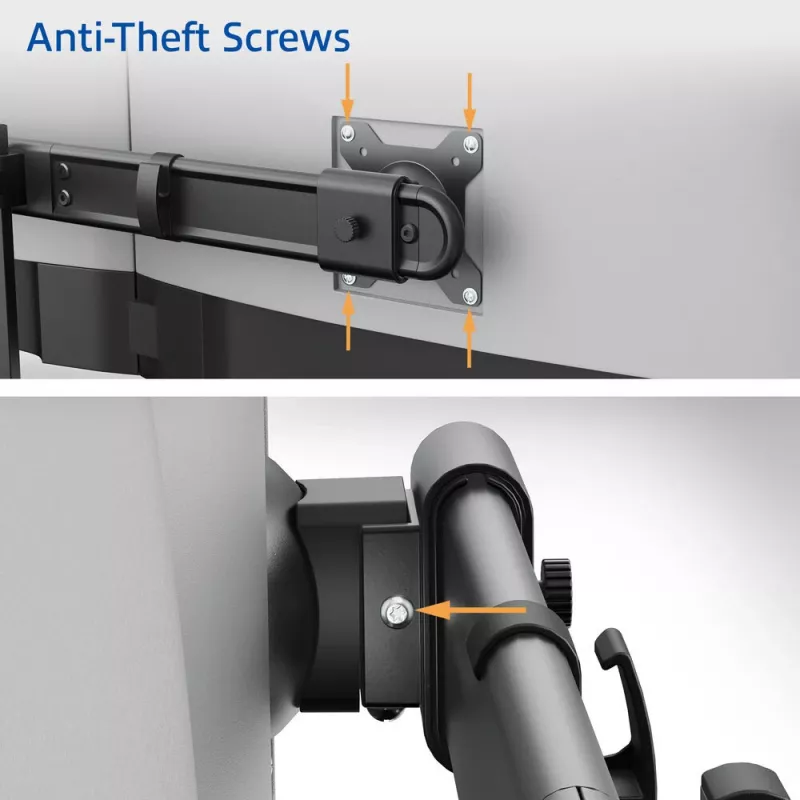

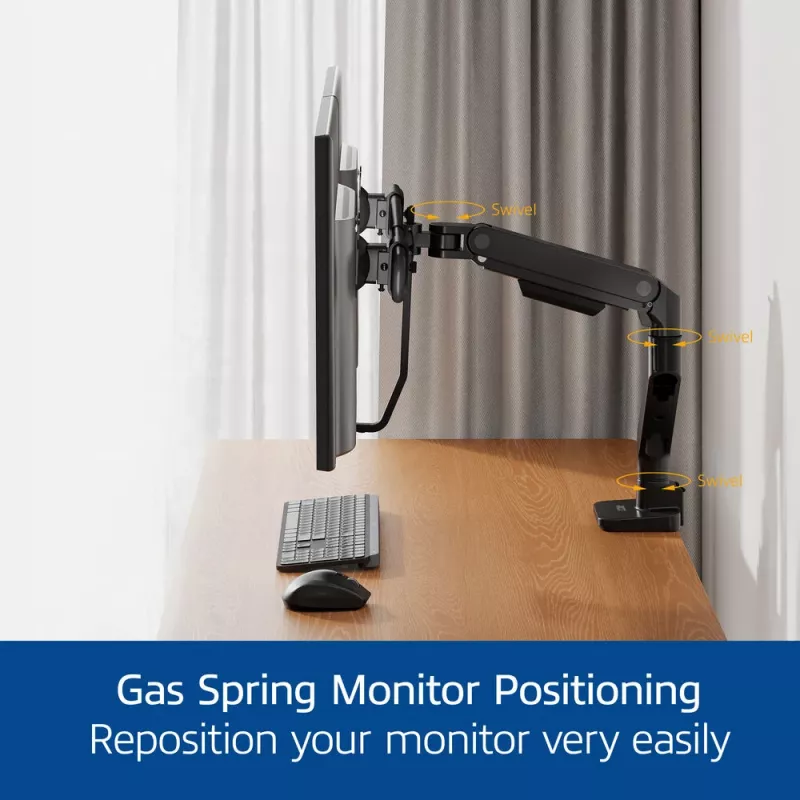

The monitor arm is constructed from solid metal for stability and durability and supports two screens up to 32" and 9 kg each. The gas spring allows tool-free height adjustment while three pivot points enable tilt, swivel and rotate for ergonomic positioning. The top-side clamp offers space-saving installation and a neat appearance, and the product includes both clamp and grommet mounting hardware. Additional features include adjustable gas spring tension, removable VESA plates, anti-theft screws and a 180° rotation lock to limit movement near walls or neighboring screens.

Suitable for

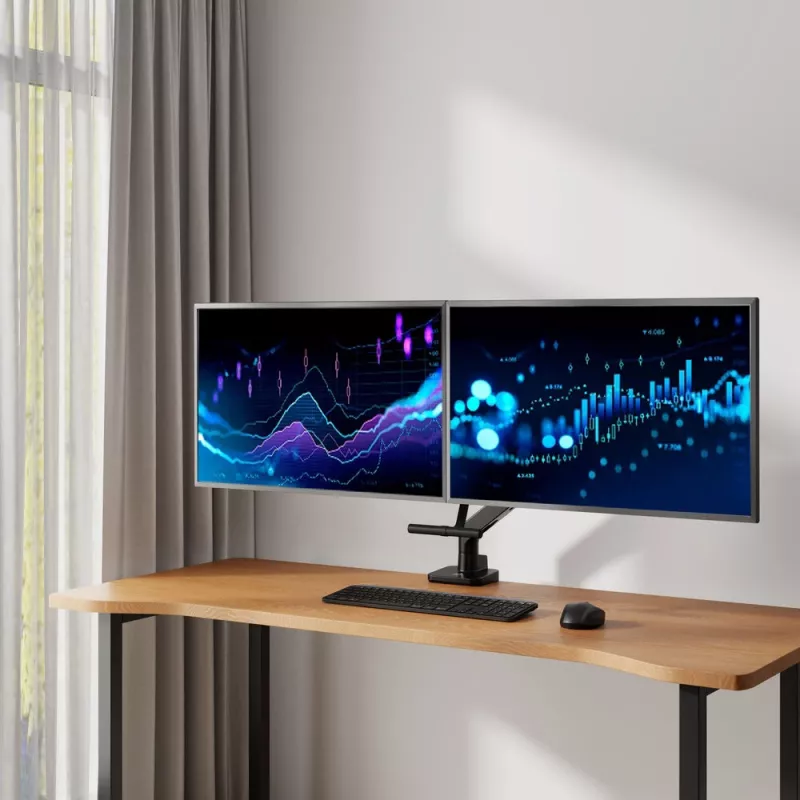

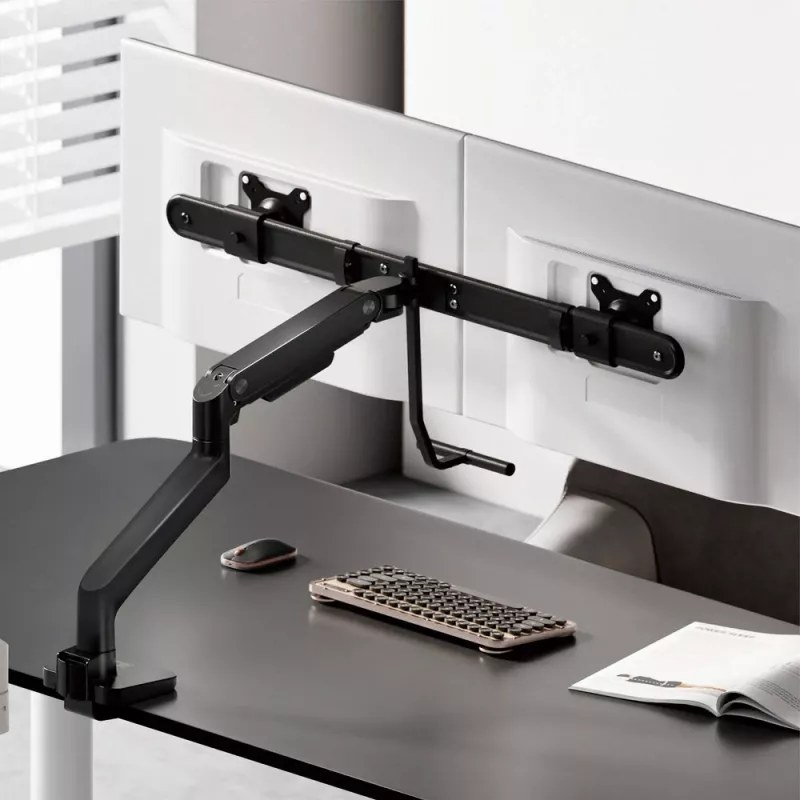

• Dual-monitor office workstations
• Flexible or hot-desking environments
• Home offices requiring ergonomic screen positioning
• Desks where a compact, clean mount is preferred

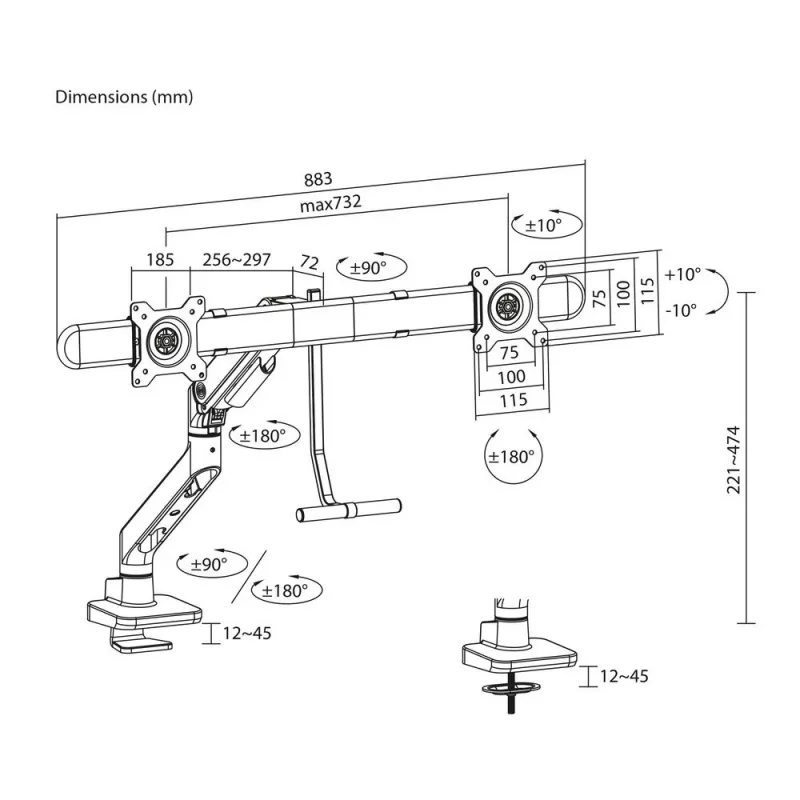

Key specifications

• Model: AC8344
• Brand: ACT
• Supports: 2 monitors, up to 32" each
• Max weight per monitor: 9 kg (total 18 kg)
• VESA compatibility: 75x75, 100x100
• Mounting options: top-side clamp and grommet (all mounting hardware included)
• Maximum desk thickness: 45 mm
• Maximum height (desk to VESA center): 47 cm
• Material: full metal
• Rotation: 360° with 180° lock mode

How to use

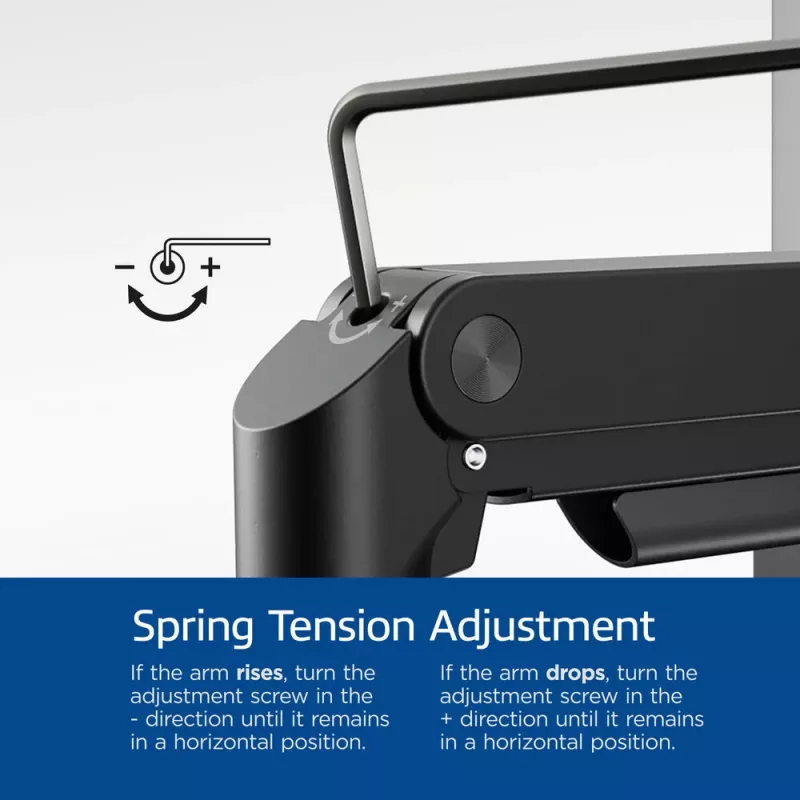

Attach the mount to your desk using either the top-side clamp or the grommet kit provided, ensuring the desk thickness does not exceed 45 mm. Fix the removable VESA plates to each monitor (75x75 or 100x100), then secure the plates to the crossbar. Adjust the gas spring tension if necessary, then set the desired height, tilt, swivel and rotation across the three pivot points. Use the 180° rotation lock when working near walls or adjacent screens to limit lateral movement. Route cables through the integrated cable management channels.

Recommendations

For best results, verify monitor weights and VESA patterns before installation, adjust gas spring tension gradually to match monitor weight, and use the rotation lock when mounting near walls or other screens to prevent collisions.
