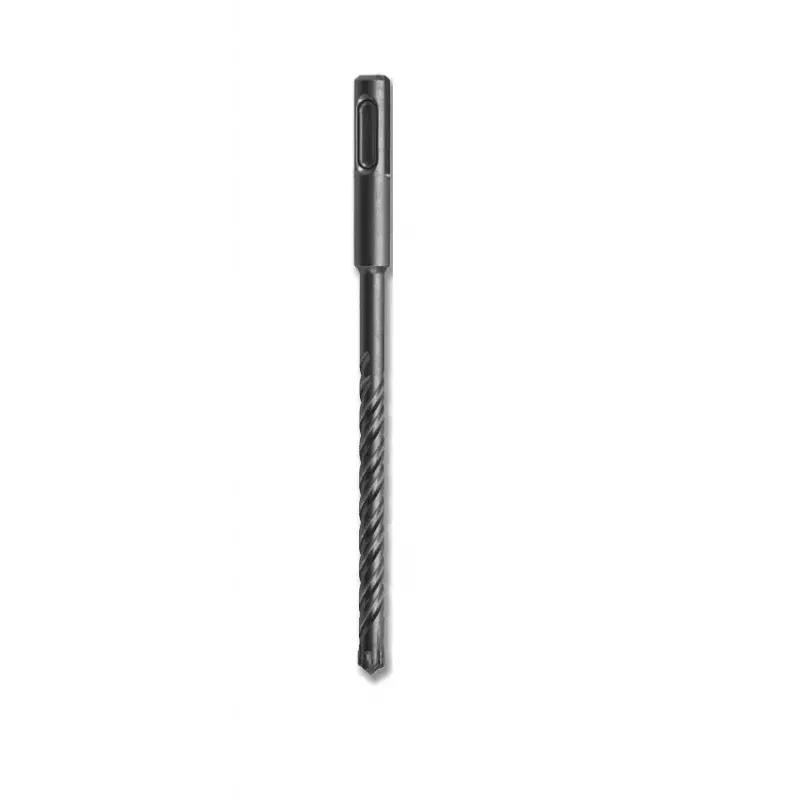

Broca KWB 264016

The KWB 264016 drill bit is a 16 mm SDS Plus shank masonry bit designed for rotary hammers. It features a CROSS-TIP 4-way cutting tip brazed at high temperature and a multi-phase spiral for efficient waste removal. The bit is suitable for drilling holes for wall plugs and anchor fixings in reinforced concrete, aerated concrete, sandstone and natural stone, offering low vibration and smooth running.

Advantages

The CROSS-TIP 4-way cutting geometry reduces snagging and provides fast, precise cutting. High-temperature brazing increases tip durability, while the multi-phase spiral improves debris extraction for continuous drilling performance. The SDS Plus shank ensures secure tool engagement and easy bit changes. Overall design delivers efficient drilling with reduced vibration.

Suitable for

Key specifications

How to use

Fit the KWB 264016 into an SDS Plus rotary hammer according to the tool manufacturer's instructions. Start drilling at low speed to position the bit, then apply steady pressure and operate at the hammering speed suitable for the material. Periodically withdraw the bit to clear debris if necessary, allowing the multi-phase spiral to expel waste efficiently. Use appropriate personal protective equipment, including eye and hearing protection.

Recommendations

For best results when drilling reinforced concrete, use a suitable rotary hammer with SDS Plus chuck and select an appropriate hammering mode. Avoid excessive side pressure and keep the bit straight to prolong tip life. Replace the bit if cutting performance decreases or if the tip shows visible wear.
