Broca martillo SDS Plus Quattro SMART365 14x600/550 mm

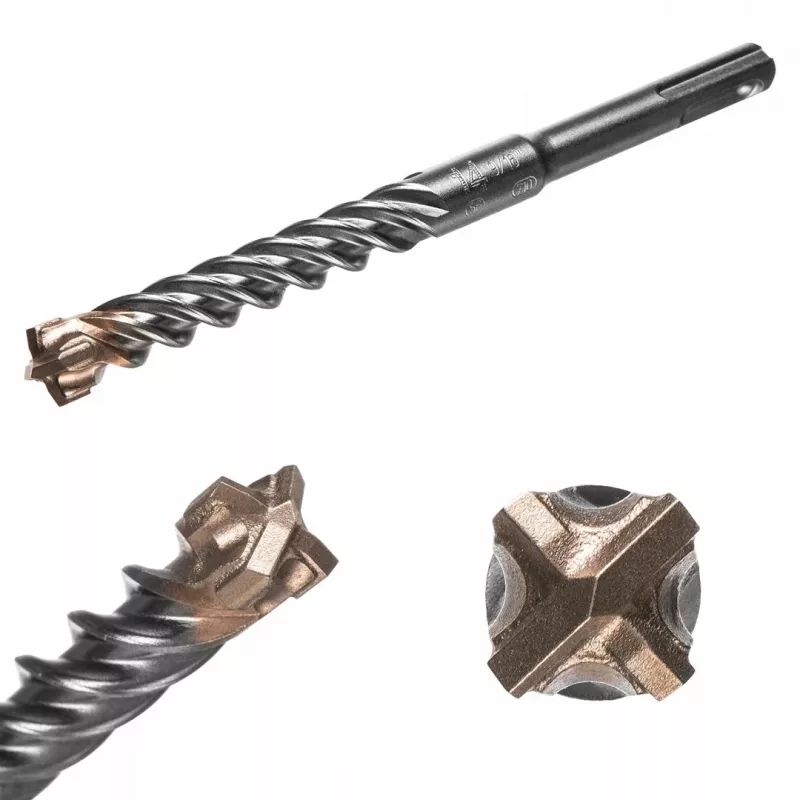

The SMART365 SDS Plus Quattro Hammer Drill Bit is a high-performance drilling tool designed for professional use in concrete, reinforced concrete, masonry, brick, and natural stone. With a 14 mm diameter and 600 mm total length (550 mm working length), this bit features a 4-cutter head for faster drilling and a quadruple helix flute design for efficient dust removal. The SDS Plus shank ensures compatibility with all SDS Plus rotary hammer drills.

Advantages

Equipped with a carbide tip for exceptional durability and wear resistance, the Quattro design reduces drilling time and improves accuracy. The centering point provides precise starts, while the optimized dust extraction keeps the hole clean for consistent performance.

Suitable for

• Concrete and reinforced concrete
• Masonry and brick
• Natural stone
• Hammer drilling applications

Key specifications

• Shank Type: SDS Plus
• Drill Bit Diameter: 14 mm
• Total Length: 600 mm
• Working Length: 550 mm
• Head Design: 4-Cutter (Quattro)
• Material: Carbide-tipped steel
• Flute Type: Quadruple Helix
• Dust Removal: Optimized
• Centering Point: Yes
• Drilling Mode: Hammer Drilling
• Product Type: Hammer Drill Bit
• Series: Quattro

Recommendations

For best results, use with a high-quality SDS Plus rotary hammer drill. Ensure the bit is properly lubricated and cooled during prolonged use. Always wear appropriate safety gear, including eye protection and hearing protection.
