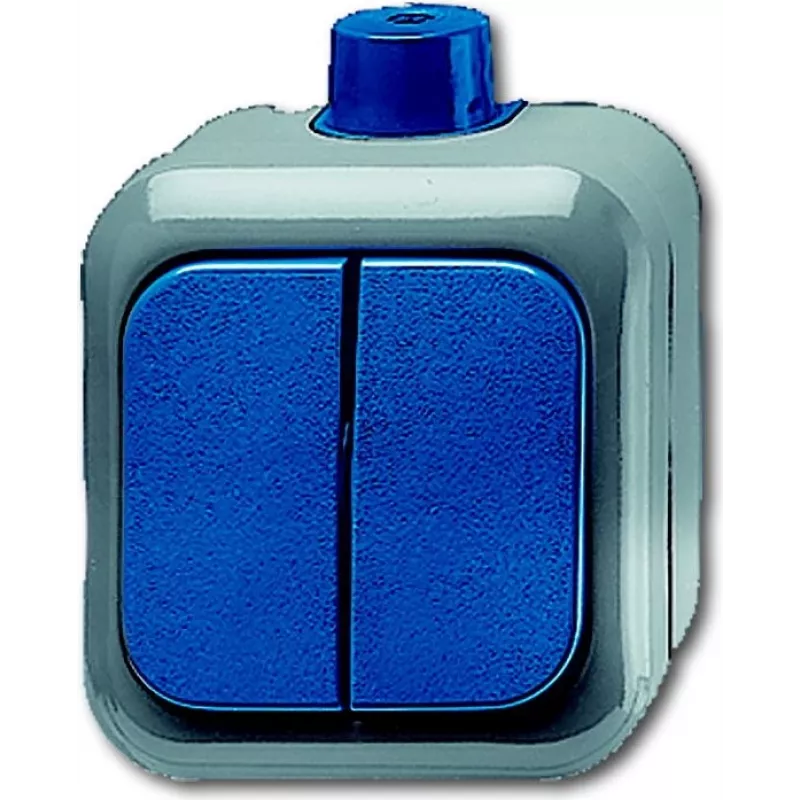

Busch-Jaeger 1084-0-0839 mecanismo de interruptor basculante, conmutador unipolar, 10 AX, 250 V, empotrar, azul/gris

Lighting control often demands a switch that combines reliable switching with design flexibility. The Busch-Jaeger 1084-0-0839 rocker switch insert provides a 1-pole changeover function, allowing you to operate a light from two locations. Its robust thermoplastic construction and screw terminals ensure a secure, long-lasting installation in standard flush-mounted boxes.

Who is it for

Electricians and homeowners seeking a dependable switch insert for new installations or replacements. It suits anyone who wants to pair a high-quality mechanism with a wide range of Busch-Jaeger cover plates, including Busch-Duro 2000® SI, Reflex SI, future® linear, carat®, alpha®, solo®, pure®, Busch-axcent®, and impuls® series.

Main features

• 1-pole changeover switch (Wechsler) for two-way lighting circuits
• Rated current 10 AX, rated voltage 250 V AC
• Screw terminals for secure, maintenance-free connections
• Flush-mounted installation in standard wall boxes
• Compatible with numerous Busch-Jaeger rocker cover plates
• Halogen-free thermoplastic material
• VDE certified for safety and quality

Specifications

• Product type: Rocker switch insert
• Switch function: 1-pole changeover
• Number of poles: 1
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Mounting type: Flush-mounted (Unterputz)
• Material: Thermoplastic
• IP protection class: IP20
• Operating temperature: -5 °C to +40 °C
• Storage temperature: -20 °C to +70 °C
• Halogen-free: Yes
• Certifications: VDE
• Colour: Blue/Grey

Tips

For a complete switch, combine this insert with a compatible Busch-Jaeger rocker cover plate and frame from the listed series. Always switch off the power before installation and have a qualified electrician perform the work according to local regulations.
