Cable de fibra óptica SYNERGY21 5m SC/APC-SC/APC 9/125µm OS2 G.657.A2 simplex 2mm

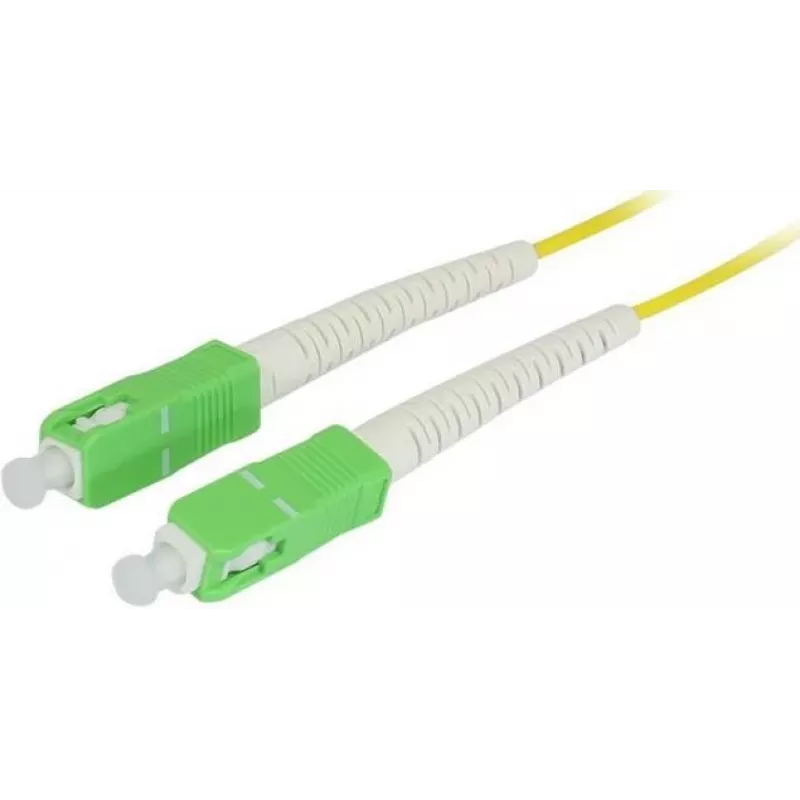

The SYNERGY21 S215715 is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in indoor networks. With a length of 5 meters and SC/APC connectors on both ends, this simplex cable features a 9/125µm core/cladding, OS2 category, and G.657.A2 bend-insensitive fiber. The 2mm outer diameter and flexible strain relief boots ensure easy installation and durability.

Advantages

Bend-insensitive G.657.A2 fiber allows for tighter bends without signal loss, making installation in confined spaces easier. The APC polish minimizes back reflection, ideal for high-precision applications. Flexible boots protect the connector-fiber junction, extending cable life.

Suitable for

• FTTH (Fiber to the Home) networks
• Data center interconnects
• Telecommunications infrastructure
• CATV and broadband systems

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode
• Fiber Category: OS2
• ITU-T Standard: G.657.A2
• Core/Cladding: 9/125 µm
• Connectors: SC/APC to SC/APC
• Number of Fibers: 1 (Simplex)
• Length: 5 m
• Cable Outer Diameter: 2 mm
• Connector Polish: APC (Angled Physical Contact)
• Bend Sensitivity: Bend-Insensitive
• Strain Relief: Flexible Boot
• Application: Indoor

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice closures. This cable is not suitable for outdoor use without additional protection.
