Cable de red Techly ITP-C6A-FLS305 gris 305 m Cat6a S/FTP (S-STP)

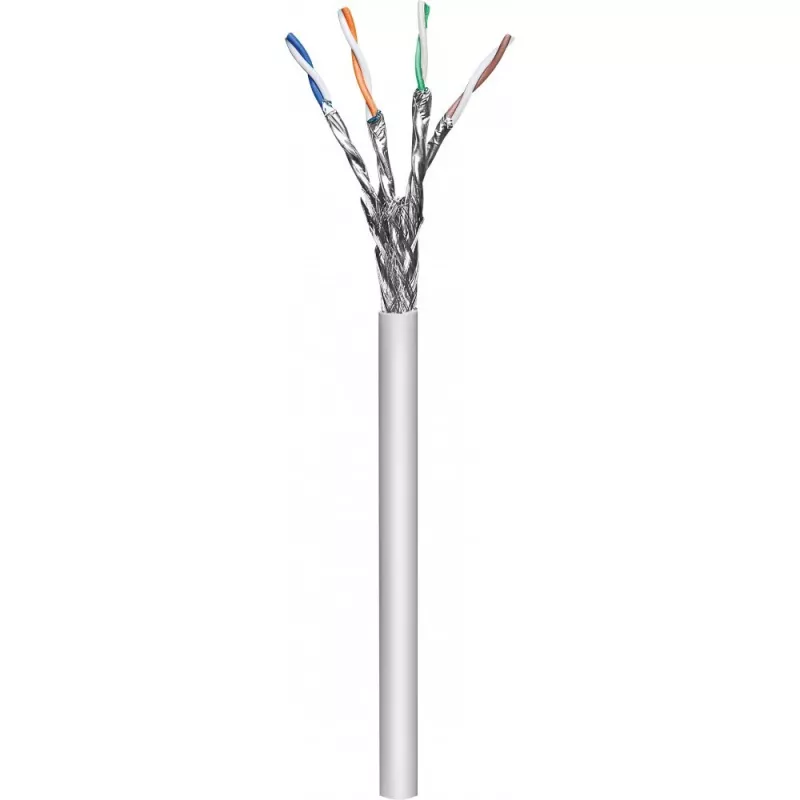

The Techly ITP-C6A-FLS305 S/FTP Cat6a networking cable is a 305-meter grey cable engineered for high-speed Ethernet environments that require reduced electromagnetic interference. Compliant with Cat6a performance, the cable supports 10GBase-T applications and is built as a 4-pair flexible conductor with AWG26/7 construction. The cable features overall screening plus individual braid shielding on each pair (S/FTP) for improved crosstalk and external noise protection, and a printed size indication every meter to simplify deployment and measurement.

Advantages

This S/FTP Cat6a cable combines high bandwidth capability with enhanced shielding to ensure stable data transmission in dense or electrically noisy environments. The flexible 4-pair AWG26/7 conductors facilitate easier routing in cable trays and conduits. The continuous length of 305 m reduces the need for intermediate joins and the grey jacket provides a neutral appearance suitable for many installations.

Suitable for

• 10 Gigabit Ethernet networks (10GBase-T)
• Structured cabling in offices, data centers and server rooms
• Environments with elevated electromagnetic interference where pair-level braid shielding is beneficial
• Long runs requiring a single continuous cable length up to 305 m

Key specifications

• Cabling standard: Cat6a
• Shielding: S/FTP (overall screen + braid on each pair)
• Length: 305 m
• Conductor configuration: 4 pairs, 2 conductors per pair, AWG26/7 (flexible)
• Supported technology: 10GBase-T
• Colour: Grey
• Weight: 13.125 kg
• Meter markings: size indication printed at every meter

How to use

Strip the outer sheath to access the four twisted pairs and preserve the individual pair braid during termination. Terminate to compatible RJ45 connectors or patch panels rated for Cat6a and S/FTP construction, following standard wiring schemes (T568A or T568B). Maintain appropriate bend radii and separation from high-voltage cabling to preserve performance. Use the printed meter markings to measure and cut required lengths accurately before terminating.

Recommendations

For optimal 10GBase-T performance, install the cable in environments that respect maximum run lengths and avoid tight bends or compressive forces on the braid. When routing near potential interference sources, make use of the cable's S/FTP shielding and ensure proper grounding of cable shields at infrastructure termination points.
