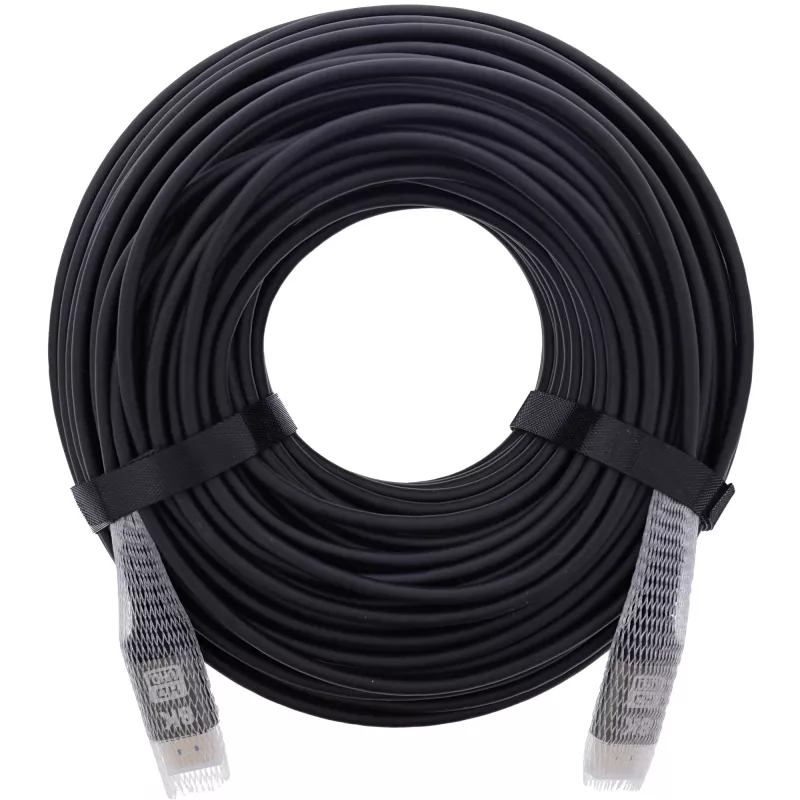

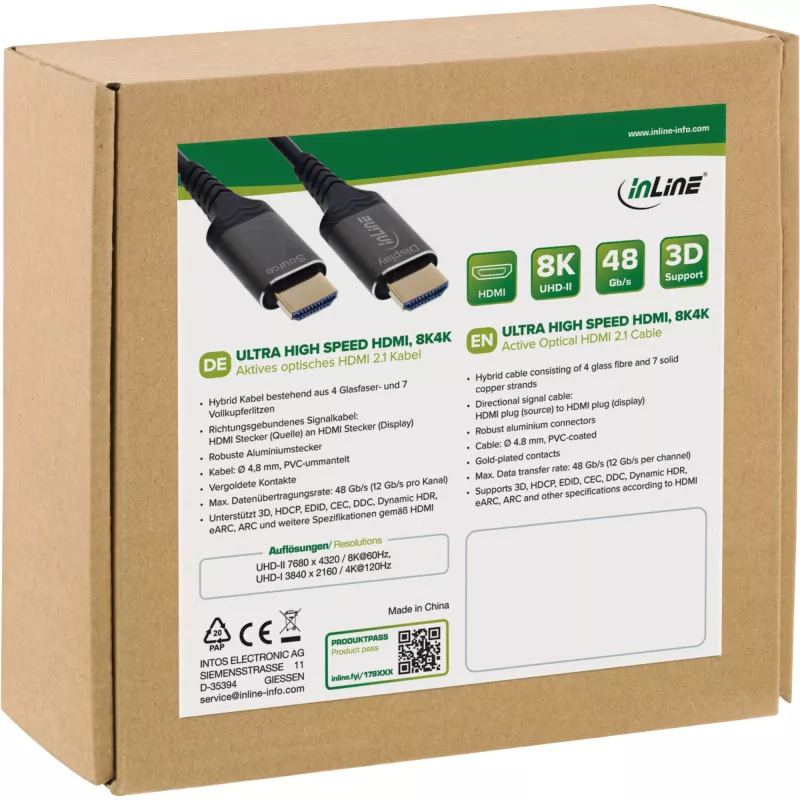

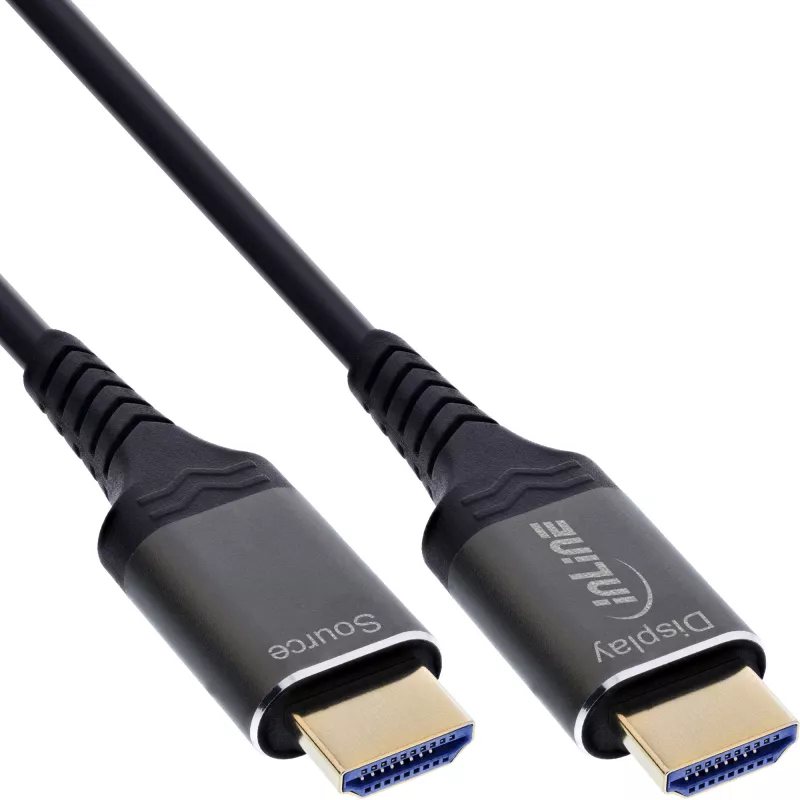

Cable HDMI AOC InLine 17915X Ultra High Speed 8K, Active Optical, 15 m

Loss-free transmission over long distances: Hybrid structure made of glass fibre and copper enables stable signal quality up to 50 m cable length. Maximum picture quality for 8K and 4K content: Supports 8K at 60 Hz and 4K at up to 240 Hz - ideal for home cinema and gaming. Modern HDMI 2.1 features included: Supports Dynamic HDR, eARC, CEC, HDCP, 3D, DDC and more in accordance with the HDMI specification. Rugged construction with aluminium connectors: Gold-plated contacts and robust design for long-lasting use in demanding environments. Flexible and directional use: PVC-coated with a diameter of only 4.8 mm - clear labelling of the signal direction ensures easy installation. Experience brilliant picture quality even over long distances - with the InLine® HDMI AOC cable. This hybrid cable combines the advantages of modern fibre optic technology with high-quality copper strands to ensure loss-free signal transmission even over cable lengths of up to 50 m. It supports the entire bandwidth of current HDMI 2.1 standards and delivers content in impressive 8K resolution at 60 Hz or 4K at up to 240 Hz - ideal for gaming, streaming or home cinema. Thanks to Dynamic HDR, eARC, CEC, HDCP and other features, you are ideally equipped for any AV application. The sturdy aluminium plugs with gold-plated contacts ensure permanently reliable connections - even with frequent use. With a diameter of just 4.8 mm, the PVC-coated cable is particularly flexible and easy to lay. Clear directional labelling makes installation easier: simply connect "Source" to the player and "Display" to the playback device. Rely on quality and durability - for razor-sharp images and impressive sound, even over long distances. Hybrid cable consisting of 4 glass fibre and 7 solid copper strands Directional signal cable: HDMI plug (source) to HDMI plug (display) Cable: Ø 4.8 mm, PVC-sheathed Max. Data transfer rate: 48 Gb/s (12 Gb/s per channel) Supports 3D, HDCP, EDID, CEC, DDC, Dynamic HDR, eARC, ARC and other specifications according to HDMI

• Weight: 0.477kg
• Height packaging: 0.050m
• Type: HDMI 2.1
• Maximum display resolution: 7680x4320 @60Hz
• UL: No
• Maximum HDTV resolution: 7680x4320 @60Hz
• Complies with HDMI standard: HDMI 2.1
• Design: Round cable slim
• Outer diameter: 4.8mm
• Length packaging: 0.165m
• Article width: 2.0cm
• Article height: 1.1cm
• Article length: 1500cm
• Width packaging: 0.165m
• Manufacturer information: INTOS ELECTRONIC AG
  Siemensstrasse 11
  35394 Gießen
  Deutschland
  [email protected]
• Country of origin: Taiwan
• Im Angebot: No
• Stark reduziert: No
• Manufacturer No.: 17915X
• EAN Barcode: 4043718343249
• Net weight: 0.396kg
• Brand: InLine®
• Customs tariff number: 8544429090
• Storage temperature: -20 to +70°C
• Length: 15m
• Gold plated contacts: Ja
• Side A: HDMI A Stecker
• Signal: Audio/Video
• Diameter: AWG 30
• Side B: HDMI A Stecker
• Variant: AOC Kabel
• Colour: Schwarz
• Active cable: Yes
• Operation temperature: 0 bis +50°C

How to use

Connect one HDMI A plug to the HDMI output of your source device (such as a media player, gaming console or AV receiver) and the other HDMI A plug to the HDMI input on the display or projector. Ensure both connected devices are powered on and set to the appropriate input and output settings. The active optical cable requires no external power supply; it operates using the HDMI connection to transmit optical signals. After connection, verify the display resolution and audio settings on the source device to match the desired 8K or lower output.

Recommendations

Route the cable avoiding sharp bends and prolonged stress at connector ends to preserve optical fibers inside. Use the InLine HDMI AOC Cable for runs where copper HDMI cables cannot reliably deliver Ultra High Speed signals at 15 m. For optimal results, confirm that source and display devices support the intended resolution and audio formats.
