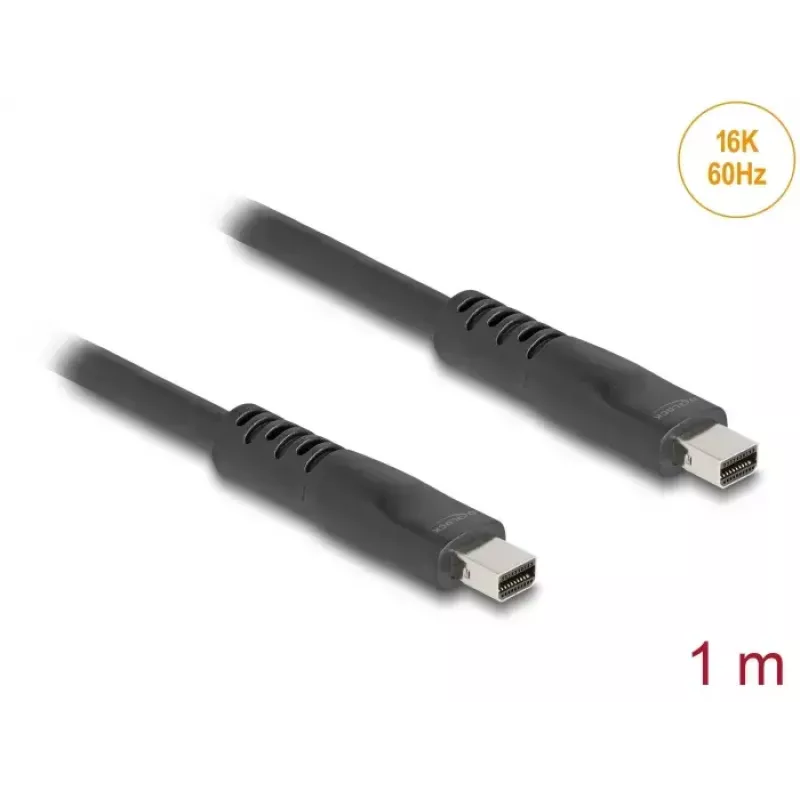

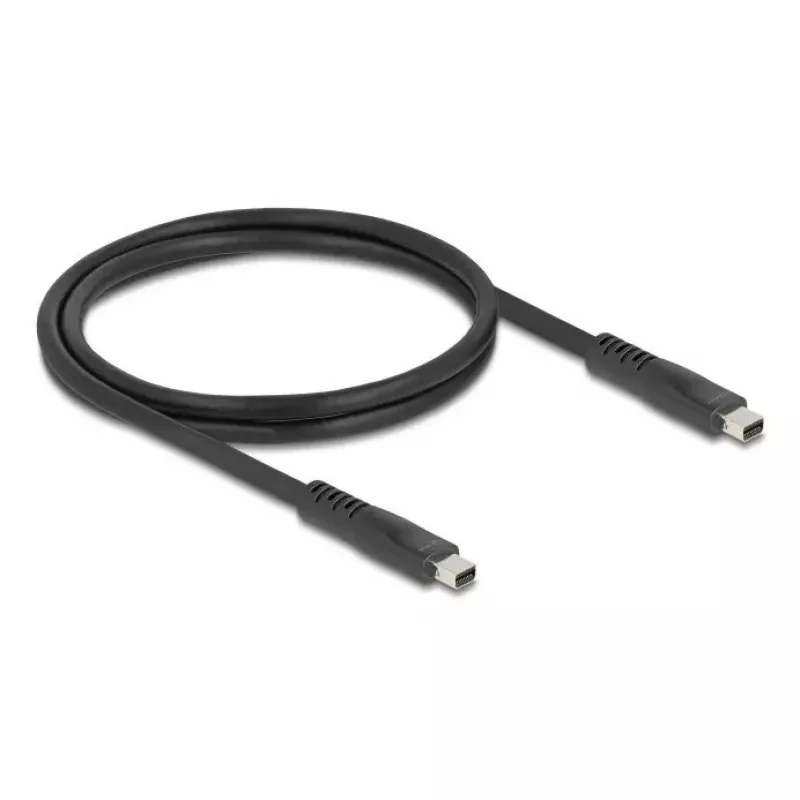

DeLOCK 81176 Cable DisplayPort 1 m Mini DisplayPort negro

The DeLOCK 81176 Mini DisplayPort cable (1 m) connects devices with Mini DisplayPort interfaces—such as displays, projectors or TVs—to a PC or laptop. The cable has Mini DisplayPort connectors on both ends, a 6.2 mm diameter and comes in a hanging box. It supports high-resolution video and high-quality audio transmission for compatible source and display devices.

Advantages

With a maximum bandwidth of 80 Gbps, the cable can carry video up to 16K at 60 Hz, up to 8K at 120 Hz and up to 4K at 240 Hz when paired with compatible hardware. HDR10 support ensures improved colour depth, brightness and contrast. The triple-shielded construction reduces interference and enhances audio transmission quality, supporting sample rates up to 1536 kHz. The 1 m length and black finish make it suitable for short-range connections and standard installation setups.

Suitable for

• Connecting Mini DisplayPort-equipped laptops or PCs to monitors and projectors
• High-refresh-rate gaming displays (4K/120–240 Hz, 8K/120 Hz depending on hardware)
• Professional video setups requiring HDR10 and high bandwidth
• Audio/video transmission where high sample rates are needed

Key specifications

• Brand: DELOCK
• Model/MPN: 81176
• EAN: 4043619811762
• Connector A: Mini DisplayPort
• Connector B: Mini DisplayPort
• Cable length: 1 m
• Diameter: 6.2 mm
• Colour: Black
• Maximum bandwidth: 80 Gbps
• Supported video: up to 16K @ 60 Hz; 8K up to 120 Hz; 4K up to 240 Hz (dependent on source and display)
• HDR: HDR10 support
• Audio sample rate: up to 1536 kHz

How to use

Connect one Mini DisplayPort connector to the Mini DisplayPort output on your PC or laptop and the other connector to the Mini DisplayPort input on your monitor, projector or TV. Ensure both devices support the desired resolution and refresh rate. Use appropriate display settings on the source device to enable HDR10 and select the target resolution and refresh rate. Avoid sharp bends and excessive force when inserting or removing the connectors.

Recommendations

The best performance is achieved when both source and display devices support the same high-resolution and high-refresh capabilities; check device specifications and use the shortest practical cable length to minimise signal loss.
