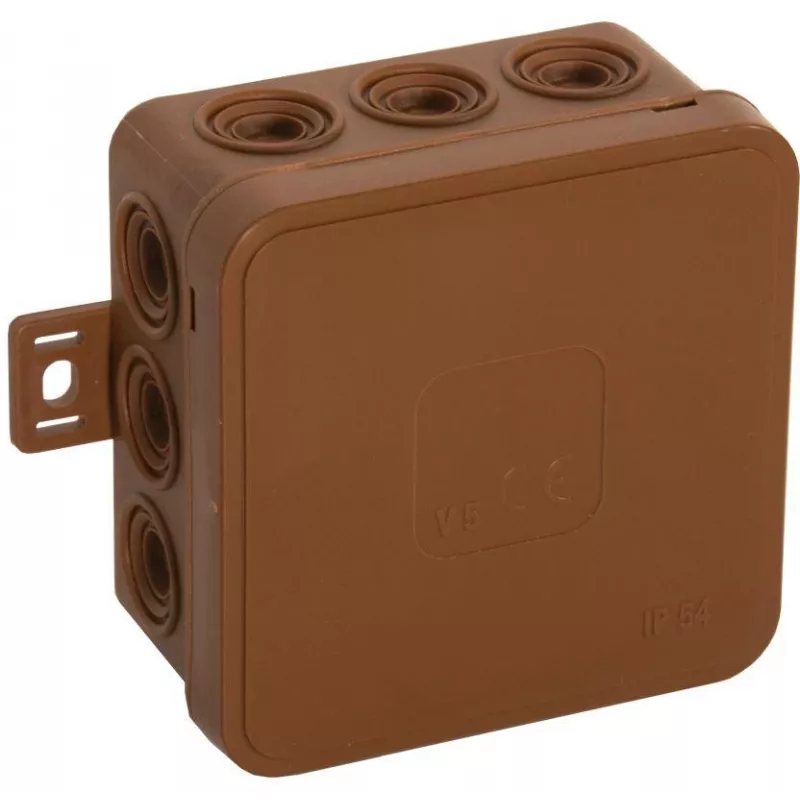

Caja de derivación de superficie VIPLAST V5 Klik, vacía, 12 entradas de cable, marrón, IP54, 75x75x41 mm, 035-02

Surface-mounted junction box with 12 cable entries, engineered for quick and secure installation thanks to the V5 Klik snap-on lid system. The brown polypropylene enclosure provides IP54 protection against dust and water splashes, making it suitable for indoor and sheltered outdoor electrical installations. Its compact 75x75x41 mm dimensions allow for neat cable management in tight spaces.

Advantages

The V5 Klik mechanism enables tool-free lid opening and closing, significantly reducing installation time. The halogen-free polypropylene construction ensures safety in case of fire, while the IK07 impact resistance guarantees durability in demanding environments. With 12 cable entry points, this box offers exceptional flexibility for branching and connecting multiple conduits.

Suitable for

• Residential electrical wiring junctions
• Commercial surface-mounted installations
• Indoor and sheltered outdoor applications
• Distribution of power and signal cables
• Areas requiring quick access for maintenance

Key specifications

• Number of cable entries: 12
• IP protection rating: IP54
• Material: Polypropylene (PP), halogen-free
• Lid fastening: Snap-on (Klik system)
• External dimensions: 75 x 75 x 41 mm
• Impact resistance: IK07
• Operating temperature range: -25°C to +60°C
• Glow-wire test temperature: 650 °C
• Standards compliance: EN 60670-1

Recommendations

For optimal performance, pair this junction box with compatible VIPLAST conduits and cable glands. Ensure all cable entries are properly sealed to maintain the IP54 rating. When installing outdoors, position the box under a shelter to avoid direct exposure to heavy rain.
