Caja de ordenador Zalman Z10 Midi-Tower negra

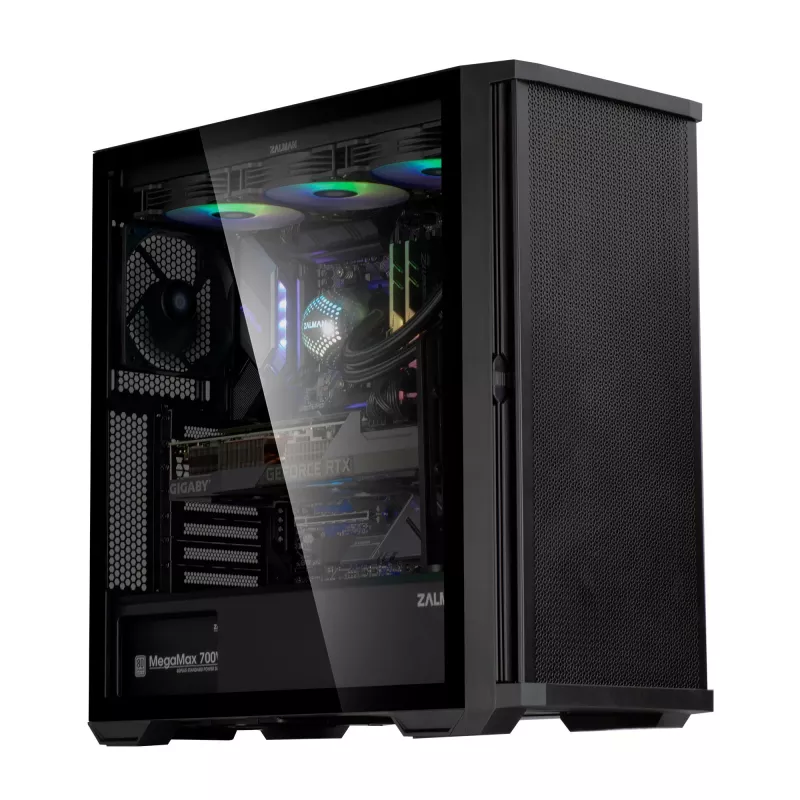

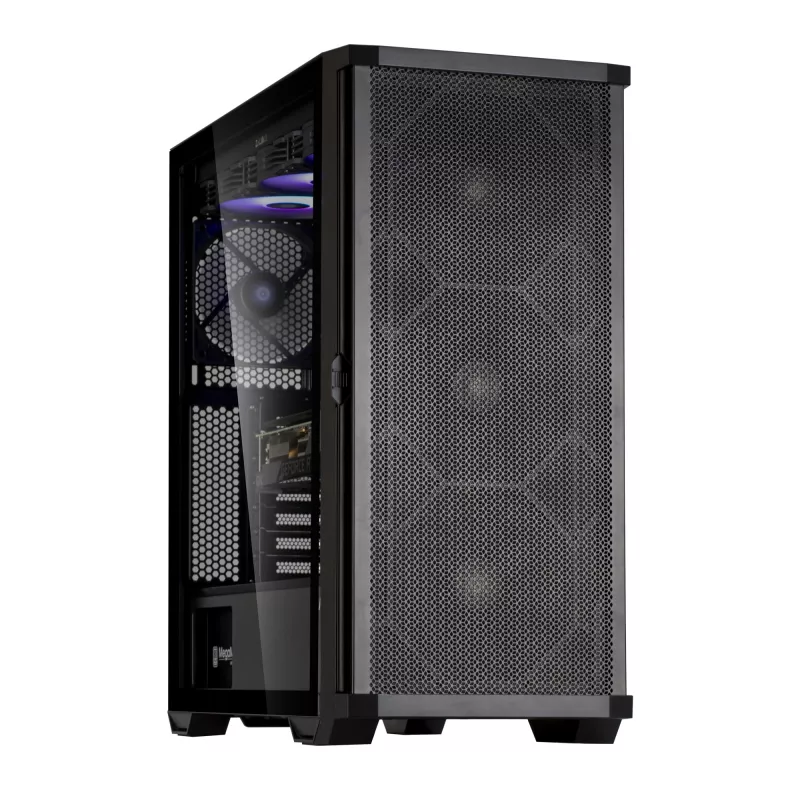

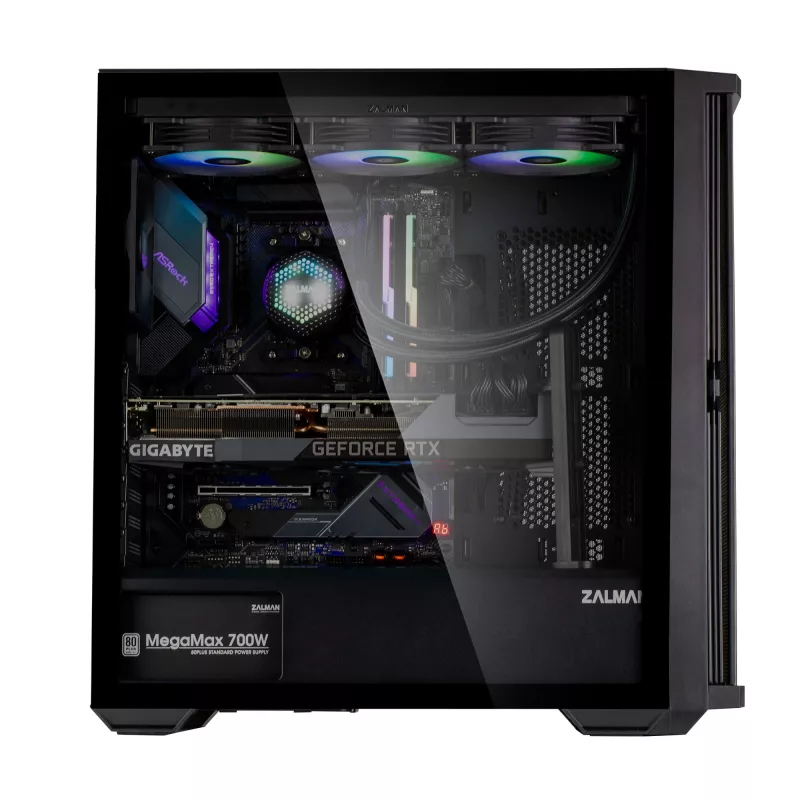

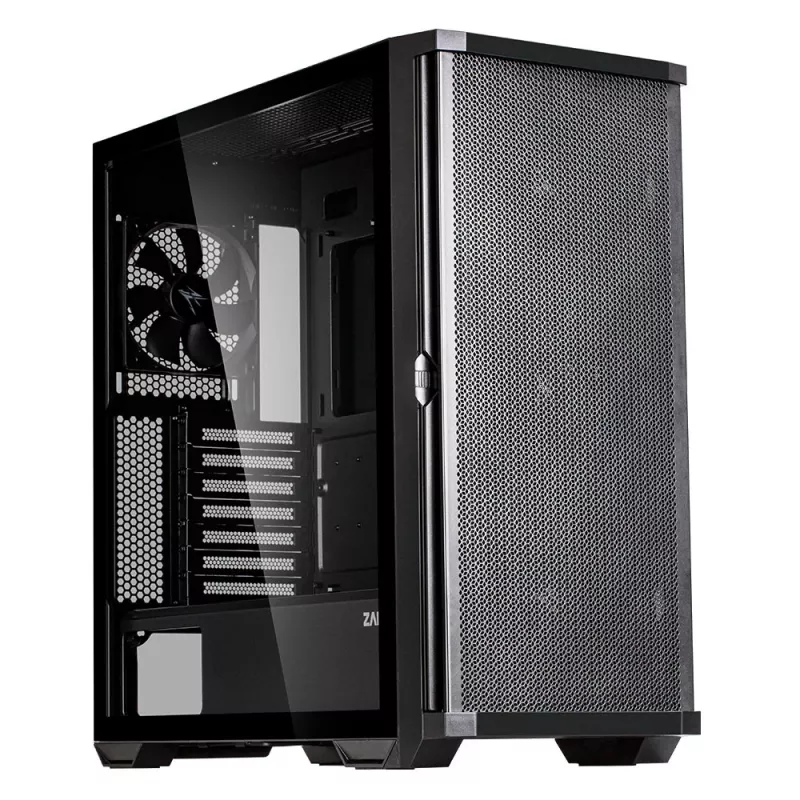

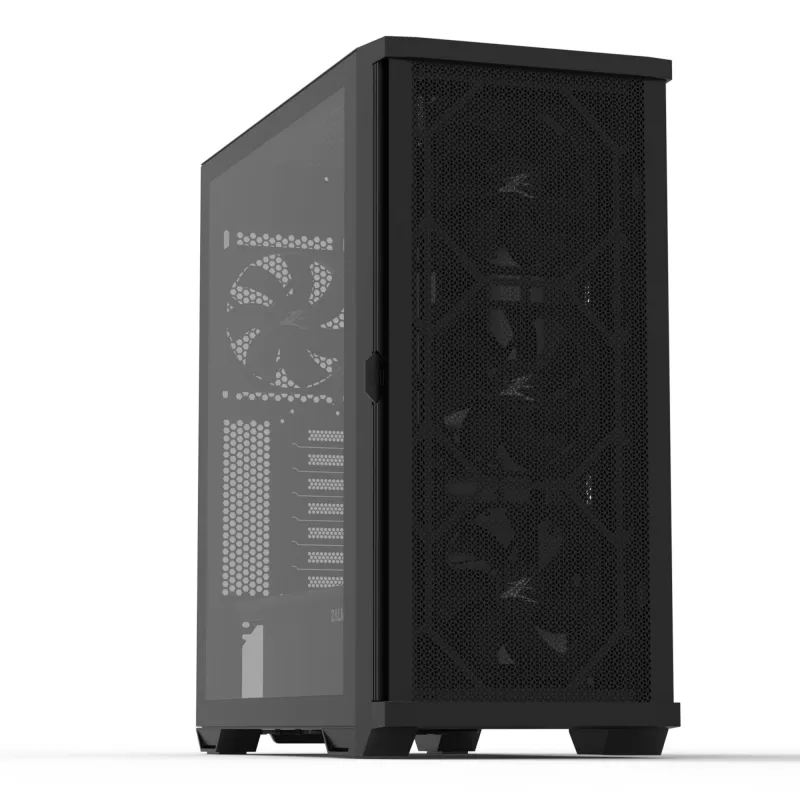

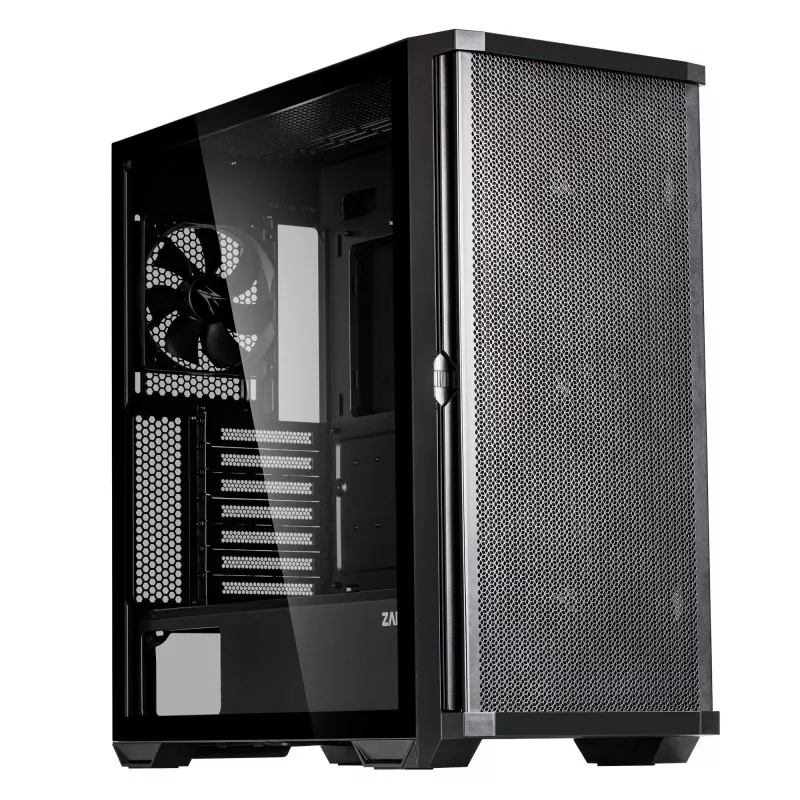

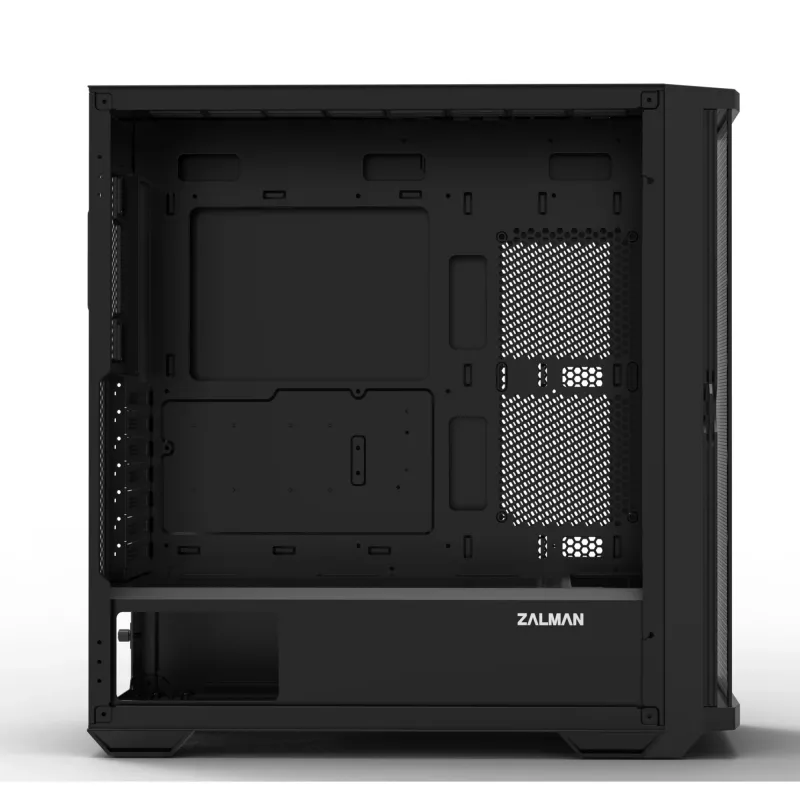

The Zalman Z10 is an ATX mid-tower PC case in black that combines a minimalistic front panel with mesh and tempered glass options to balance airflow and appearance. The chassis includes a 4 mm tempered glass side panel with stoppers for easy removal, a GPU support bracket with height adjustment, and multiple mounting locations for fans and radiators to support high-performance cooling configurations.

Advantages

The case offers versatile cooling support with pre-installed fans (three 140 mm front and one 120 mm rear) and space for additional fans or radiators up to 360 mm on the front and top. Cable management and straightforward expansion are provided by tool-less drive guides and a combo cage for 3.5" drives. Front I/O includes USB Type-C, two USB 3.0 ports, audio jacks, and convenient control buttons. The adjustable GPU bracket helps reduce GPU sag and can be positioned for single or dual-GPU setups.

Suitable for

• Gaming PC builds requiring strong airflow and radiator support
• Custom systems with ATX, mATX or Mini-ITX motherboards
• Users who want a clean exterior with tempered glass viewing
• Builders who need multiple storage drives and easy cable routing

Key specifications

• Model: Z10 — ATX Mid Tower
• Dimensions (D x W x H): 481 x 220 x 488 mm
• Weight: 8 kg
• Materials: Tempered glass (4 mm), steel, plastic
• Motherboard support: ATX, mATX, Mini-ITX
• Maximum GPU length: 395 mm
• Maximum CPU cooler height: 173 mm
• Maximum PSU length: 200 mm
• PCI expansion slots: 7
• Drive bays: 3.5" x 2 (1 cage combo, 1 tool-less guide), 2.5" x 2
• Pre-installed fans: Front 3 x 140 mm (black), Rear 1 x 120 mm (black)
• Fan support: Front 3 x 120/3 x 140 mm, Top 3 x 120/2 x 140 mm, Rear 1 x 120 mm, Bottom 2 x 120 mm, Side 2 x 120 mm
• Radiator support: Front/Top up to 360 mm, Rear 120 mm

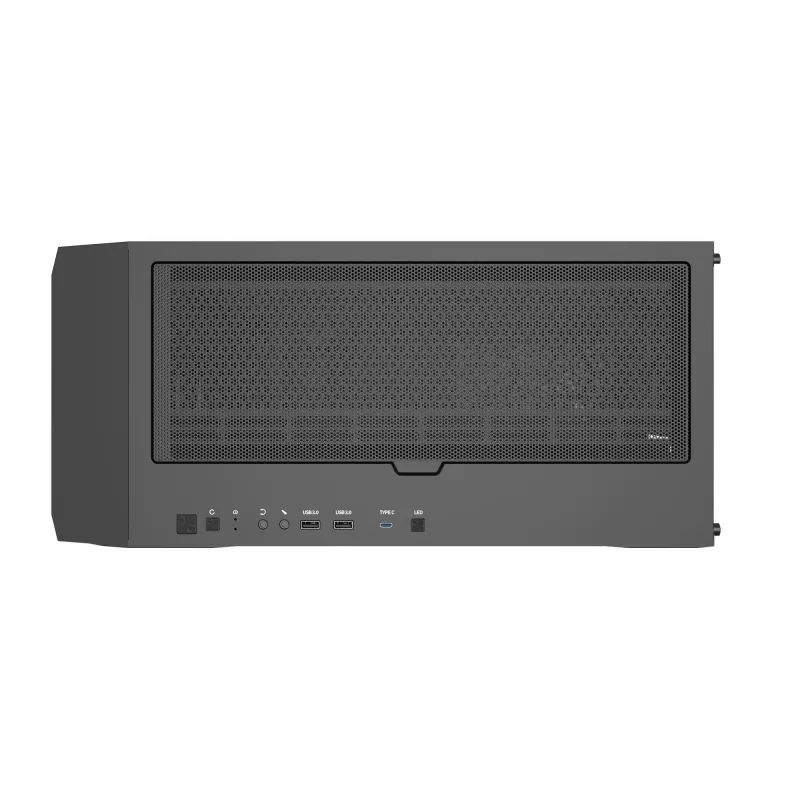

• I/O: 1 x Headphones, 1 x MIC, 2 x USB 3.0, 1 x USB Type-C, Reset, LED button, Power

How to use

Install the motherboard (ATX/mATX/Mini-ITX) into the case and mount the PSU in the designated shroud area, observing the 200 mm PSU length limit. Fit storage drives into the combo cage or tool-less guide and connect cables through the routing openings. Mount the GPU and adjust the included GPU support bracket vertically to align and stabilize the card. Install additional fans or radiators as needed: the front and top accept up to 360 mm radiators, while the rear accepts a 120 mm radiator.

Recommendations

For optimal airflow, keep the front mesh unobstructed and use the pre-installed 140 mm front fans with additional intake or top exhaust fans as required. When installing a long GPU, use the height-adjustable bracket to prevent sag. Ensure the PSU cables are routed behind the motherboard tray to improve air circulation and cable appearance.
