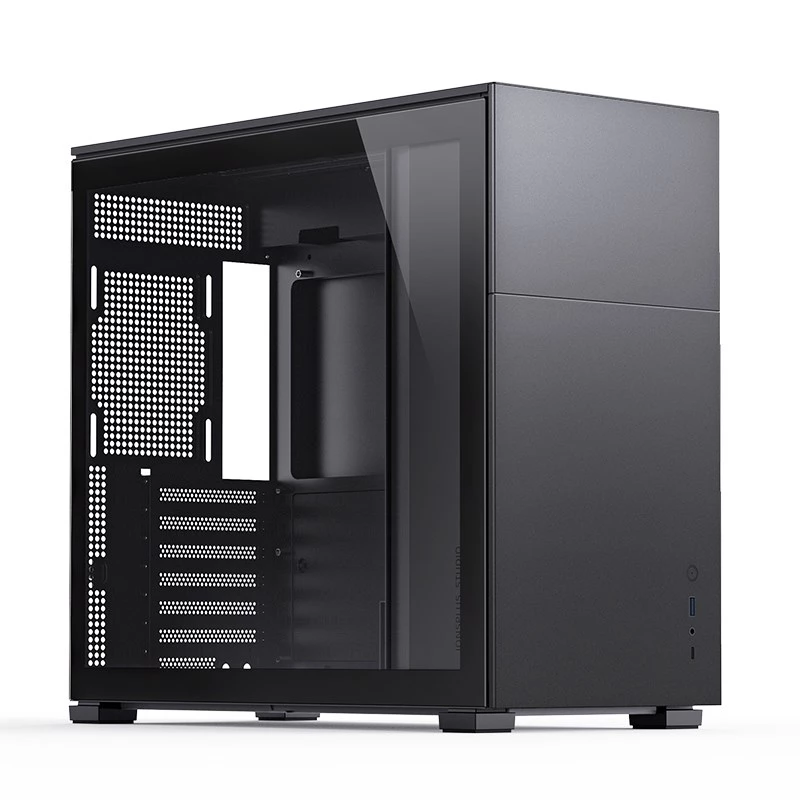

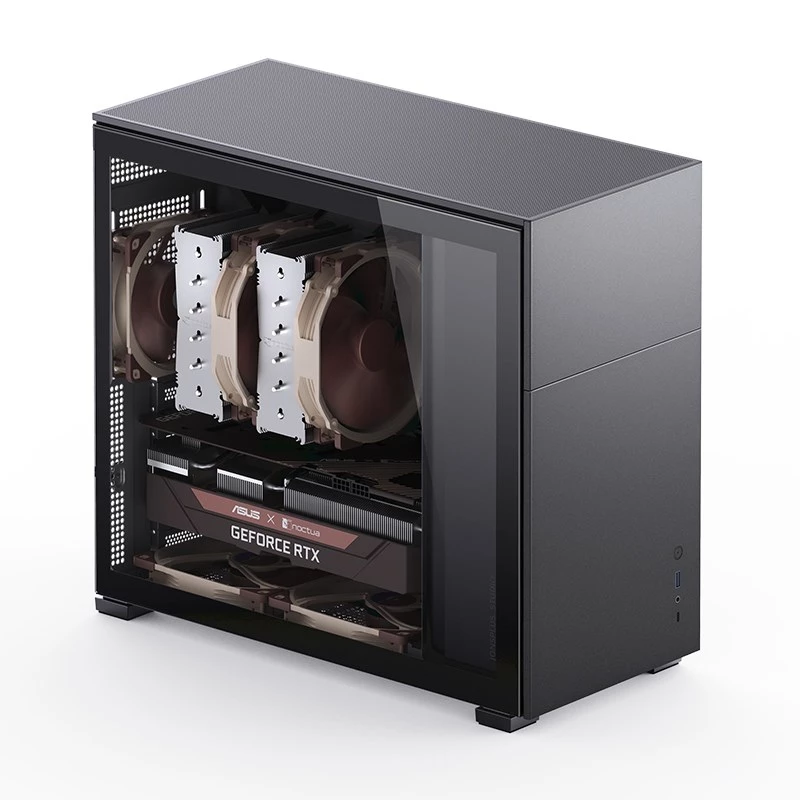

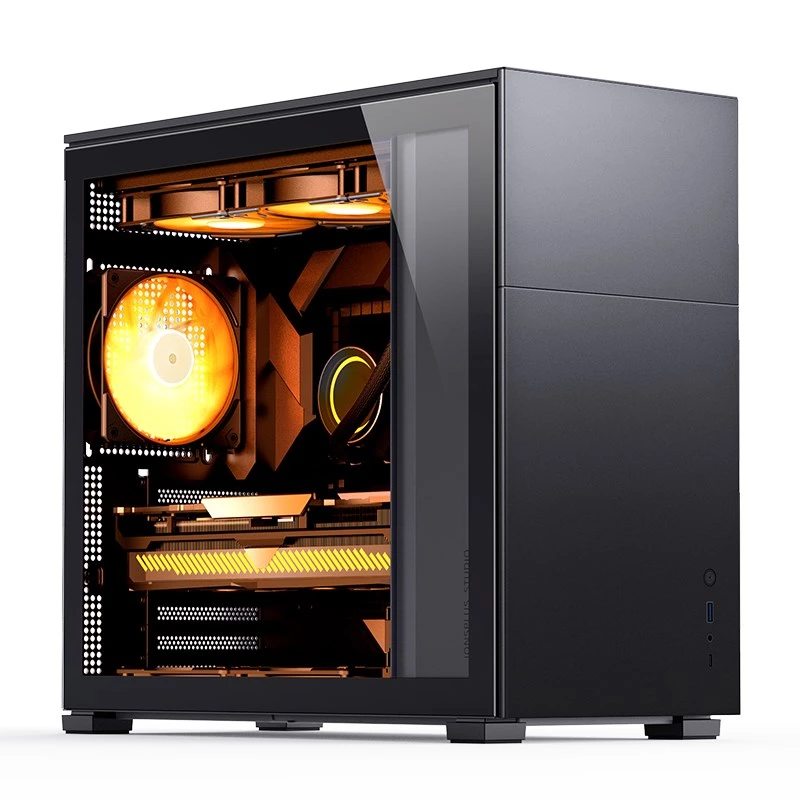

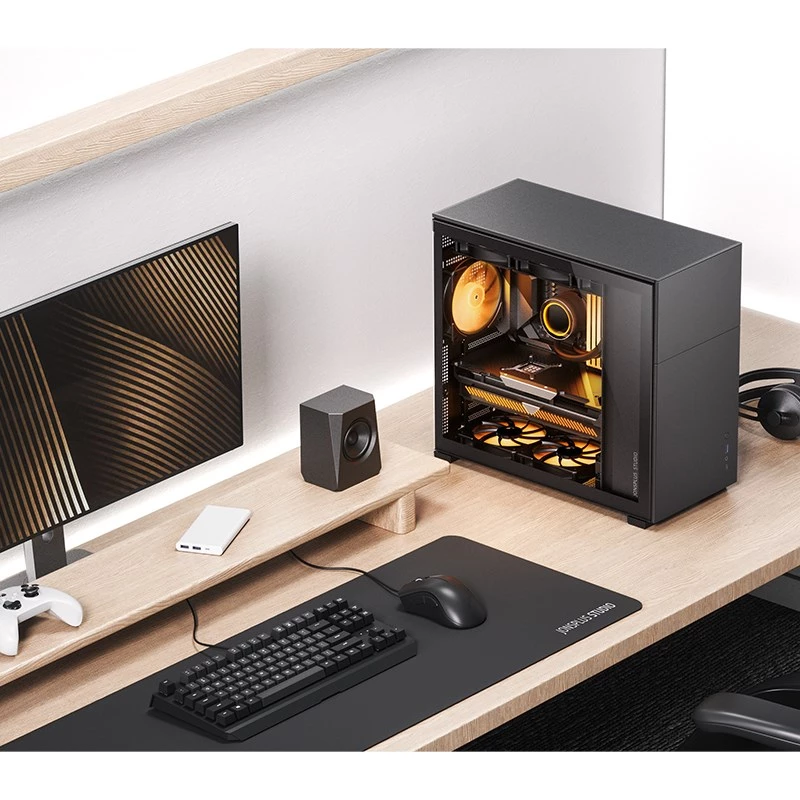

The Jonsbo D41 STD Midi Tower Black is a compact ATX-compatible PC case designed to balance airflow, component compatibility, and a restrained exterior. With support for Mini-ATX, Micro ATX and full ATX motherboards, front-mounted power supply layout, and a tempered side window, the chassis provides a practical platform for mainstream desktop builds. Its dimensions (205 mm width, 440 mm depth, 392 mm height) and steel construction deliver a stable structure while keeping overall weight near 6.7 kg.

Advantages

The case supports multiple cooling configurations including up to three 120 mm fans in front and rear positions and additional 120/140 mm fans on top, which helps maintain airflow for CPU and GPU cooling. Internal drive flexibility is provided with two 3.5" bays and three 2.5" bays for HDDs and SSDs. A single front USB 3.2 Gen 1 Type-A port offers convenient high-speed connectivity. The tempered side window allows component visibility without compromising a clean exterior design.

Suitable for

• Mainstream gaming and productivity desktop builds
• Compact ATX or Micro ATX systems with multiple storage drives
• Systems that require visible interior components via a side window
• Builds prioritizing straightforward airflow with standard 120/140 mm fans

Key specifications

• Form factor: Midi Tower
• Supported motherboard sizes: Mini-ATX, Micro ATX, ATX
• Drive bays: 2 × 3.5" and 3 × 2.5"
• Fan support: up to three 120 mm front/rear, top support for 120/140 mm
• Front I/O: 1 × USB 3.2 Gen 1 (Type-A)
• Side panel: tempered window
• Material: steel
• Exterior color: black
• Dimensions (W×D×H): 205 × 440 × 392 mm
• Weight: 6.7 kg

How to use

Install a compatible Mini-ATX, Micro ATX or ATX motherboard on the provided standoffs, mount the power supply in the front-mounted compartment, and position storage drives in the 3.5" or 2.5" bays. Configure airflow by installing up to three 120 mm fans in the front and rear and select 120/140 mm fans for the top if additional exhaust or intake is required. Route cables through available openings to maintain unobstructed airflow and close the tempered side window for an assembled appearance. Verify clearances for long graphics cards and CPU coolers before final assembly.

Recommendations

For balanced cooling, use front intake fans and a top or rear exhaust configuration; choose quality 120/140 mm fans for quieter operation. Place SSDs in the 2.5" bays for the operating system and frequently accessed applications, and use the 3.5" bays for bulk storage drives. Check motherboard standoff positions and cable routing to ensure secure installation and unobstructed airflow.
