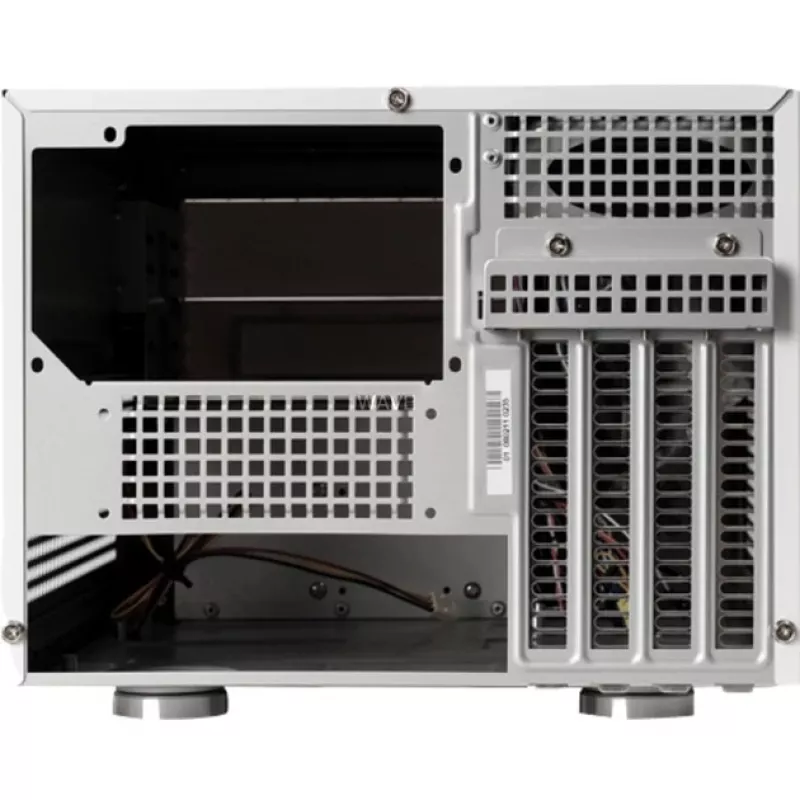

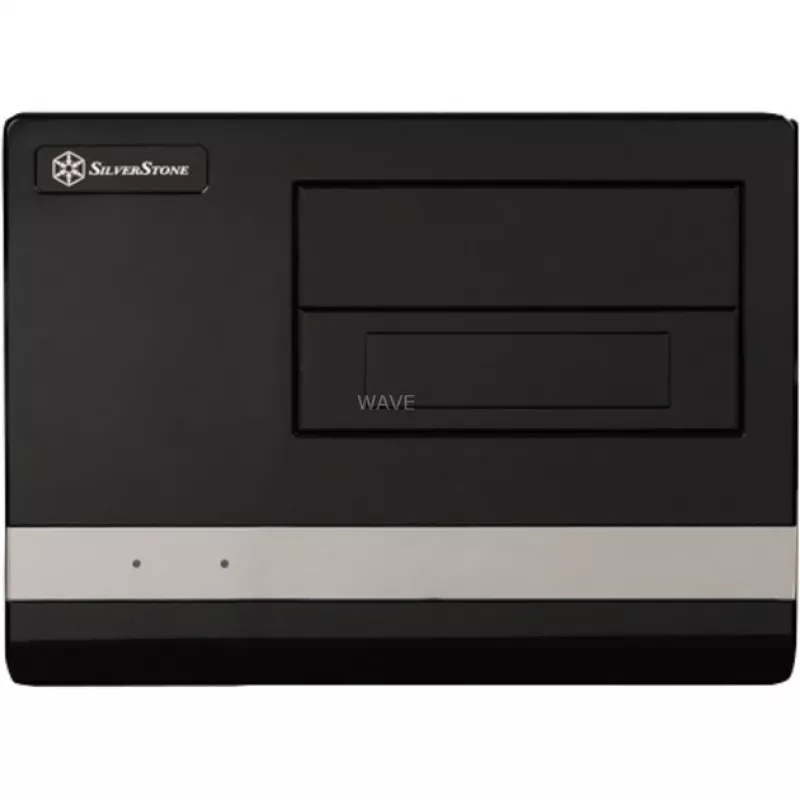

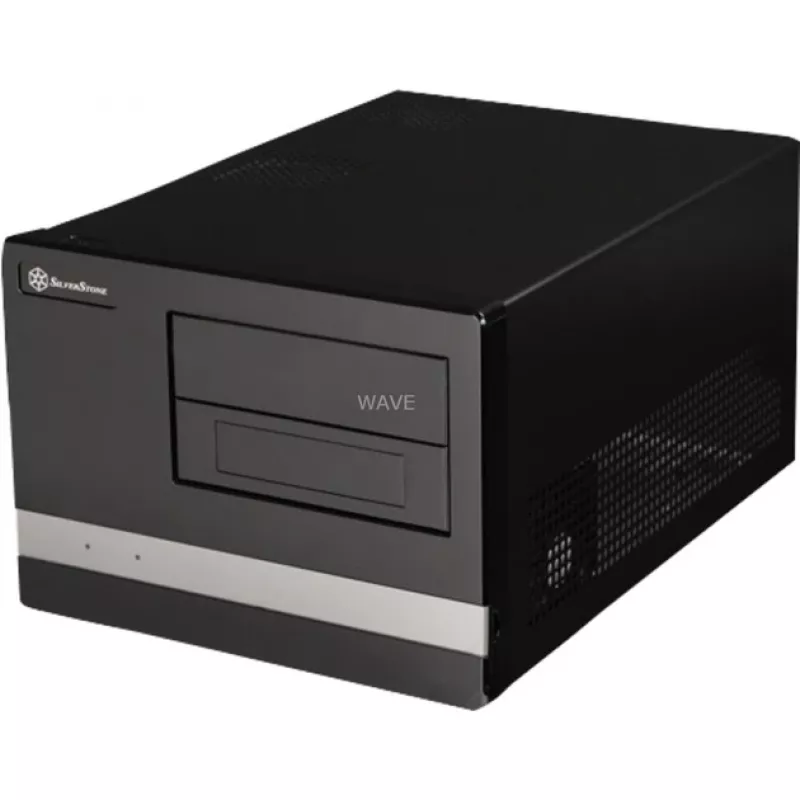

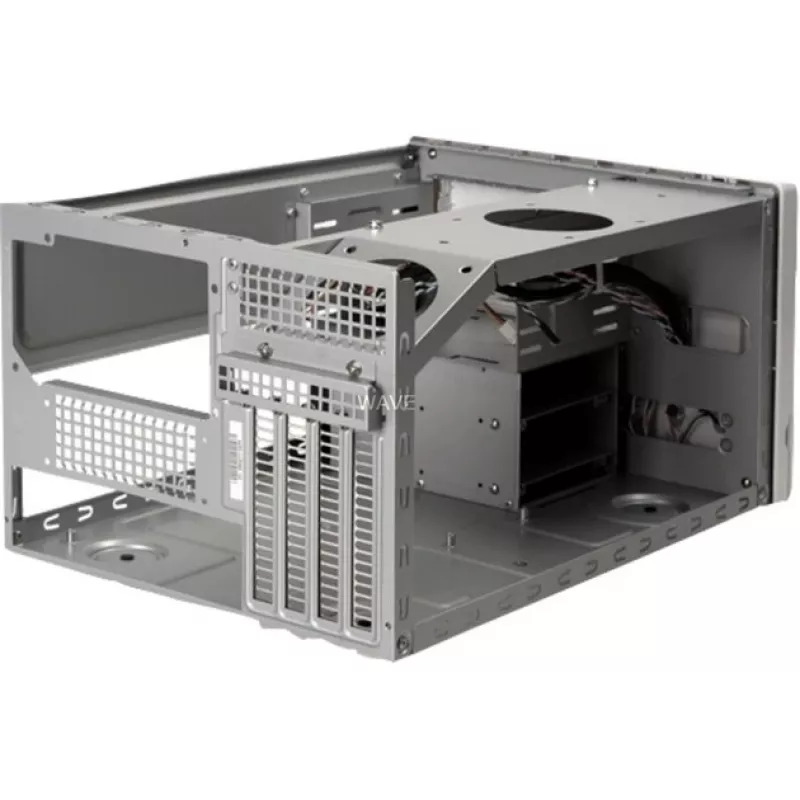

Caja de PC SILVERSTONE SG02-F Small Form Factor SFF Micro ATX, 2 bahías de 3,5", USB 3.0, negro

SILVERSTONE SG02-F Small Form Factor SFF Micro ATX case is a compact black chassis designed to house Micro ATX motherboards while accommodating larger components than typical SFF enclosures. Constructed from acrylic panels and SECC steel, the case supports two 3.5" hard drive bays, two 5.25" drive bays and a top-mounted power supply. Cooling provision includes a rear 80 mm fan and a side 80 mm fan position (compatible with 70/80 mm), while the front I/O supplies two USB 3.0 Type-A ports for fast external connectivity. The SG02-F preserves a compact footprint while supporting extended-length expansion cards and standard ATX power supplies for flexible build options.

Advantages

The SG02-F combines a steel structural frame with acrylic elements to deliver a quieter and more rigid chassis suitable for small form factor builds. Its layout allows installation of larger components—such as full-size power supplies and extended graphics cards—without significantly increasing external dimensions. Front-mounted USB 3.0 ports provide modern connectivity, and the presence of dual 5.25" and 3.5" bays enables both optical drives and multiple storage devices. Enhanced cooling layout with dedicated fan placements helps maintain thermal performance in a compact enclosure.

Suitable for

• Compact Micro ATX desktop builds where space saving is important
• Silent or acoustically optimized systems using the steel chassis
• Systems requiring multiple 3.5" drives or optical drives
• Small gaming or workstation builds that need extended-length graphics cards

Key specifications

• Form factor: Small Form Factor (SFF) compatible with Micro ATX motherboards
• Drive bays: 2 x 3.5" and 2 x 5.25"
• Cooling: Rear 80 mm fan and side 70/80 mm fan position
• Front I/O: 2 x USB 3.0 Type-A
• Power supply position: Top-mounted, supports standard ATX power supplies
• Expansion card support: Extended-length graphics cards compatible with the internal layout
• Materials: Acrylic panels and SECC steel structure
• Colour: Black
• Weight: 4.1 kg

How to use

Install a Micro ATX motherboard onto the provided standoffs, route cables through the available openings and mount a top-mounted ATX power supply into the designated compartment. Secure 3.5" drives into the dedicated bays and, if required, mount optical drives into the two 5.25" bays. Fit an 80 mm rear fan and optionally an 80 mm side fan to improve airflow. Connect front-panel USB 3.0 to the motherboard header for full-speed external device access. Ensure all components are securely fastened and that cables are arranged to avoid blocking airflow paths.

Recommendations

For quieter operation, use low-RPM fans and a high-efficiency ATX power supply; place storage drives on anti-vibration mounts if available and maintain unobstructed airflow from the side and rear fan positions. Verify GPU clearance before final installation when planning to use extended-length expansion cards.
