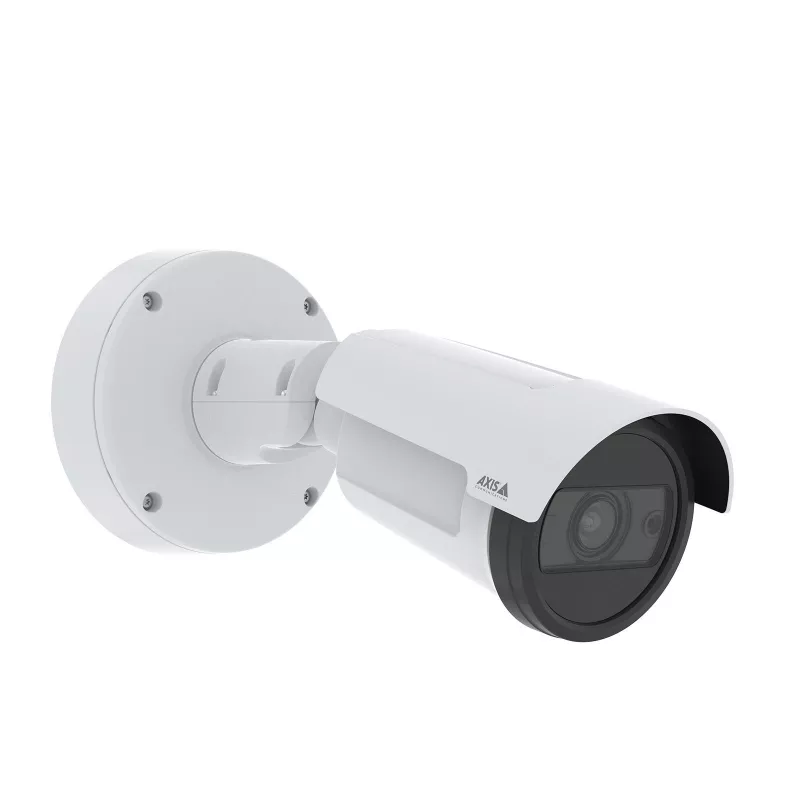

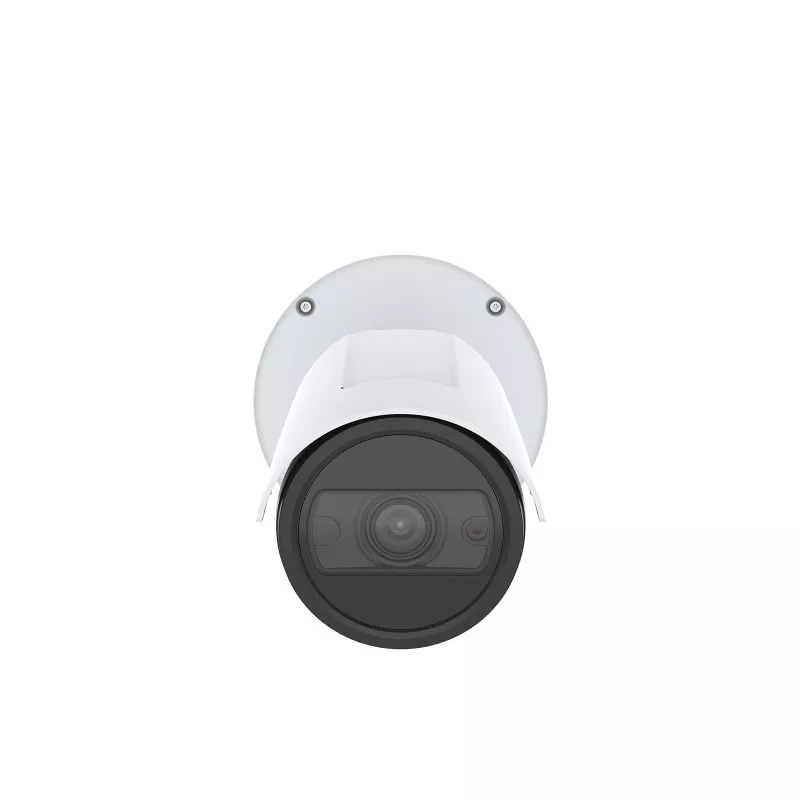

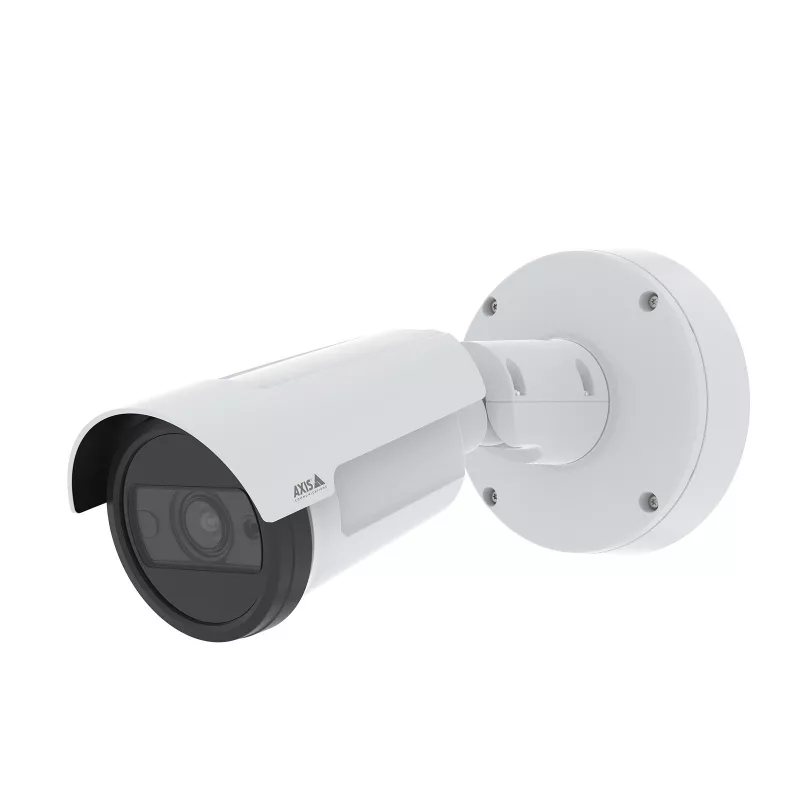

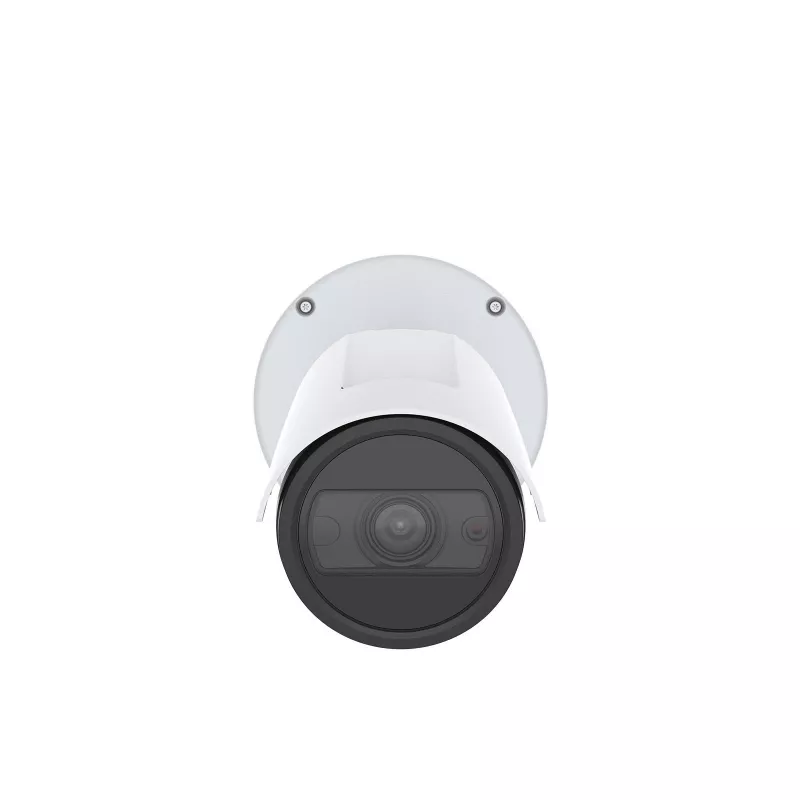

Cámara de vigilancia IP Axis 02340-001 Bullet 1920 x 1080

Based on ARTPEC-8, AXIS P1465-LE delivers excellent image quality in 2 MP. It includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. With AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles. Available with a wide or tele lens, this IP66/IP67, NEMA 4X, and IK10-rated camera can withstand winds up to 50 m/s. Lightfinder 2.0, Forensic WDR, and OptimizedIR ensure sharp, detailed images under any light conditions. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network.

• Analytics with deep learning; Audio and I/O connectivity; Built-in cybersecurity features; Lightfinder 2.0, Forensic WDR, OptimizedIR; Two lens alternatives

Summary: Axis 02340-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.01 lx, Lens viewing angle, horizontal: 117°, Lens viewing angle, vertical: 59°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB | Vendor Homepage: https://www.axis.com/products/axis-p1465-le | Fog proof: Yes | Form factor: Bullet | Housing material: Aluminium/Polycarbonate (PC) | IK code: IK10 | International Protection (IP) code: IP67 | Mounting type: Wall/Pole | Product colour: White | Protection features: Vandal proof | Connectivity technology: Wired | Day/night mode: Yes | Placement supported: Indoor & outdoor | PTZ control: Yes | Type: IP security camera | Wide Dynamic Range (WDR): Yes | Camera pixel size: 2.9 | Camera shutter speed: 1/71500 - 2 | Lens viewing angle, horizontal: 117 | Lens viewing angle, vertical: 59 | Minimum illumination: 0.01 | Optical sensor size: 1/2.8 | Progressive scan: Yes | Sensor type: CMOS | Signal-to-Noise Ratio (SNR) (panoramic camera): 55 | Auto focus: Yes | Closest focusing distance: 0.5 | Lens diameter: 29 | Zoom capability: Yes | LED type: IR | Night vision: Yes | Night vision distance: 40 | Frame rate: 60 | Maximum resolution: 1920 x 1080 | Noise reduction: Yes | Noise reduction technology: 2D noise reduction,3D noise reduction | Privacy masking: Yes | Video compression formats: AVC/H.264/H.265/HEVC/MPEG4 | Video streaming: Yes | Bluetooth: No | Ethernet interface type: Fast Ethernet/Gigabit Ethernet | Ethernet LAN: Yes | Networking standards: IEEE 802.1x | Supported network protocols: IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, | Wi-Fi: No | Built-in HDD: No | Card reader integrated: Yes | Compatible memory cards: MicroSD (TransFlash)/MicroSDHC/MicroSDXC | Flash memory: 8192 | Internal memory: 1024 | DC-in jack: Yes | Ethernet LAN (RJ-45) ports: 1 | Microphone in: Yes | HTTPS encryption: Yes | Security algorithms: EAP-TLS/HTTPS/TLS | DC output voltage: 10,28 | Power consumption (max): 12.95 | Power consumption (Power over Ethernet (PoE)): 7.9 | Power consumption (typical): 7.2 | Power source type: DC,PoE | Operating relative humidity (H-H): 10 - 100 | Operating temperature (T-T): -40 - 60 | Storage relative humidity (H-H): 5 - 95 | Storage temperature (T-T): -40 - 65 | Diameter: 132 | Length: 280 | Weight: 1200 | Number of cameras: 1 | Model: P1465-LE 29 mm | Units per Shipping Box: 1 | Unit Calculated Volume: 0.005824 | Unit Calculated Weight: 1.55

How to use

Mount the bullet camera on a wall or pole using the appropriate bracket and ensure the housing and seals are intact for outdoor use. Connect the camera to a wired Ethernet network for power and data, configure network and security settings according to your system requirements, and select the wide or tele lens model as needed for the desired coverage. Use the camera’s built-in analytics to configure detection and classification rules, and adjust IR and exposure settings to optimise image quality in varying light conditions.

Recommendations

Install the camera at a secure height to protect against tampering and to achieve the recommended field of view; perform regular inspection of seals and mounts after severe weather; and use the Axis Edge Vault feature to register and authorize the device on your network for improved security.
