Cámara de vigilancia IP domo AXIS 02502-001 – montaje en techo interior, 1920×1080, objetivo de 3,6 mm, CMOS de 1/2,9", 0,04 lx, rango de giro de 250°

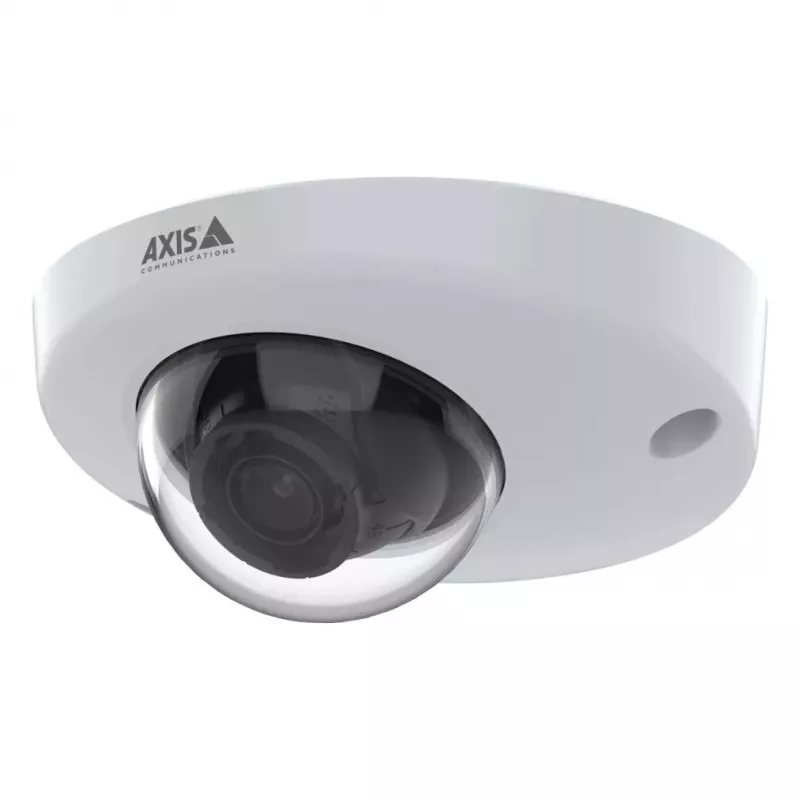

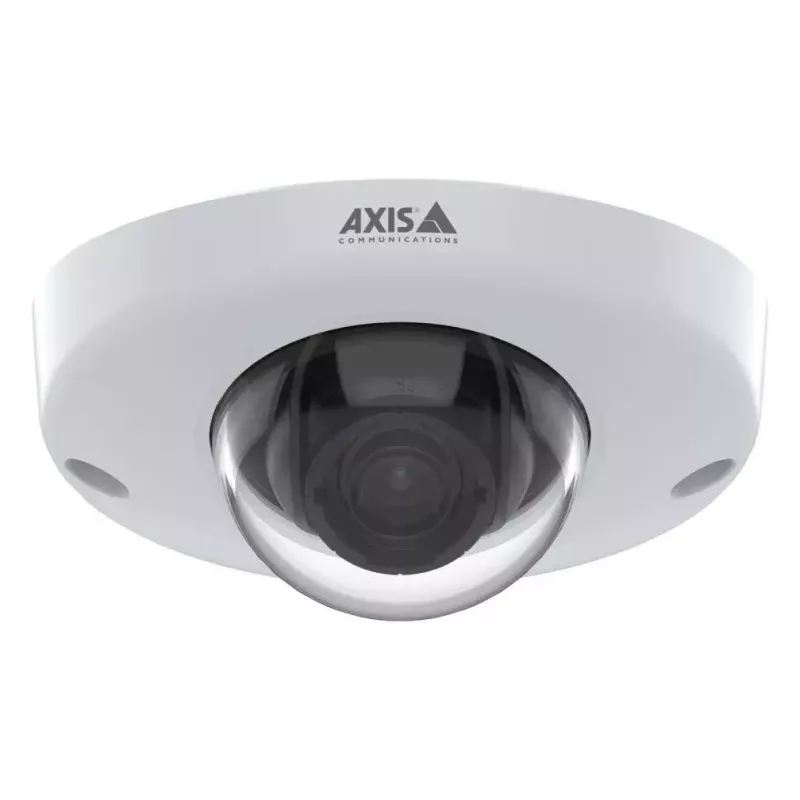

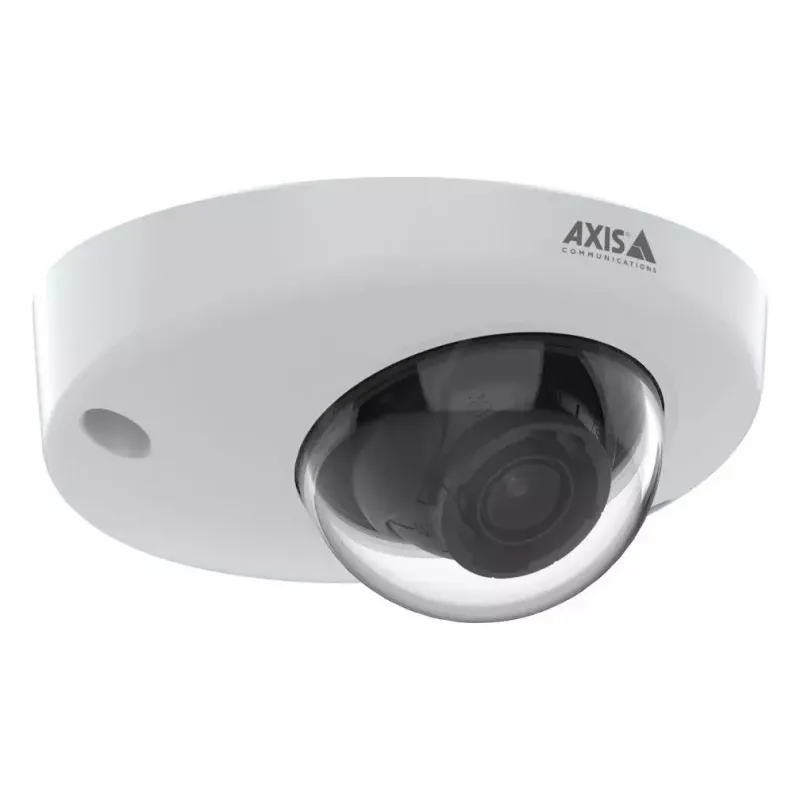

AXIS 02502-001 is a compact dome IP security camera designed for indoor ceiling mounting and fixed wired installations. It records Full HD 1920×1080 video using a 1/2.9" CMOS sensor and a 3.6 mm lens offering an approximately 88° horizontal field of view. The camera has a minimum illumination of 0.04 lx, a closest focus distance of 0.3 m and supports a 250° rotation range for flexible alignment. The model is built to meet transportation-industry regulations regarding fire safety and to withstand vibration and a wide temperature range; when combined with AXIS TP3826-E housing it can also be mounted externally on buses.

Advantages

The camera delivers detailed Full HD images with technologies that improve performance in low-light and high-contrast scenes, including Lightfinder and Forensic WDR. Traffic light mode helps differentiate traffic signal colours in dim conditions. Its compact dome form factor and robust build make it suitable for environments where vibration and temperature variations occur, and optional M12 interchangeable lenses allow adjustment of the field of view to match specific monitoring needs.

Suitable for

Key specifications

How to use

Mount the dome camera on a suitable indoor ceiling surface and connect to wired network and power according to installation guidelines. Adjust rotation and lens orientation within the 250° range to achieve the desired field of view and focus down to 0.3 m where close detail is required. If external bus installation is needed, install the camera inside the AXIS TP3826-E housing and follow the housing manufacturer's instructions for secure mounting and sealing.

Recommendations

For optimal image quality in low-light and high-contrast situations enable Lightfinder and Forensic WDR features and select an appropriate M12 lens if a wider or narrower field of view is required. Verify compliance with local transport and fire-safety regulations when deploying in vehicles and use the recommended housing for external installations.
