Cámara IP LevelOne, 2 megapíxeles, 802.3af PoE, día y noche

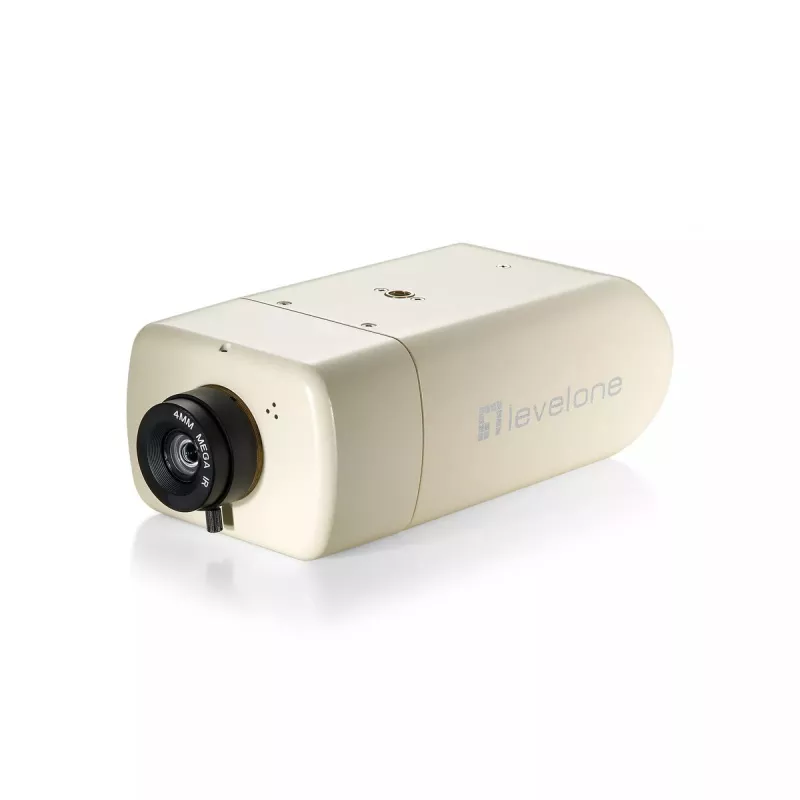

The LevelOne FCS-1131 is a 2‑Megapixel PoE day & night network camera delivering up to 1920 x 1080 resolution with H.264 and MJPEG compression. Designed for stable wired installation with 802.3af PoE support, the camera includes a removable IR‑cut filter, built‑in Micro SD/SDHC slot, BNC analog output and digital I/O for sensor and alarm connections. Onboard image enhancement technologies such as 3DNR and WDR improve picture clarity in low light and high-contrast scenes, making the camera suitable for professional security environments.

Advantages

The camera provides full HD 2‑Megapixel resolution with simultaneous support for four independent video streams, enabling flexible viewing and recording configurations. WDR and 3DNR reduce backlight issues and noise for clearer images across challenging lighting conditions. Local storage via Micro SD/SDHC, analog BNC output and dual power options (12 VDC and PoE IEEE 802.3af) increase deployment versatility. The device is ONVIF-compliant and comes with free 64‑channel management software plus mobile app support for remote monitoring.

Suitable for

• Airport, bank and casino surveillance
• Retail stores and office premises requiring day/night monitoring
• Ceiling or wall mounted fixed-location security monitoring

Key specifications

• Image sensor: CMOS, 2‑Megapixel (1920 x 1080)

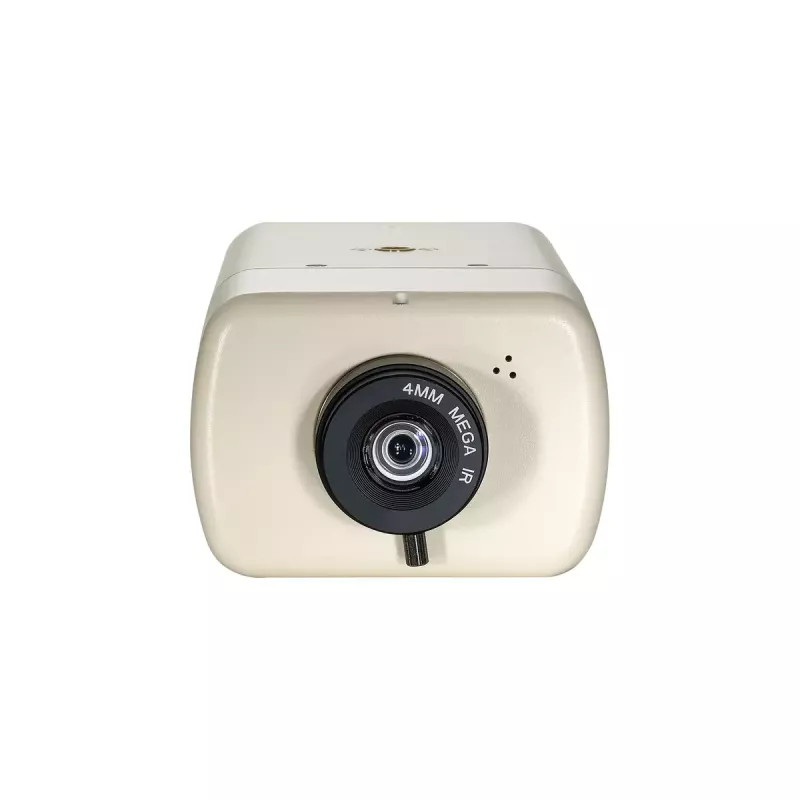

• Lens: 4 mm fixed focal length; horizontal viewing angle ~65.4°
• Video compression: H.264, MJPEG
• Frame rate: up to 30 fps
• Streams: up to 4 simultaneous video streams
• Low light sensitivity: minimum illumination 0.02 lx
• Image features: WDR, 3DNR, removable IR‑cut filter, privacy masks, 10 motion detection zones
• Storage: Micro SD/SDHC card slot (local storage)

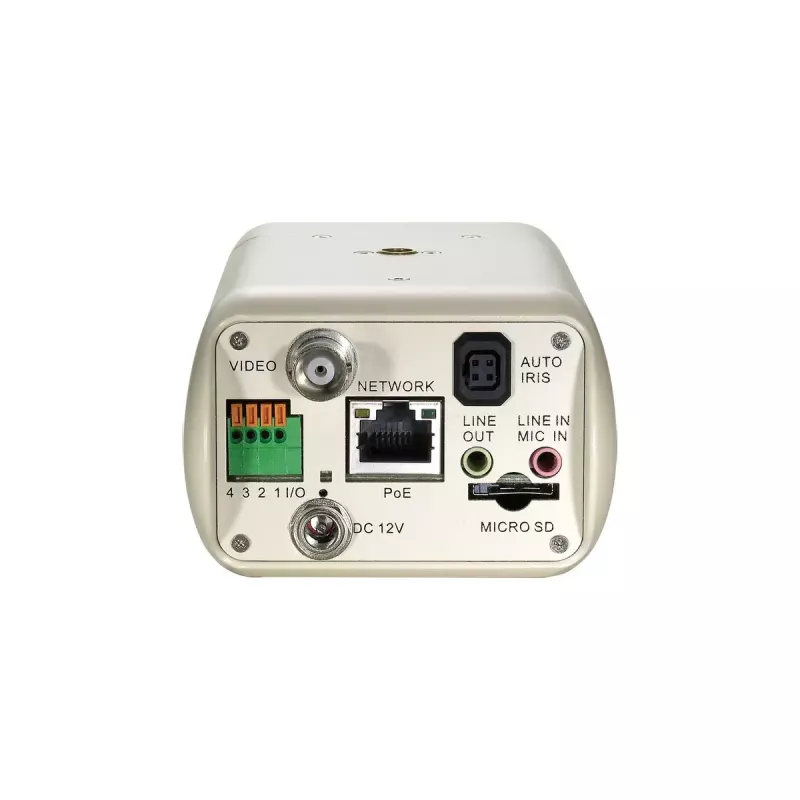

• Connectivity: Wired Ethernet (PoE IEEE 802.3af), BNC analog output, 1 DI / 1 DO
• Power: 12 VDC or PoE (802.3af)
• Certifications: CE, FCC, ONVIF
• Physical: weight 0.38 kg; color: beige; mounting: ceiling/wall

How to use

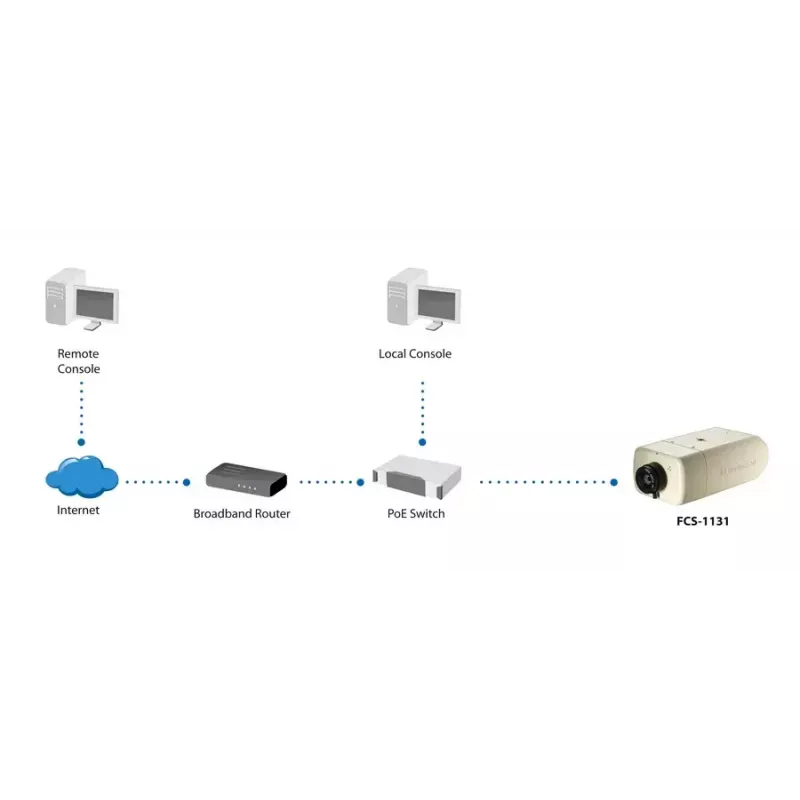

Mount the camera on a ceiling or wall and connect it to a PoE-capable switch or provide 12 VDC power. Insert a Micro SD/SDHC card for local recording if required and connect any external sensors to the digital input/output for alarm integration. Configure network settings and video streams via the camera web interface or ONVIF-compatible NVR. Install the included 64‑channel management software (IP CamSecure) on a monitoring PC and, if needed, install the iCamSecure mobile app to view live feeds and receive alerts on a smartphone.

Recommendations

For best image quality, position the camera to avoid direct strong light sources in the field of view, enable WDR for high-contrast scenes, and use the built-in 3DNR when monitoring in low-light conditions. Regularly test motion detection zones and alarms and maintain firmware updates for security and compatibility.
