Cargador Autel multicargador para EVO Max Serie modelo 102002545 — 3 baterías, USB-C, 120 W de potencia de carga, entrada 100–240 V

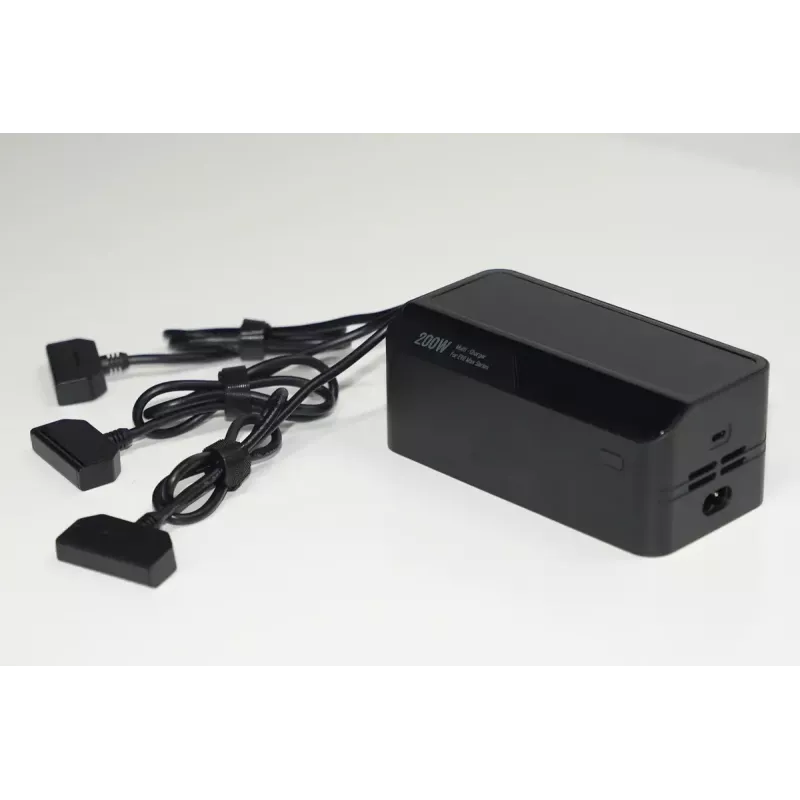

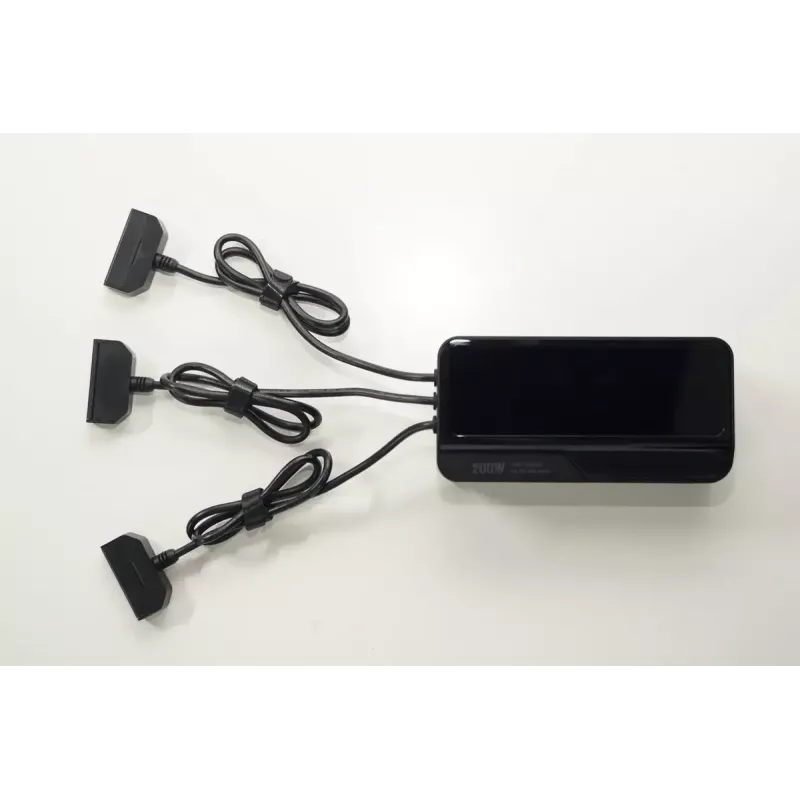

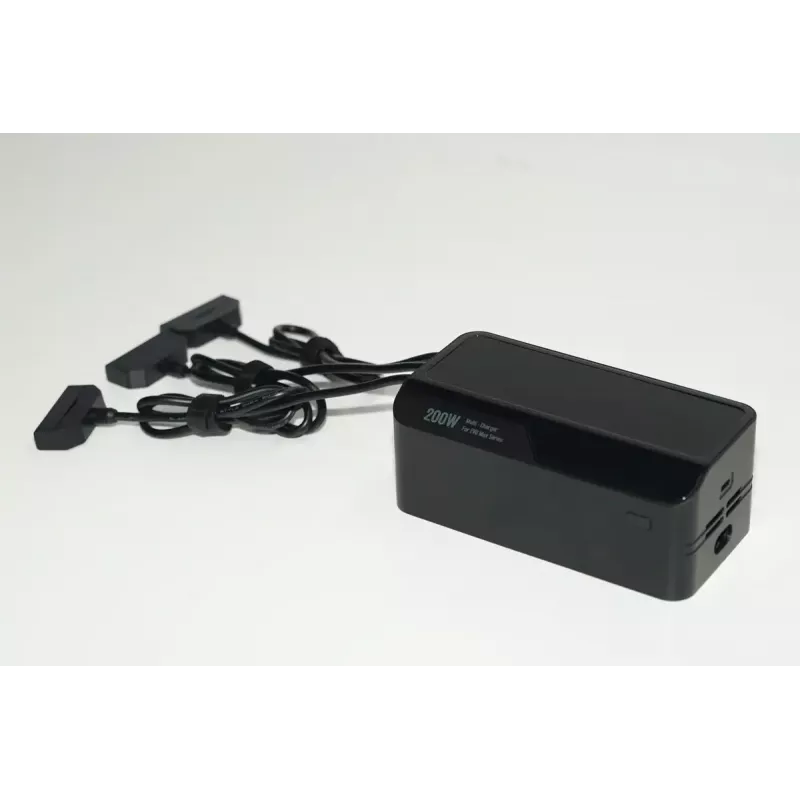

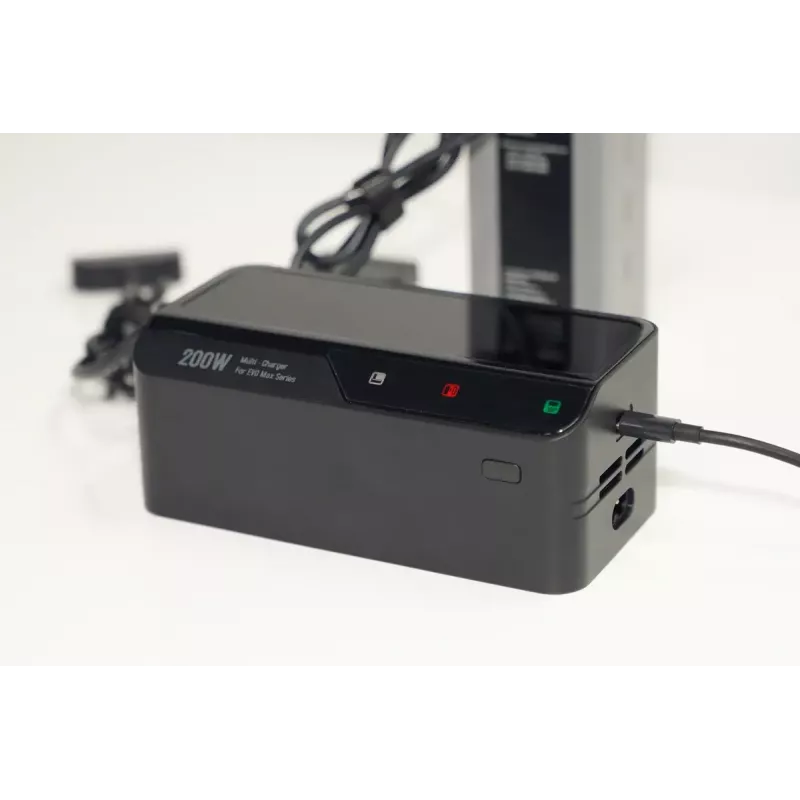

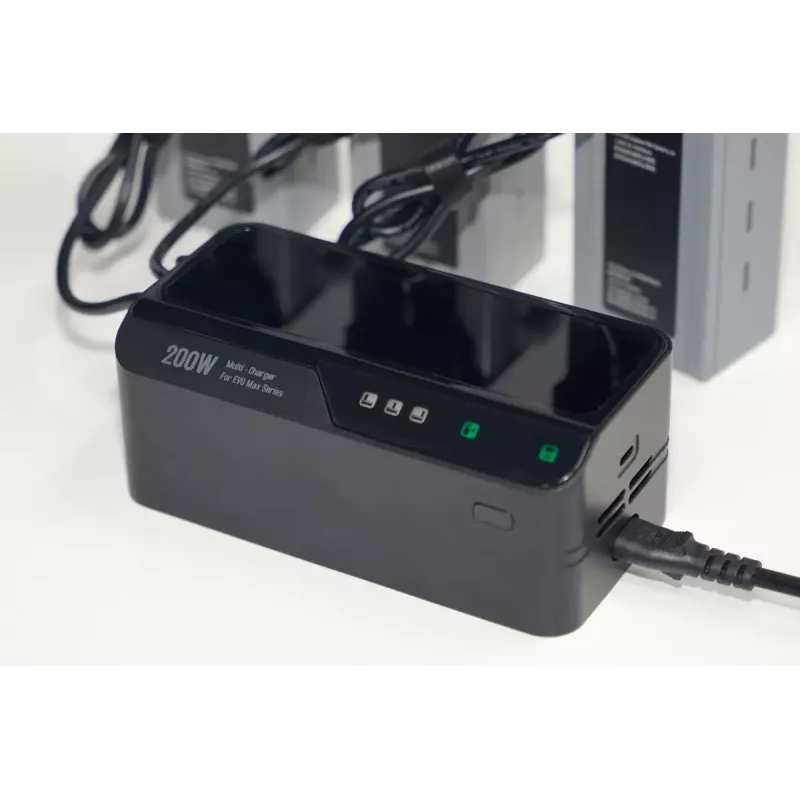

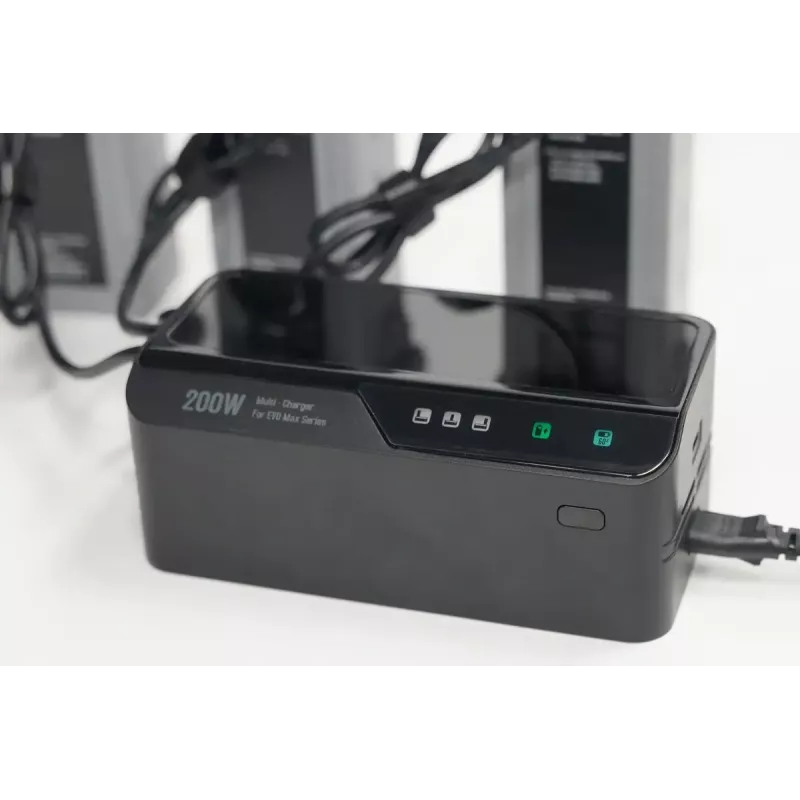

Autel multi-charger model 102002545 is a compact black charging unit designed for EVO Max series batteries. It supports sequential charging of up to three batteries and includes cables and a power supply cable. The charger features a USB Type-C port and accepts AC input from 100 to 240 V with 50/60 Hz frequency.

Advantages

The charger provides rated charging power of 120 W with a maximum available power of 200 W, enabling faster recharge cycles for compatible batteries. Its compact dimensions (151 × 88 × 98 mm) and 560 g weight make it portable for field use. Inclusion of cables and a power supply cable allows immediate use out of the box.

Suitable for

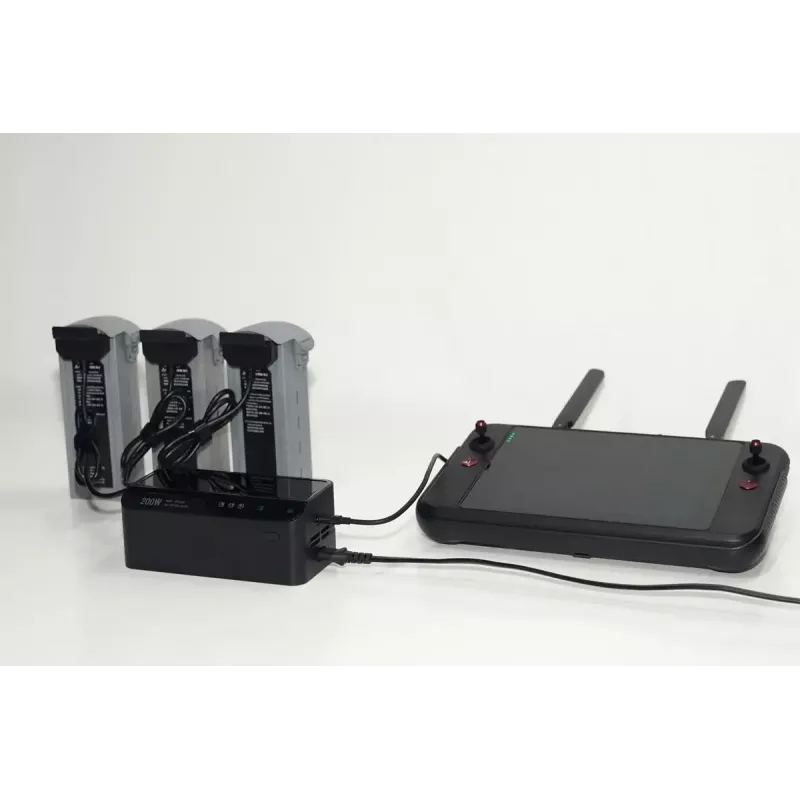

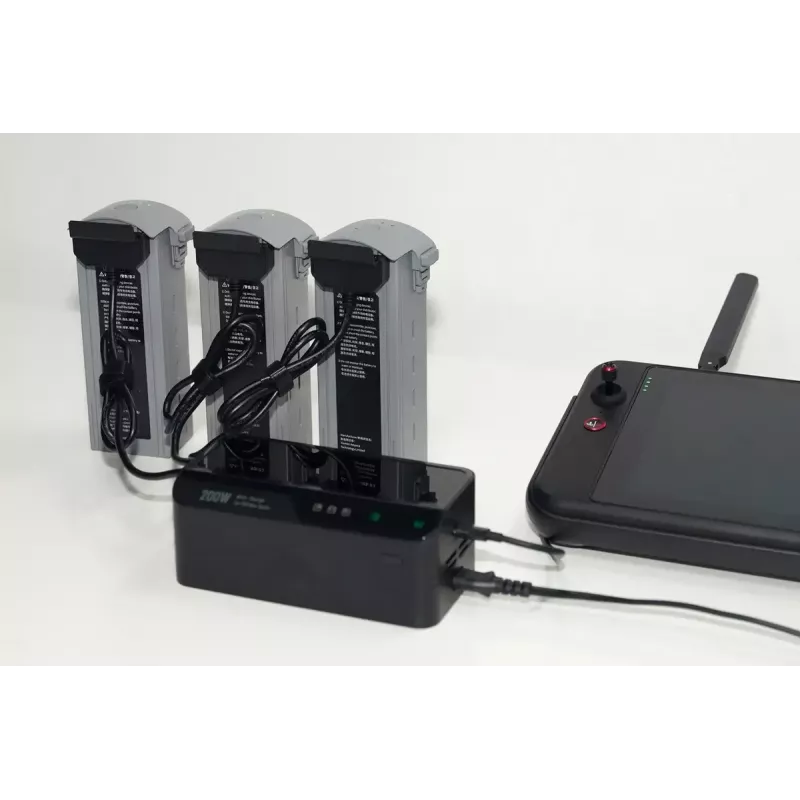

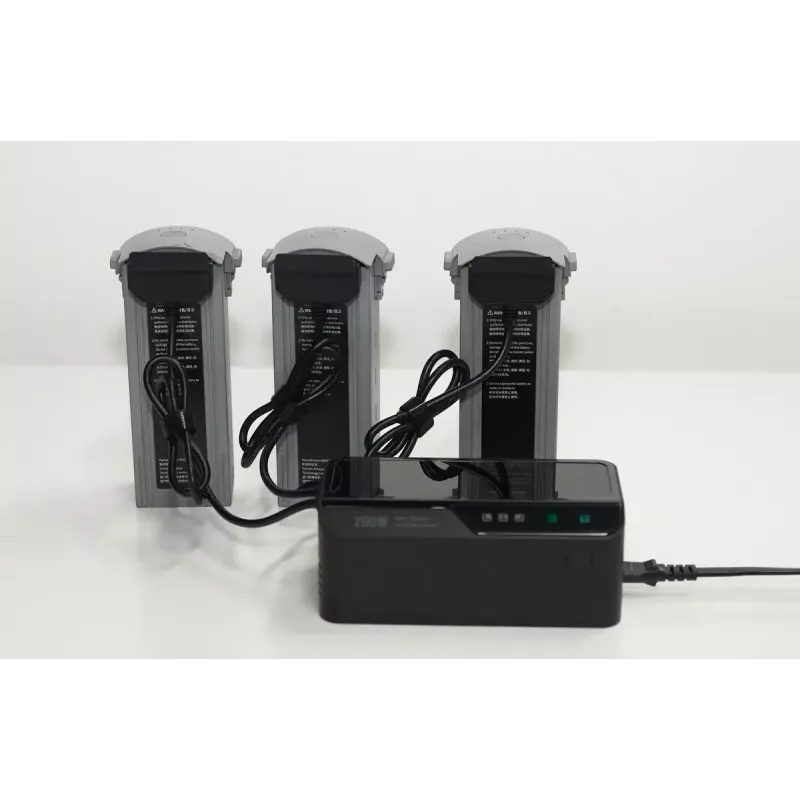

• Charging EVO Max series drone batteries sequentially (up to three batteries)
• Field operations where a compact, portable charger is needed
• Environments with standard AC mains 100–240 V and 50/60 Hz

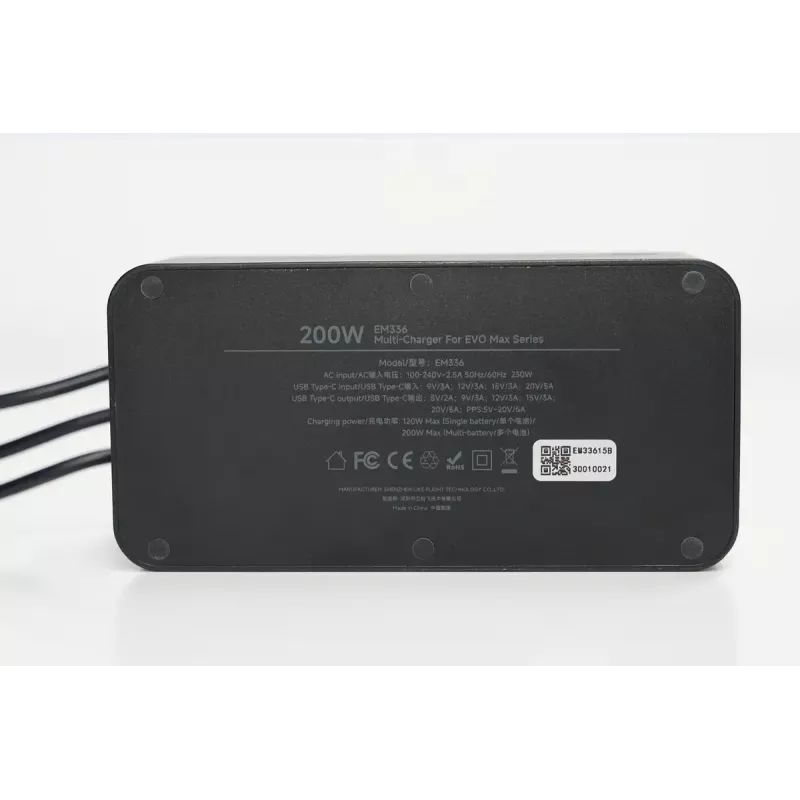

Key specifications

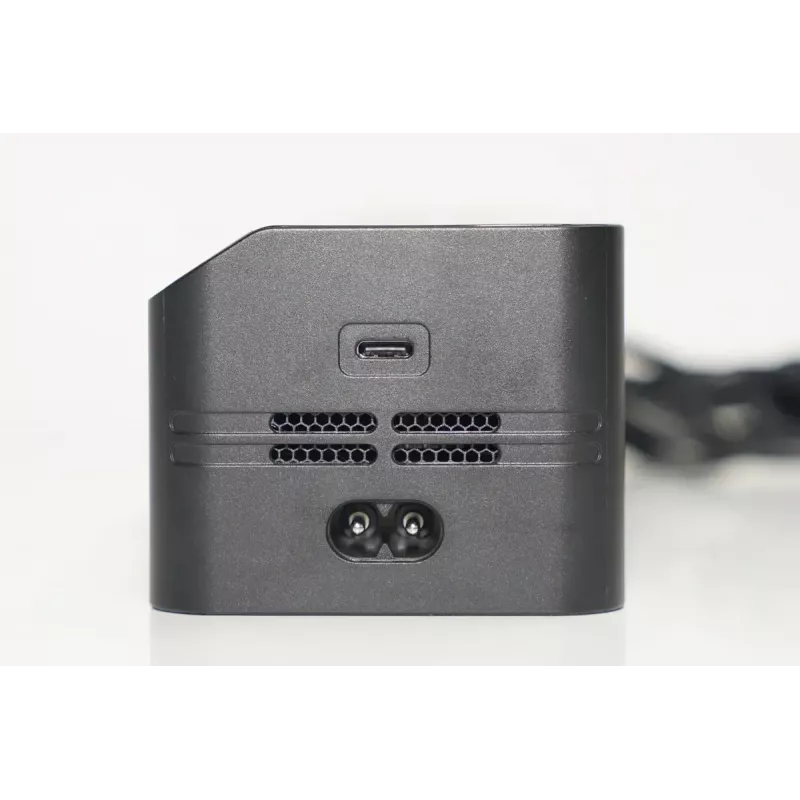

• USB port type: USB Type-C
• Supported batteries: up to 3 (sequential charging)
• Rated charging power: 120 W
• Maximum charging power: 200 W
• Typical charging time: approximately 60–110 minutes
• Input current: 2.5 A
• AC input voltage: 100–240 V
• AC input frequency: 50/60 Hz
• Operating temperature range: 0–40 °C
• Dimensions (W × D × H): 151 × 88 × 98 mm
• Weight: 560 g
• Color: Black

How to use

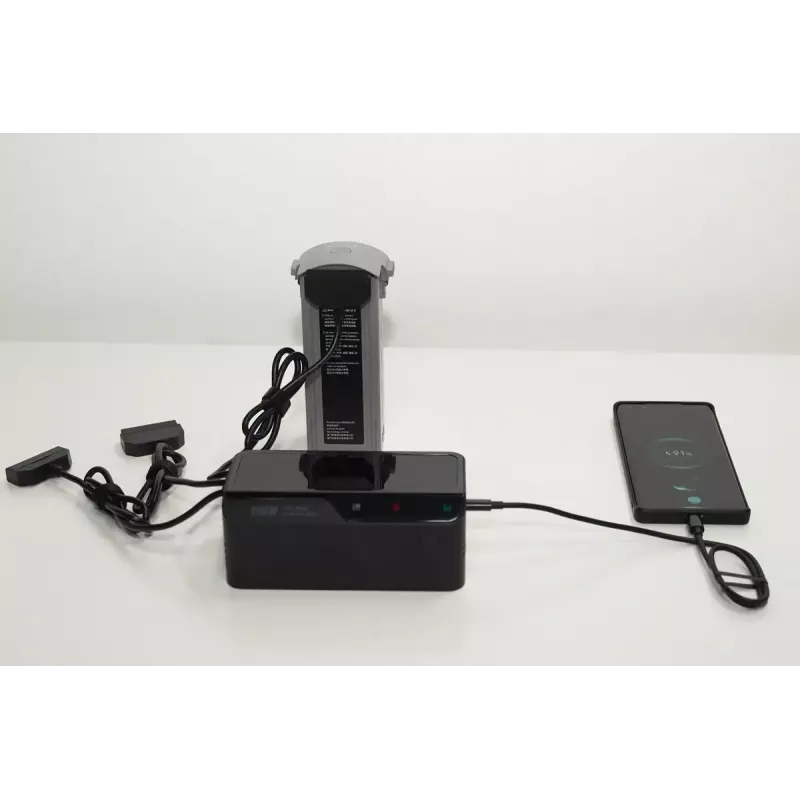

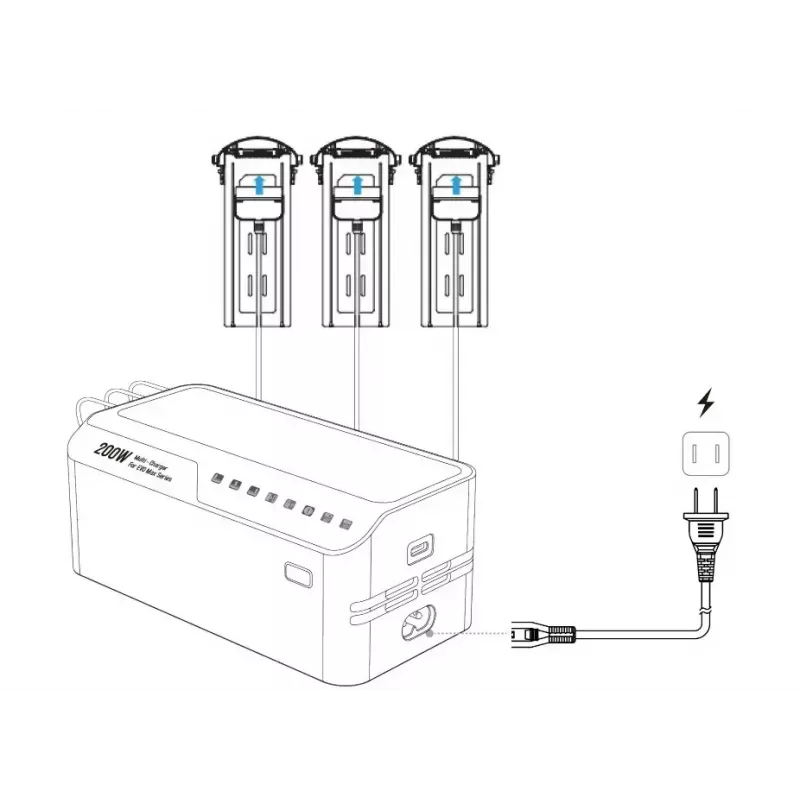

Connect the charger to a suitable AC outlet (100–240 V, 50/60 Hz) using the supplied power cable. Insert EVO Max series batteries one at a time or in the sequence the charger supports, and use the USB-C port as required for accessory power or firmware updates. Monitor charging progress and remove batteries when charging is complete. Follow any battery manufacturer instructions for safe charging.

Recommendations

Do not use the charger in humid environments. Operate and store the charger within the specified temperature range (0–40 °C) and avoid exposure to water or excessive moisture.
