Carrito para monitor XXL B-Tech BT8590/B

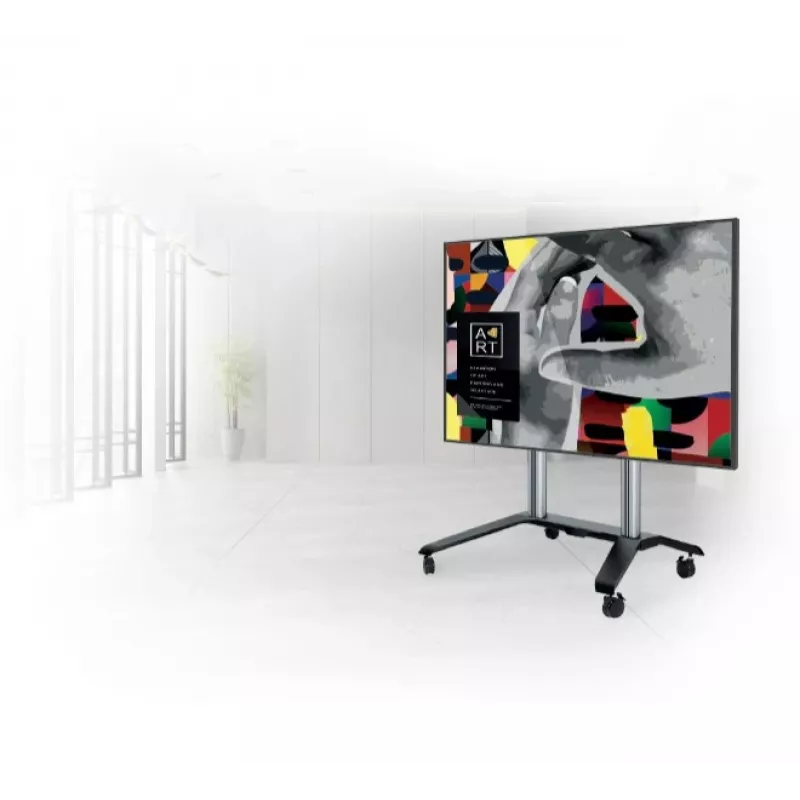

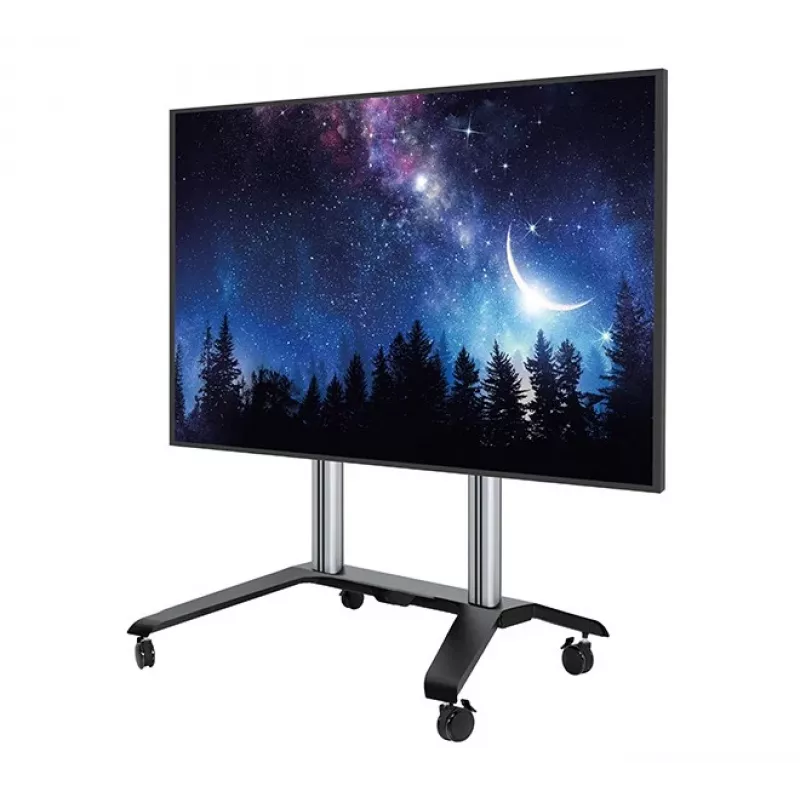

Large-format displays demand a mounting solution that is both secure and mobile. The B-Tech BT8590/B XXL Mobile Trolley answers this need with a robust steel and aluminium frame engineered to support screens from 65" to 120" and loads up to 130 kg. Its heavy-duty braked castors and integrated cable management make it a practical choice for conference rooms, education, and digital signage environments.

Who is it for

This trolley is built for AV integrators, facility managers, and businesses that need to reposition large displays frequently. It suits corporate boardrooms, training centres, exhibition spaces, and retail settings where a single screen must serve multiple locations without permanent wall mounting.

Main features

• Supports screens from 65" to 120" with a maximum load of 130 kg
• VESA mounting range from 200 x 200 mm to 1200 x 800 mm
• Manual height adjustment with screen centre from 1130 mm to 1630 mm
• Tilt adjustment of +/- 15° for optimal viewing angles
• Landscape or portrait orientation support
• Integrated cable management for a clean installation
• Heavy-duty non-marking braked castors for safe mobility
• Security screws to deter tampering
• Hook-on screen installation for quick mounting
• Compatible with B-Tech BT8502 accessory shelf (sold separately)
• Powder-coated black finish for durability

Specifications

• Product type: Mobile flat screen trolley
• Material: Steel, aluminium
• Colour: Black
• Base dimensions (W x D): 1125 mm x 700 mm
• Number of screens supported: 1
• Adjustable height mechanism: Manual
• Screen size compatibility: 65" - 120"
• Maximum load capacity: 130 kg (286 lbs)
• VESA mounting range: 200 x 200 mm to 1200 x 800 mm
• Height adjustment range (screen centre): 1130 mm - 1630 mm
• Tilt adjustment: +/- 15°
• Orientation support: Landscape or portrait
• Cable management: Integrated
• Castor type: Heavy duty non-marking braked castors
• Security features: Security screws
• Installation type: Hook-on screen installation
• Optional accessory compatibility: Compatible with B-Tech BT8502 accessory shelf
• Finish: Powder coated

Tips

For added convenience, pair this trolley with the B-Tech BT8502 accessory shelf to hold AV equipment or a laptop. Ensure the floor surface is level and free of obstacles to maximise stability during movement. Regularly check the castor brakes and security screws to maintain safe operation.
